Product Details:
|
| Bag Size: | 40-80g／㎡ | Bag Length: | 160-420mm |
|---|---|---|---|
| Paper Weight: | 3000KG | Machine Speed: | 60-400pcs/min |
| Machine Total Weight: | 3000KG | Machine Dimension(WxLxH): | 2.1X4.5X1.9m |
| Name: | V Bottom Paper Bag Making Machine | ||
| Highlight: | High Speed Automatic Paper Bag Making Machine,Automatic Paper Bag Making Machine 160mm,420mm high speed paper bag making machine |
||

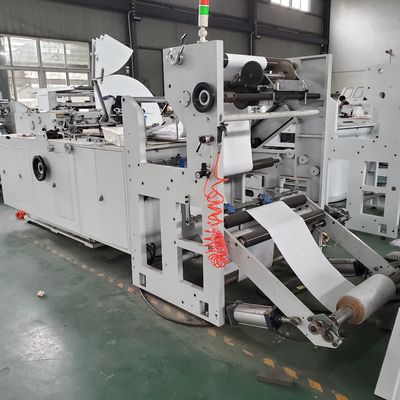

High Speed Sharp V Bottom Brown Paper Bag Machine food paper machinery for snack packing
| model | T-400 | T-650 |
| Paper weight | 40-80g／㎡ | 40-80g／㎡ |
| Bag length | 160-420mm | 220-650mm |
| Bag width | 70-260mm | 80-300mm |
| The width of paper roll | 260-720mm | 260-840mm |
| Machine speed | 60-400pcs/min | 60-400pcs/min |
| Paper bag insert | 20-120mm | 20-120mm |
| Machine power | 3.7kw | 3.7kw |
| Machine total weight | 3000KG | 4200KG |
| Machine dimension(WxLxH) | 2.1X4.5X1.9m | 2.1X5X2m |
Main Electrical Components Configuration
| Control System | |||
|
Name |
QTY |
Original |
Brand |
|
PLC motion controller |
1 | TAIWAN | DELTA |
|
Touch screen computer with human interface |
1 | TAIWAN | DELTA |
|
Servo Driver |
2 | CHINA | DONGCHEN |
|
Servo Motor Drive |
2 |
CHINA | DONGCHEN |
|
Color Code Tracking Photoelectric Eye |
1 |
CHINA |
SICK |
| Drive | |||
|
Name |
QTY(set) |
Original |
Brand |
|
Synchronous Wheel |
1 |
|
CHINA |
|
Synchronous Belt |
1 |
|
CHINA |
|
Bearing |
1 |
|
CHINA |
|
Guide Roller |
1 |
|
CHINA |
Note: When the equipment is upgraded or updated, the purchased parts used in this machine should be replaced with a brand of the same level that is not lower than the quality of the existing brand. The seller will reserve the right without further notice.
