Product Details:
|
| Name: | 6/8 Colors Plastic Film, Kfc, Kraft Paper, Roll Paper, Bag Flexo Printing Machinery For Plastic Film Paper Rolls With Ce | ||
|---|---|---|---|
| High Light: | haijing Flexographic Printing Machine 6 Color 300mm,haijing 8 Colors Flexographic Printing Machine 6 Color,haijing 900mm multi color flexo printing machine |
||

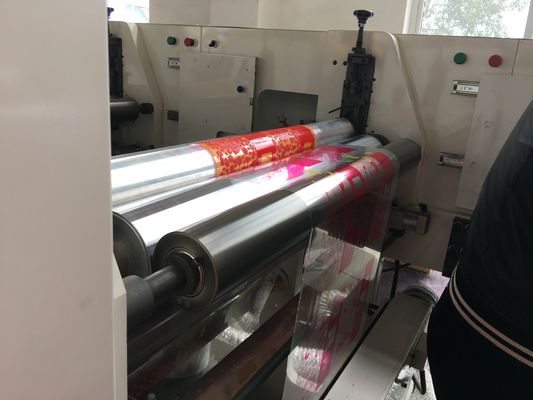

6/8 Colors Plastic Film, Kfc, Kraft Paper, Roll Paper, Bag Flexo Printing Machinery for plastic film paper rolls with ce
Features
Main Parameter:
| Model | Stack type | ||||
| Machine frame | Cast iron, 75mm thickness | ||||
| Machine drive | Timing belt drive, 5mm gear moudle (Japan bandong brand) | ||||
| Printing material | PE/PP/HDPE/LDPE/OPP/Plastic film....... Paper : 30-350g/m2, no over 800kg roll paper |
||||
| Printing color | 4/6/8color | ||||
| Max. Material Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm |
| Max. Printing length (repeat ) | 300-900mm | ||||
| Max. Mechanical speed | 110m/min (Actual speed depend on print material, plate, ink etc.) | ||||
| Max. Printing speed | 10-90m/min(Actual speed depend on print material, plate, ink etc. | ||||
| Register precision | Longitude:±0.20mm ; Transverse:±0.20mm | ||||
| Suitable Ink | Water-based ink or Oil-based ink | ||||
| Plate material | Resin or rubber plate material | ||||
| Thickness of Plate | 2.28mm ( or at your choice) | ||||
| Thickness of Glue | 0.38mm, German Tesa | ||||
| Master motor | 3.7Kw, Taiwan Taibang brand | ||||
| The frequency converter | 3.7KW , Taiwan delta brand | ||||
| Machine power | 30kw | ||||
| Cover Dimensions (m) | 5.4× 2.3× 3.0m | ||||
| Machine weight | Around 4500KGS | ||||
| Voltage | 380V, 50HZ, 3PHASE ( or at ur choice) | ||||
| Plate roller on the machine | 4pcs × 40cm ( plate roller with chromplate avoid rusting) | ||||
details
| Single unwind: | |
| Max. Unwind diameter: | Ø1200mm |
| Unwind way | Auto pneumatic loader, Automatic tension control, 1pcs with 10kg magnetic powder and brake |
| EPC system: | Edge Position Control, 1pcs (China Chongqing brand) |
| Unwind material holder | Air shaft 3'',1pcs |
| Axis core diameter | Φ76mm (inner diameter) |
|
Traction unit
|
|
| Constitution of Traction | Aluminum roller, chrome plated roller ( china wenzhou). |
| Traction Zone | 2 zones, unwind and rewind |
| Bearing | Japan NSK |
| One direction bearing | Germany ASNU |
|
printing unit
|
|
| Transmission between plate roller and anilox roller | helical gear |
| Max. Printing length (repeat ) | 300-1200mm |
| Press power | Mechanic control |
| Adjusting of Register | By manual |
| Printing roller lift up and down | Automatic hydraulic control print roller up and down |
| Anilox roll | Ceramic anilox roller |
| Inking Running way | Single side doctor blade |
| Ink transfer way | One-way diaphragm pump, Rubber roller |
| Inking motor | 60w |
|
Dry unit
|
|
| Drying model | Electric heating, bowing first then heating. |
| Blower Independent Heating | 1.5kw / 2pcs, shanghai |
|
Single rewind unit
|
|
| Max. Rewind diameter: | Ø1200mm |
| Unwind way | pneumatic unload for material |
| Rewind material holder | Air shaft 3'',1pcs |
| Axis core diameter | Φ76mm (inner diameter) |
Machine Also can made as client requirement.
Optional Spare part:
1. ceramic anilox roller ( japan murata)
2. printing cylinder
3. enclosed chamber doctor blade : improve machine speed to 120m/min
4. monitor inspect device
5. corona treatment (china and taiwan brand)
6. seal rubber for chamber
7. plate mounting machine
8. anilox roller cleaning machine
9. plate making machine
10.register color by motor ( left and right, up and down)
11. crane: manual or motor 2 kinds
etc.
ABOUT COMPANY:
Ruian Haijing Machinery Co.,Ltd is a professional Of Kinds Printing Machines and related products .
We Have Many Kinds Printing Machines, Normal Speed Printing Machine 50 meter/min , Middle Speed 80Meter/min and higher speed Printing Machine which Over 120M/MIN, 160M/MIN, 200M/MIN
Machine size: Standard size: 600-1200mm
also we can make 1500mm, 1800m,2000mm, 2400mm , 3200mm .
Offer your details , Make machines only belongs to you .
1) Good Quality , Well and timely Service, Competitive Price
2)Certificate : CE Certificate
3) One Year Warranty For Free, Long Life Service .
4) Tension Controller, EPC ,Ceramic Rollers,Doctor Blade.
5)Taiwan Motors
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
I'V never believe We are the best, But I will try to be the best for you
if you have any query, pls tell me freely. We will try our best to satisfy with you !
