Product Details:
|
| Name: | YT 2-450 Flexo Printing Machine | Colors: | 2 Colors |
|---|---|---|---|
| Material: | Film Rolls Paper Rolls Non Woven Paper Rolls | Certificate: | Ce |
| High Light: | Non Woven flexo graphic printing machine,2 Colors flexo graphic printing machine,10m/Min 2 colour flexo printing machine |
||

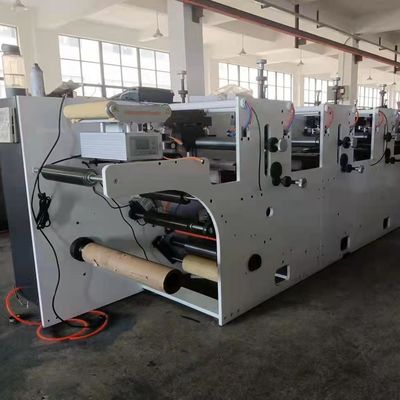

YT 2-450 Flexo printing machine for plastic film rolls non woven rolls and paper rolls
YT 2-450 Flexo printing machine
1.Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5. From left to right: coil feeding, printing, curing, slitting,winding a coherent completion .
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:
1 discharging
2 automatic constant tension
3 scraper
4.printing unit
5 traction
6 automatic constant tension
7 center receiving
2. Technical parameters
| Printed form | Flexo |
| Printing speed | 10m/min－100m/min |
| Mechanical speed | 10m/min--110m/min |
| Maximum width of substrate | 450mm |
| Printing width | 50-450mm |
| Printing circumference | 190.5-635mm |
| Plate thickness | 1.7/(special advance notice) |
| Anilox roller specifications | Φ85*450 |
| Aluminum guide rolle specifications | Φ70*450 |
| Printing bottom roller | Φ85*450 |
| Unwinding maximum diameter | Φ550 mm |
| Maximum winding diameter | Φ550 mm |
| Oven maximum temperature | 80℃ |
| Substrate core diameter | 74mm |
| Total power of the whole machine | 18KW |
| Drying heat source | electric heating |
| Machine weight | 2500KG |
| Dimensions | 3200(L) x 1300 (W) x 1200(H)mm |
| Body color | White (special advance notice) |
The machine configuration:
1. Unwinding device:
1) Single arm center roll up
2) Maximum diameter of unwinding: Φ550 mm
3) Inflatable shaft specification: 3
4) Number of inflation shafts: 1
5) Tension control range: 0-50kg/
6) Tension control range: 5KG,
7) Analog Correction System 1 set
2. Printing unit
1) Drive mode: geared motor drive, synchronous belt drive.
2) Printing plate shaft:
(1)Vertical color: manual
(2)Horizontal color: manual
(3) Overall composition: plate roll, scraper, ink tray, anilox roller.
(4)Scraper: It adopts one-way scraper. The material of the scraper is made of high-strength aluminum alloy profile, which is convenient and quick to load, unload and clean.
4． Drying device:
1) 2 color sets with infrared drying
2) The oven electric heating and fan intelligent control, the temperature inside the oven can be controlled.
5.Winding device
1) Winding method: One-arm center curl
2) Paper core installation method: Expansion shaft expansion 1
3) Inflatable shaft specification: 3”
4) Tension control: Fully automatic tension control
5) Winding tension range: 1-5KG/full width
6) Single winding diameter: Maximum Φ500mm.
4,supporting facilities (users are responsible for their own)
1,Power supply: 3-phase *380V*50HZ, three-phase west line system
2,air compressor: 1KW (1 set)
5,electrical list
| Category | Main technology | Product | Remarks | |
The power | Machine power main | 4.5KW 380V | China Shanghai | Total 1 |
| UV | 4.7KW | China GuangDong | 2 groups | |
| Electrical appliances | ZHENGTAI | |||
| Ink roller moto | 60W 220V AC | China Shanghai | 2 groups | |
| Total power | About 18 KW | |||
| Unwinding | PLC control Magnetic powder brake | RUIAN Haitai | Torque: 50 Nm | |
| Discharge traction | PLC control Magnetic powder brake | Torque: 2.5 Nm | ||
| Color group | The temperature controller controls the oven temperature at a constant temperature. Delay control of the ink roller and the mesh roller to achieve a more reasonable requirement for the homogenization.
|
| ||
Rolling
| Rolling center | |||
| PLC | China XINJIE | 1 set | ||
| Touch screen | 7 inch | China XINJIE | 1 set | |
| The print roll | Specification optional | 2 Article | ||
| Ceramic anilox roller | Specification optional | 2 Article |
6.The price
| Product | 2-450 Flexo printing machine |
| Quotation |
