Product Details:
|
| Printed Form: | Flexo | Printing Speed: | 10m/min-80m/min |
|---|---|---|---|
| Mechanical Speed: | 10m/min-100m/min | Maximum Width Of Substrate: | 320mm |
| Printing Width: | 50-320mm | Printing Circumference: | 190.5-635mm |
| Anilox Roller Specifications: | Φ85*350 | ||
| Highlight: | haijing 320mm High Speed Flexo Printing Machine,haijing 10m/Min High Speed Flexo Printing Machine,haijing 80m/Min flexo label printing machine |
||

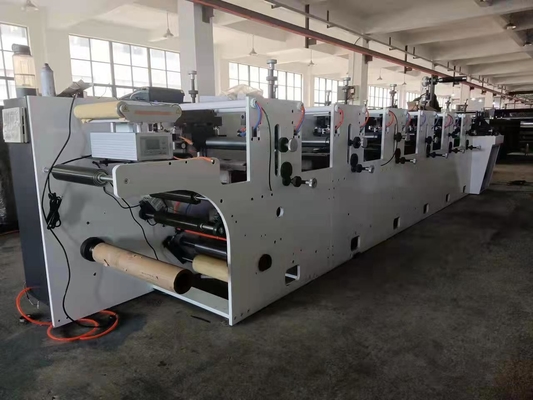

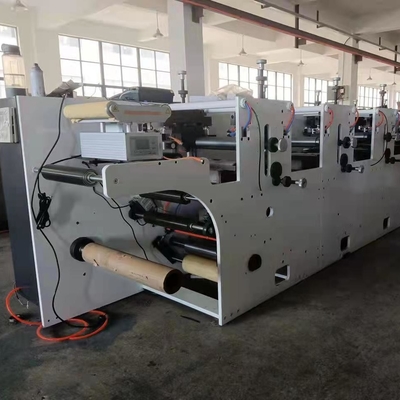

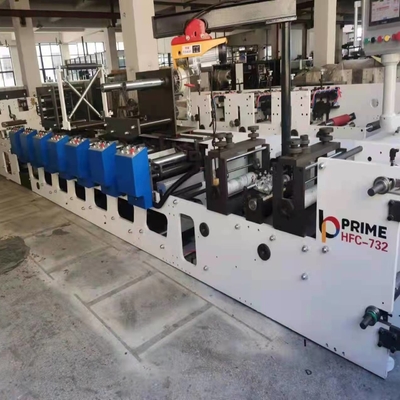

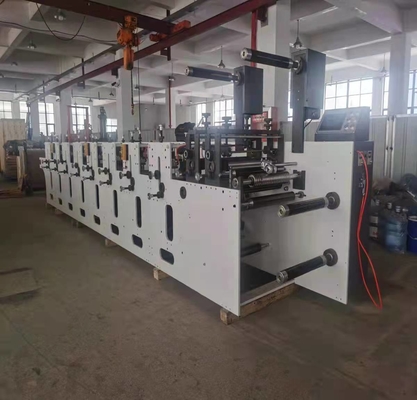

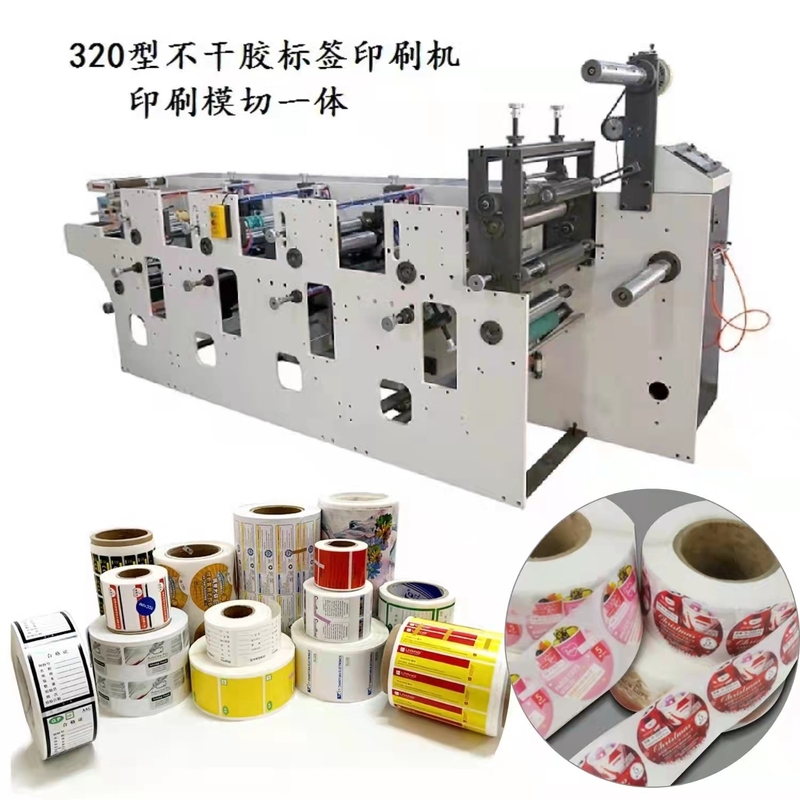

YT 3-320 uv Flexo printing machine for plastic film rolls paper rolls woven rolls
Technical parameters
|
Printed form |
Flexo |
| Printing speed | 10m/min－80m/min |
| Mechanical speed | 10m/min-100m/min |
| Maximum width of substrate | 320mm |
| Printing width | 50-320mm |
| Printing circumference | 190.5-635mm |
| Plate thickness | 1.7/ 2.28mm(special advance notice) |
| Anilox roller specifications | Φ85*350 |
| Aluminum guide roller specifications | Φ70*350 |
| Printing bottom roller | Φ85*350 |
| Unwinding maximum diameter | Φ550 mm |
| Maximum winding diameter | Φ550 mm |
| Oven maximum temperature | 80℃ |
| Substrate core diameter | 74mm |
| Total power of the whole machine | 22KW |
| Drying heat source | electric heating |
| Machine weight | 2000KG |
| Dimensions | 4100(L) x 1200 (W) x 1200(H)mm |
| Body color | White (special advance notice) |
Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5. From left to right: coil feeding, printing, UV curing, film cutting, laminating, slitting,winding a coherent completion
6. Water-based ink(UV) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving
The machine configuration:
1. Unwinding device:
1) Single arm center roll up
2) Maximum diameter of unwinding: Φ500 mm
3) Inflatable shaft specification: 3”
4) Inflatable shaft specification: 1
5) Tension control range: 0-50kg/
6) Tension control range: 5KG
7) Analog Correction System 1 set
2. Printing unit
1) Drive mode: geared motor drive, synchronous belt drive.
2) Printing plate shaft:
(1) Vertical color: manual
(2) Horizontal color: manual
3)Overall composition: plate roll, scraper, ink tray, anilox roller.
4)Scraper: It adopts one-way scraper. The material of the scraper is made of high-strength aluminum alloy profile, which is convenient and quick to load, unload and clean.
4． Drying device:
1) +uv Each color group is equipped with strong wind+UV
2) The oven electric heating and fan intelligent control, the temperature inside the oven can be controlled.
5．Winding device
1) Winding method: One-arm center curl
2) Paper core installation method: Expansion shaft expansion 1
3) Inflatable shaft specification: 3”
4) Tension control: Fully automatic tension control
5) Winding tension range: 1-5KG/full width
6) Single winding diameter: Maximum Φ500mm.
supporting facilities (users are responsible for their own)
1,380V*50HZ
Power supply: 3-phase *380V*50HZ, three-phase west line system
2,air compressor: 1KW (1 set)
electrical list
|
The power |
Machine power main | 7.5KW 380V | shanghai | Total 1 |
|
Heating |
4.7KW/set | UV | 3 groups | |
| 120W wind source | 3 groups | |||
| Electrical appliances | Schneider | |||
| Ink roller moto | 60W 220V AC | China Shanghai | 3 groups | |
| Total power | About 22 KW | |||
| Unwinding | PLC control Magnetic powder brake | RUIAN Haitai | Torque: 50 Nm | |
| Discharge traction | PLC control Magnetic powder brake | Torque: 2.5 Nm | ||
|
Color group |
The temperature controller controls the oven temperature at a constant temperature. Delay control of the ink roller and the mesh roller to achieve a more reasonable requirement for the homogenization.
|
|
||
|
Rolling
|
Rolling center |
|||
| PLC | China XINJIE | 1 set | ||
| Rectifying device | China KESAI | 1 set | ||
| The print roll | Specification optional | 3 Article | ||
| Touch screen | 7 inch | China XINJIE | 1 set |
The price
| Product | YT 3-320 UV Flexo printing machine |
| Quotation | |
| port |
 |

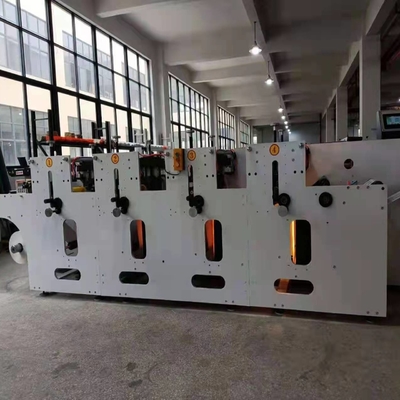

Printing group |
|
Rectifying device
|
|
Led cabinet |
|
Led Curing group |
|
Control panel |
320mm High Speed Flexo Printing Machine 10m/Min-80m/Min non woven fabric woven pe coating paper pla paper rolls film
