Product Details:
|
| Type: | Slitting Rewinder,Paper Cutting Machine,paper Slitting Machine,hot Stamping Foil Cutter,Laminating Machine | Name: | Paper Film Laminated Film Flexible Packaging Film Aluminum Foil Slitting Rewinding Machine |
|---|---|---|---|
| Dimension(l*w*h): | 2800*2200*1500mm | Condition: | New |
| Voltage: | 220V/380V | Weight: | 3.5T |
| Warranty: | 2 Years | Computerized: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Power(w): | 3.7KW |
| Product Name: | Paper Slitting Machine,slitter Rewinder Machine Paper Roll Cutting/slitting Machine,label Slitting And Rewinding Machine,Fabric Label Bopp Tape Thermal Paper Slitting Machine Price,SG-H500 Paper Creasing Machinery/paper Creasing | Speed: | 120m/min |
| Color: | As Customer's Requirements | Function: | Slitting Rewinding JUMBO Paper Roll,Slitting Rewinder |
| Machine Type: | Precise Slitting Rewinder,Slitter Material With Small Roll,Small Paper Making Machine | Cutting Speed: | 20-200times/min |
| Rewind Core Diameter: | 12.7 | Slitting Width: | Adjustable Width Maximum 900mm |
| Power: | Electricity | ||
| Highlight: | Kraft Paper Slitting Rewinder Machine,Slitting Rewinder Machine 10m/Min,1200mm kraft paper slitting machine |
||

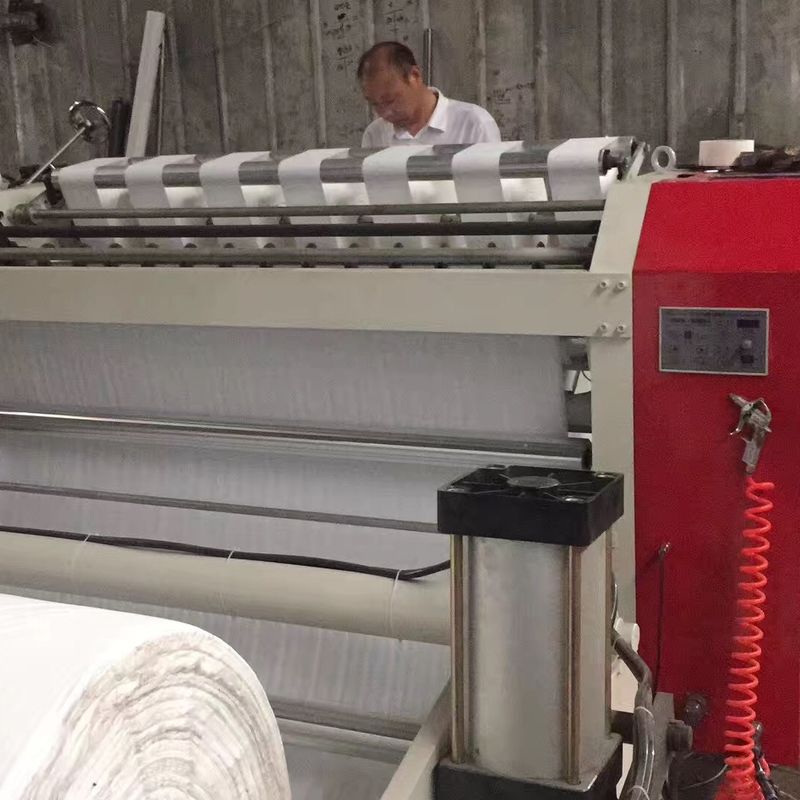

1300/1600 SERVO DRIVE HIGH SPEED SLITTING REWINDING MACHINE FOR FILM, LABEL, PAPER, STAMPING FOIL, ALUMINUM FOIL
Uses:
The machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, optical materials, film roll, , aluminum foil, film and paper rolls, of printing of various materials, from 10 ~ 500 Micron Thickness.
1. Full servo motors controlled for rewinders, traction
2. Unwinder uses shaftless auto loader, hydraulic loading system
3. Rewinders uses Pneumatic friction shafts
4. Ultrasonic sensor for checking rewinder diameter, give more exactly tension
5. Max.working speed 500m/min
Parameters:
| Max. Width of jumbo rolls | 1300mm/1600mm |
| Max.Diameter of unwinder | Φ1200mm |
| Max.Diameter of rewinder | Φ600mm |
| Diameter of Unwinder paper core | 3'' and 6" |
| Diameter of Rewinder paper core | 3" (6'' optional) |
| Mechanical Slitting speed | 10-500m/min |
| Tolerance of EPC | ≤0.1mm |
| Min. width of rewinder rolls | 50mm |
| Total power | 15KW |
| Weight | 7500Kg |
| Overall dimension (L xWxH) | 4.3mx4.8mx1.9m |
Optional devices:
1. Auto push device in rewinder parts
2, Rewinder rolls with 6inch rings
3, Trimming rewinder machine for blowing waste film
4, Unload discharge rack change to automatic type
