Product Details:
|
| Type: | Paper Slitting Machine | Dimension(l*w*h): | 2150*2600*1400mm(L*W*H) |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Weight: | 2.8 Ton | Warranty: | 2 Years |
| Computerized: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation |
| Power(w): | 5kw | Product Name: | Paper Slitting Machine,slitter Rewinder Machine Paper Roll Cutting/slitting Machine |
| Speed: | 120m/min | Color: | White |
| Function: | 6micron Pure Aluminum Slitter Rewinder Machine The Machine Applies To Slit Pure Aluminum, PET, OPP, CPP, PE, PS, PVC And Computer Security Labels, Electronic Computers, Optical Materials, Film Roll, Foil Roll, Laminated Film, All Kinds Of Paper Rolls, Film | ||
| Highlight: | 600m/Min aluminum foil slitting machine,aluminum foil slitting machine PET,OPP aluminum foil roll cutting machine |
||
6micron Pure Aluminum Slitter Rewinder Machine
The machine applies to slit Pure aluminum, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, laminated film, all kinds of paper rolls, film and printing of various materials.,etc
Features:
1, Max. working speed 600m/min;
2, total 4 servo motors control
3, auto close-loop tension system for unwinder
4, automatic air pressure system for rewinder
5, good import brands of electric parts for webguide, motor, PLC etc.
6. Unwinder shaftless type
7, Rewinder uses pneumatic friction shafts
Technical Parameters:
| Jumbo roll width | 1300mm |
| Diameter of roll | Ø1000mm |
| Diameter of rewinding | Ø600mm |
| Inner diameter of paper core | 3'(optional:6'') |
| Slitting speed | 10-600m/min |
| Tolerance of EPC | ≤0.1mm |
| Min.width of produce | 50mm |
| Total power | 30KW |
| Weight | 6500Kg |
| overall dimension (L X W X H) | 2200mm x 4500mm x 1840mm |

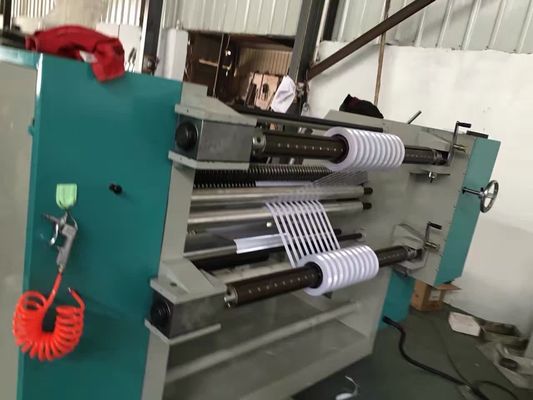

Machine photos:
