Product Details:
|
| Condition: | New | Warranty: | 2 Year |
|---|---|---|---|
| Computerized: | Automatic Sheet-feeding Hand Paper Bag Making Machine | Machine Type: | Bag Forming Machine |
| Voltage: | 380V/220V | Material: | Paper,Plastic |
| Bag Type: | Cement Bag | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power(w): | 5kw | Speed: | 60pcs/min |
| Product Name: | CBM-900 Kraft Paper Cement Filling Bag Making Machine,Paper Bag Machine | Application: | Products Packed |
| Name: | Roll Feeding Square | Color: | Customer Requirement |
| Type: | Paper Bag Making Machine | Processing Type: | Bag Sealing And Cutting Machine |
| Bag Length: | 100mm To 800mm | ||
| Highlight: | Plastic paper tube making machine,paper tube making machine 220V,60 Pcs/Min plastic pipe making machine |
||

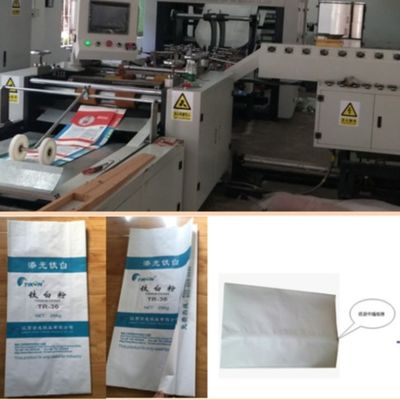

Paper Plastic Fabric Tube Making Machine for cement paper bag packing
Bag making capacity 30—80 pcs/ min
Bag making width(mm) 350—600 mm
Bag making length(mm) 500—1200 mm( PLC programming control system and touch screen set, Servo set length,if have color code, can cutting by tracking color code)
"M " fold width(mm) 70—150 (the M forming board can be load and unload according to customer require )
Paper layer:1—4 layer
One set of puncture device
Raw material diameter (mm) φ1200×1250 mm
typographical mark,cutter tracking Cutting by track printing mark
Tracking precision ±1mm
Control manner color LCD touch screen control
Power(KW) 45 KW
Dimensions (mm) 14500×2300×1900(mm)
B,Tuber Basic Unit:
Unwinder units: 4
Central sealing unit
Staight & Folding side bag tube shaping
Precision rotary cut system
Automatic counting
Photoelectric sensor
Adjustable collecting table
Rubber wheel draging and pressing unit
| Other Clauses |
Payment:T/T, 40% deposit to start production+60% balance before shipment
Delivery Time: 45 days after receiving deposit
Warranty:12 months after installing
Installing and Training: Providing
Installation&Commissioning (1-2 person):The round-trip flight tickets, accommodation & traffic expenses and service fees at USD 70/day for the technician shall be borne by the buyer.(All the material for machine testing should be prepared before commissioning).
Date:MAR 26th ,2022 Quotation valid time: 30 days
optional
Max Printing colors:4
Rollers:printing roller,anilox roller,ink roller,paper passing roller Each printing rollers group can be independent controlled
Printing Width:1160mm
Printing Length:300-1000mm
Power(KW) 48 KW
Dimensions (mm) 9050×2200×2300
Automatic stir the ink in standby model
Printing ink heating and drying part
Four-Colors Printing Machine with Rolling device.
This printing machine can also work with the Tube making machine as one Line.
