Product Details:
|
| Voltage: | 380V/220V 50HZ | Material: | Paper,PE. HDPE. LDPE |
|---|---|---|---|
| Weight: | 1300KG | Dimension(l*w*h): | 10000X2600X2000MM |
| Warranty: | One Year | Computerized: | Yes |
| Power(w): | 12kw | ||
| Highlight: | High Speed paper shopping bag making machine with flat handle,paper shopping bag making machine with flat handle PE,HDPE food paper bag making machine |
||

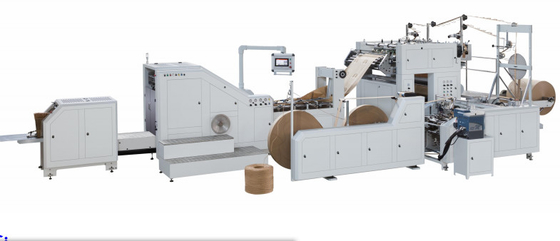

automatic square bottom paper bag machine use paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
The whole machine is controlled by computer central control system,touch screen display,servo motor control paper bag length,can produce multiple specifications of paper bag.
food paper bag making machine
bakery paper bag machine
bag making machine
food machinery
paper machinery
MAIN PARAMETERSMAIN PRODUCTS
|
Model
|
220
|
330
|
400
|
550
|
|
Paper bag length
(Cutting length) |
191-430mm
|
280-510mm
|
280-600mm
|
380-770mm
|
|
Paper bag width
|
80-220mm
|
150-330mm
|
150-400mm
|
220-550mm
|
|
Paper bag
bottom width |
50-120mm
|
70-180mm
|
90-200mm
|
100-210mm
|
|
Paper thickness
|
45-130g/m2
|
60-150g/m2
|
70-150g/m2
|
80-150g/m2
|
|
Paper roll width
|
290-710mm
|
470-1000mm
|
510-1230mm
|
630-1550mm
|
|
Roll paper diameter
|
1300mm
|
1300mm
|
1300mm
|
1300mm
|
|
Machine MAX Speed
|
250pcs/min
|
200pcs/min
|
200pcs/min
|
150pcs/min
|
|
Paper bag speed
|
100-200 pcs/min
|
100-160 pcs/min
|
100-160 pcs/min
|
100-150 pcs/min
|
|
Machine power
|
380V
3 Phase 9kw |
380V
3 Phase 11kw |
380V
3 Phase 15.5kw |
380V
3 Phase 18.8kw |
|
Machine weight
|
5600kg
|
8000kg
|
9000kg
|
11000kg
|
|
Machine size
|
8600×2600×1900 mm
|
9500×2600×1900 mm
|
10700×2600×1900 mm
|
13000×2600×2000 mm
|
