Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 6.5T |
|---|---|---|---|
| Warranty: | 3 Years | Color: | Standard Konform Green Color Or According To Customer's Requirement |
| Certification: | CE/ISO9001 | Type: | Automatic Electric |
| Application: | Mesh Fence/construction | Name: | Aluminum Extrusion Machinery For Flat Wire And Conductor |
| Product Name: | Best Price Electric Steel Automatic Wire Mesh Welding Machine In Rolls | Power: | 50HZ Or Customized |
| Control System: | Computer Servo Motor | Voltage: | 220V/380V/440V/415V |
| Usage: | Manufacture Al Sector Conductor And Profile | Wire Diameter: | 0.45-2.6mm |
| Highlight: | haijing Aluminum Film cardboard embossing machine,haijing Laminating cardboard embossing machine,haijing CE Cardboard Laminating Machine |
||
1. Description:
Gold and silver cardboard production equipment designed and manufactured to suit modern domestic gold and silver cardboard, laser materials, tobacco and wine packaging materials. The multifunctional machine with the functions of unwinding, gluing, coloring, hot air drying and winding is centralized controlled by imported PLC and controlled by touch screen. At present, the most perfect technology, the most complete function and the most advanced control technology in China are the ideal gold card paper composite equipment.
2. Main Technician Specification:
| 1 | Max.unwinding diameters | Φ1500mm |
| 2 | Laminating width | 600-1200mm |
| 3 | Paper core diameters | 3″,6″,12″ |
| 4 | Laminating Film Max.Diameter | 3″ |
| 5 | Film Unwinding Core | 3″ |
| 6 | Max.Diameter Rewinding Roller | φ1500mm |
| 7 | Rewinding Core | 12 |
| 8 | Roller Width | 1300mm |
| 9 | Paper thickness | 40~400gsm |
| 10 | Film material thickness | 0.001~0.06mm |
| 11 | Heating oven | 12.5mm |
| 12 | Max.speed | 120m/min |
| 13 | Total power | 112kw |
| 14 | Overall dimension | 22.5x2.8x3.2m |
3. Standard Equipment:
4. Main parts origin list
| Name | QTY | Unit | Original Brand |
| Hydraulic System | 1 | set | TAIWAN |
| Unwinding Brake 10KG | 2 | pcs | CHINA |
| Edge Position | 1 | set | CHINA |
| Tension Controller 10KG | 1 | pcs | CHINA |
| Film Unwinding Tension | 1 | pcs | CHINA |
| Coating motor | 1 | pcs | CHINA |
| Coating Frequency 0.75KW | 1 | pcs | CHINA |
| Main Motor 3.0KW | 1 | pcs | CHINA |
| Main Frequency 3.7KW | 1 | pcs | CHINA |
| Scrap Motor | 1 | pcs | CHINA |
| Plate Roller Motor | 1 | pcs | CHINA |
| Plate Roller Frequency | 1 | pcs | CHINA |
| Color Pump(Air) | 1 | pcs | CHINA |
| Over-heating Motor | 4 | Pcs | CHINA |
| Oven Discard Motor | 1 | Pcs | CHINA |
| Back Cooling Motor | 1 | Pcs | CHINA |
| Back Tow Motor 3.0KW | 1 | Pcs | CHINA |
| Back Tow Frequency 3.7KW | 1 | Pcs | CHINA |
| Rewinding Motor5.5KW | 2 | Pcs | CHINA |
| Rewinding Frequency 5.5KW | 2 | Pcs | CHINA |
| Hydraulic Delivery System | 1 | Pcs | CHINA |
| PLC | 1 | Pcs | JAPAN |
| HIM 10Inch | 1 | Pcs | CHINA |
Production photoes:

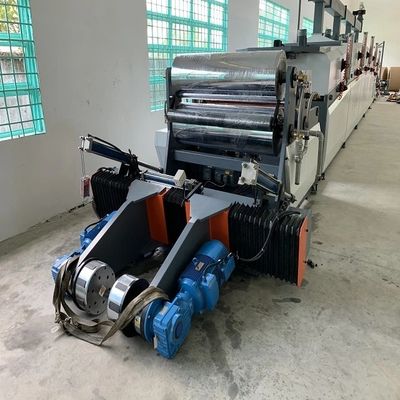

Machine photoes:
