Product Details:
|
| Machine Type: | Bag Forming Machine,non Woven Shopping Bag Making Machine | Voltage: | 380V/220V |
|---|---|---|---|
| Dimension(l*w*h): | 6500*2000*1900mm | Bag Type: | Shopping Bag,flat Bag |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE |
| Condition: | New | ||
| Highlight: | Paper Carry Bag Making Machine Fully Automatic,380V Paper Carry Bag Making Machine,220V twisted paper handle making machine |
||

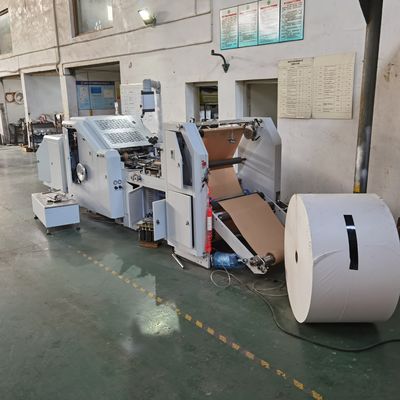

LSB-330-R Fully Automatic Roll Fed Twisted Handle Paper Bag Machine
This machine is designed to manufacture square bottom paper bags with twisted handle from paper roll, paper patch roll and paper rope. YASKAWA PLC Control system imported from Japan and adjustable dual-moulds structure, ensure that the machine can perform quickly and stably, as well as reduce adjusting time for different bag sizes. Front bags collection platform and counting function, improve packing efficiency of paper bags packing. By implementing steps including handle making. handle application, tube forming, tube cutting, and bottom forming with a fully automatic process. That is especially suitable for foodstuff, clothing and luxury branding products.
Main Technical Parameter (see picture above)
|
Type |
HJ-330-R | |||||||
|
(W) Bag Width |
130-330 mm | |||||||
|
(H) Bottom Size |
70-180 mm | |||||||
|
(C) Cutting Length |
270-530 mm (No handle) |
270-430 mm (With handle) |
||||||
|
(L) Bag Length |
L=C－(H÷2＋15~25) | |||||||
|
Max. Speed |
180 pcs/min | |||||||
|
Paper Roll Width |
400-1050 mm | |||||||
|
Max. reel weight |
600 Kg | |||||||
|
Max.Roll Diametr |
1200 mm | |||||||
|
Reel inner diameter |
76 mm | |||||||
|
Paper specification |
60-170 gsm | |||||||
|
Handle Rope Height |
100 mm | |||||||
|
Handle Rope Diameter |
4-6 mm | |||||||
|
Paper rope spacing |
Optional |
57.2 mm |
63.5 mm |
76.2 mm |
79.4 mm |
95.3 mm |
111.1 mm |
|
|
Handle Patch Length |
114.3 mm |
127 mm |
152.4 mm |
158.8 mm |
190.5 mm |
222.3 mm |
||
|
Handle Patch Width |
40-50 mm | |||||||
|
Paper Patch Roll Diameter |
1200 mm | |||||||
|
Paper Patch Roll Width |
80-100 mm | |||||||
|
Paper Patch Thickness |
100-150 gsm | |||||||
|
Web edge control system |
Double photoelectric automatic correction control system |
|||||||
|
Web tension control system |
automatic constant tension control system |
|||||||
|
Air pressure |
≥0.12cmm, 0.6~1.2Mpa | |||||||
|
Driven motor |
Seven servo motors | |||||||
|
Electric |
380V, 50Hz, 3 phase | |||||||
|
Power |
30 KW | |||||||
|
Weight |
13700 Kg | |||||||
|
Overall dimension(L×W×H) |
12200×5700×2500 mm | |||||||
