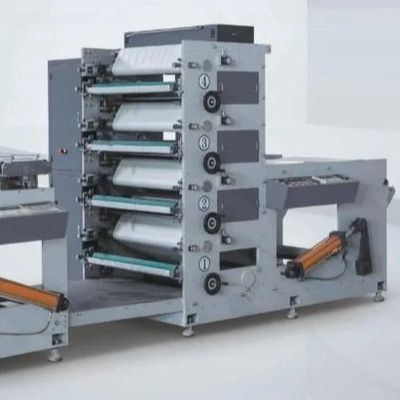

New Design Flexo Roll Paper Printing Machine

Narrow Web Flexo Printing Machine for label sticker

Main equipments of 1-6 colour Narrow Web Bag Flexo label printer Printing Machine:

1. The main motor is equipped with a frequency conversion stepless speed regulation device imported from Japan. This device can reduce mechanical shock and power consumption, thus prolonging machine’s lifespan and reducing operating cost.

2. Winding and unwinding are controlled by magnetic brake and clutch.

3. Unwind tension controller is Japan’s Mitsubishi automatic tension controller. This guarantees stable and reliable winding and unwinding.

4. The anilox roll has strong resistance to abrasion and corrosion, thus having a long lifespan. This frees users from the troubling of regularly replacing the rolls. When the printing of one color and the 360°circular register regulation is adopted. Each printing unit can be taken apart and used independently.

5. It is equipped with a drying device which enables the ink to rapidly condense to avoid ink blurring or shedding and brings convenience to the cutting operation of the printed products.

6. Customers can choose to install infrared or UV drying device. They can also specify the color of the equipment.

7. The flexographic printing machine is equipped with a deviation correction sensor which can automatically control the material feeding device and make the printing accurate and stable.

Sticker/Label/Paper/Tape Narrow Web Flexo Printing Machine

1.The main motor adopts imported stepless frequency control.
2,Feeding and discharging device are controlled through magnetic powder brake and clutch (Japanese Mitsbish aut tension controller).
3,Adopt ceramic mesh distrnic mesh distributor roller,which is durable,wear proof,corrosion resistance.It is favorable to reduce the replacement frequency of mesh roller and improve the printing efficiency.
4,The printing unit can register in 360degress;each printing unit can mesh roller and improve the printing efficiency.
5,Every printing unit equipped with a group of infrared dryers respectively.
6,The redding and discharging device use air-expansion core shaft.
7,The inking roller can automatically fall off at stoppage and ratate at low speed in order to keep the ink from being dry and solid.
8,The roll feeding,printing,polishing,auto infrated drying,laminating and rolling can be processed in one processing.

9.It features wide application,pollution-free of printing ink,high economic benefit,and high printing speed.So it is an ideal printing machine for the commercial bill,paper card,and high-class free adhesive label.

Machine Parameter
