Product Details:
|
| Type: | Slitting Rewinder,Paper Cutting Machine,paper Slitting Machine,hot Stamping Foil Cutter,Laminating Machine | Dimension(l*w*h): | Subject To The Line |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Weight: | 3.5T | Warranty: | 12 Months |
| Computerized: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation |
| Power(w): | 3KW | Product Name: | Paper Slitting Machine,slitter Rewinder Machine Paper Roll Cutting/slitting Machine,label Slitting And Rewinding Machine,Fabric Label Bopp Tape Thermal Paper Slitting Machine Price,SG-H500 Paper Creasing Machinery/paper Creasing |
| Speed: | 120m/min | Color: | Gray |
| Function: | Slitting Rewinding JUMBO Paper Roll,Slitting Rewinder | ||
| Highlight: | Aluminum Foil automatic slitting and rewinding machine,automatic slitting and rewinding machine 350m/Min,Silicon Paper slitting and rewinding equipment |
||
Introduction:

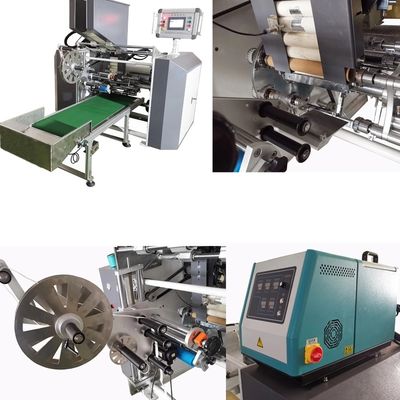

Automatic aluminum foil and baking paper rewinding machine, it is controlled by a PLC microcomputer, adopts 4 motors, 2 servos, 2 frquency inverter. Can rewinder from 1m to 150m. 6 shafts automatic changes without stop, automatic spraying hot melt glue and automatic labling.
Specification
| Max Machnical Speed | 350m/min |
| Main motor | 4kw |
| Air pressure | 0.5Mpa |
| change motor and gear reducer | 550W |
| Sticker motor | Servo motor 750W |
| Invertor | Teco , Taiwan |
| PLC | Schneider,France |
| Touch screen | Schneider,France |
| Hotmelt glue machine | China famous brand |
| Unwind and rewind tension | Automatic tension |
| Auto count meter | By encoder |
| Material finish function | Automatic machine stop |
| Weight | 1600kg |
| Installing dimension (LXWXH) | 3500*1800*2100mm |
