80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet

80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet
80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet

Large Image :  80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet

Product Details:
Place of Origin: RUIAN
Brand Name: haijing
Certification: CE
Model Number: HJ-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 7
Packaging Details: WOODEN CASE
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 88
Contact Now

80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet

Description
Type: Full Computerized High Speed Flexo Printing Machine Usage: Paper Printer
Weight: 1500kgs Dimensions(l*w*h): 4800*2300*2400mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Gross Power: 12.5kw
Warranty: 1 Year Printing Speed: Max 80m/min
Certification: CE,CE ISO SGS Product Name: 620mm Paper Drinking Straw Roll Flexo Printing Machine
Machine Type: 1200mm/1400mm/1600mm
Highlight:

80m/Min Digital Flexo Printing Machine

,

Digital Flexo Printing Machine 4 Colors

,

22 Colors sheet fed flexo printing machine

Spo Automatic 4-22 Colors Oval Silk Screen Printer for Shoe Face Clothes PVC Sheet





Product Description



Description:

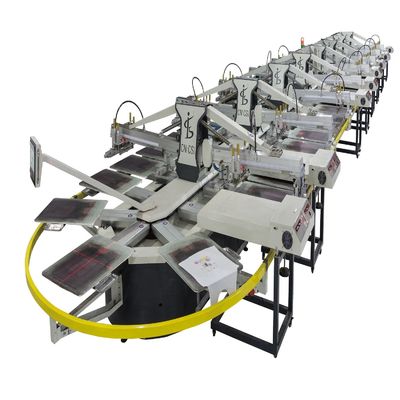

Oval type automatic Screen printing machine is based on rotary screen printing machines,its performance and printing process is very well.The machine adopts modular design, high-strength aluminum alloy structure, the main rotation system adopt high-precision servo drive to assure the fast and stable operation,with the features of accurate printing, reliable performance, easy operation. Suitable for water-based ink, plastisol ink, Solvent ink and other printing processes, standardly configurated with flocking function.It's best for pieces and various garment printing, and also flocking processing.

Control system:
1.Man-Machine interface and PLC system ,self-diagnosis.
2.Language can be exchanged between Chinese and English by Touch screen , and the help simplifies the process of operation and training.
3.Real-time display of production speed to more clearly control the operating costs.
4.four operation modes: match mode, preheat platen, automatic cycle, single cycle.
Printing platen:
1.Adopt the high strength and high-temperature resisting aerospace aluminum plate
2.Installing and replace is very rapid.
Printing station:
1.Each station can be controlled individually and be operated work or stop easily,also can control the entire equipment ON/OFF.
2.The speed and pressure of squeegee is independently adjustable.
3.Floodbar and squeegee can be fixed and took off without any tools.
4.The stop position of print head can be set freely;
5.AC drive system, stepless speed regulation.
6.Screw adjust position, accuracy±0.05mm
7.Printing times and route can be set free.
Rotating System:
1.Servomotor drive, running precise, high-speed, stable.
2.Multiple speed can be customized according to user demand.
3.Forward and reverse.
Module Expansion:
1.Customers buy the printing machine with the suitable numbers of stations according to demand.
2.For further needs,you can quickly and easily enlarge the machine in every two-station units.
Design & Construction:
1.High-strength, high-precision alloy aluminum structure,simple,lightweight,stable and secure;Enclosed stainless steel countertops ensures the safe operation and easy clean.
2.Modular design makes the site installation quick and future expansion easy.

Technical Specification:
Model O-6/24 O-16/54
Print Color 6 16
Stations 24 54
Max Print Area 500*700mm 500*700mm
Max Frame Size 700*900mm 700*900mm
Air Consumption 0.6mpa/0.8mpa 0.6mpa/0.8mpa
Main Motor Power 1.5KW 1.5KW
Each Print Motor Power 0.4KW 0.4KW
Totally power 4.5KW 8.2KW
Max.Speed 1500pcs/h
Voltage 380V/3PH/50HZ 380V/3PH/50HZ
Dimension 91680*3560*1680mm 24600*3560*1680mm
Weight 3300KGS 5800KGS





80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 0




80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet 1
