Product Details:
|
| Type: | Slitting Rewinder,Paper Cutting Machine,paper Slitting Machine,hot Stamping Foil Cutter,Laminating Machine | Dimension(l*w*h): | Subject To The Line,2800*2200*1500mm |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Weight: | 1500kg | Warranty: | 1 Year |
| Computerized: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation |
| Highlight: | Rotary Die Cutting Blade,Metal Cutting Slitting Round Blades,Copper Aluminum Foil Slitting Round Blades |
||

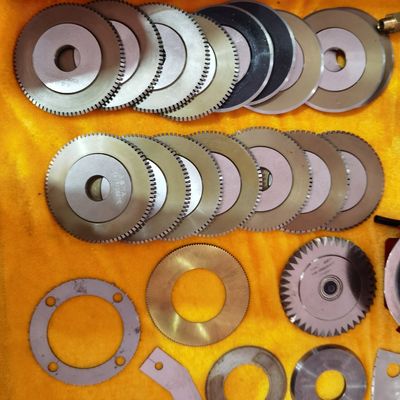

Rotary Die cutting Blade metal cutting slitting blade
| Specifications |
Customized
|
| Material |
Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on
|
| Advantage |
Burr-free, Widely Applied
|
| Thickness |
0.8-1.5mm, Customized thickness available
|
| Inner diameter |
25.4, 32, 38mm
|
| Outer diameter |
OD160 - 610mm, customized size is available
|
| Knife edge |
45 °,could be adjusted according to your requirement
|
| Design |
single edge and double edge are available
|
| Appliacation |
Paper, film, foam, rubber,foil, graphite and so on
|
|
Standard size( Customized size is available)
|
|||||
| Specification | Outer diameter | Inner diameter | Thickness | Knife edge type | Material |
| Disc type knife | |||||
| 75x45x1.2 | Φ75 | Φ45 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 90x60x1.2 | Φ90 | Φ60 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 105x70x1.2 | Φ105 | Φ70 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 105x75x1.2 | Φ105 | Φ75 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 110x75x1.2 | Φ110 | Φ75 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| Flat round knife | |||||
| 80x40x1.0 | Φ80 | Φ40 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
| 90x60x1.0 | Φ90 | Φ60 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
| 120x40x1.0 | Φ120 | Φ40 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
|
half cut-off slitting knife
|
|||||
| 70x50x1.0 | Φ70 | Φ50 | 1.0T | double side | YG12/SKH-51 |
| 80x50x1.0 | Φ80 | Φ50 | 1.0T | double side | YG12/SKH-51 |
| 100x60x1.0 | Φ100 | Φ60 | 1.0T | double side | SKH-51 |
high-precision grinding equipment and testing equipment which are used in processes from raw material
to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
