Product Details:
|
| Condition: | New | Application: | Film |
|---|---|---|---|
| Plastic Processed: | PE | Screw Design: | Single-screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Free Spare Parts | Voltage: | 380V 50HZ 3Phase(Customized) |
| Automatic Grade: | Automatic | Power(w): | 11-110KW |
| Weight: | 18T | Dimension(l*w*h): | 10*8*3M |
| Warranty: | More Than 5 Years | Processing Type: | Extruding Machine,Extruded Machine |
| Highlight: | Plastic Rotary Device Film Blowing Machine,PP Poly Film Extruder Machine,Polypropylene Die Head Film Blowing Machine |
||
USE:
It is suitable for blowing polyethylene(PP) and also for blowing high and low density polyethylene(LDPE), which are widely used for packing food, garments, textile, daily necessaries and industrial products etc.
Characteristics:
The cylinder and the screw stems of extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

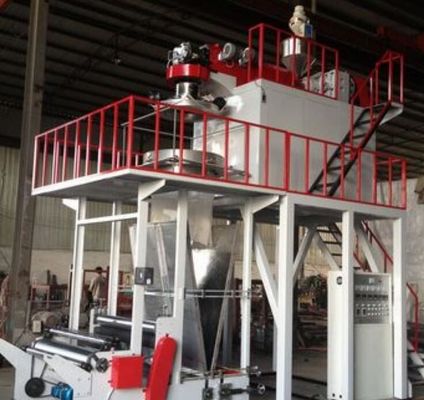

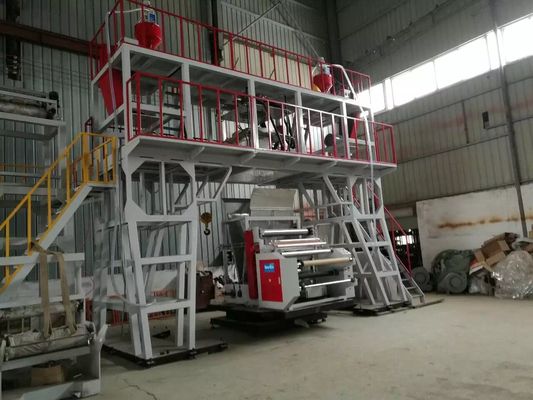

The extruder can be lift up to 3 meters according to the technological requirements. Mode of film blowing: down blowing. The coiling unit adopts torque motor to keep proper tension and make rolling tidy and roll-changing easy.
Please contact the salesperson for the latest quotation and machine configurations.
| Model | PP-55/FM600 | PP-60/FM700 | PP-65/FM800 |
| Screw Diameter | 55mm | 60mm | 65mm |
| Screw Ratio | L/D30:1 | L/D30:1 | L/D30:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 15Kw | 18.5Kw | 22Kw |
| Rotational Mode of Machine Head | Continuous rotation | Continuous rotation | Continuous rotation |
| Main Output | 32kg/h | 38kg/h | 42kg/h |
| Max Folding Width of Film | 600mm | 700mm | 800mm |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Weight of Machine | 2300kg | 2900kg | 3500kg |
| Overall Dimensions | 4800×2500×4000mm | 4800×2500×4200mm | 5000×2500×4500mm |
FAQ
1. Q: Are you a trading company or factory?
A: We are a factory and source manufacturer. Our factory was established in 2002 developed on former factory called Haida Plastic Factory. Now we are called Ruian Haijing Machinery Co., Ltd. with more than 3000m2 modern workshop.
2. Q: What are you main products?
A: We can produce Film blowing machine, Bag making machine, Flexo/Gravure printing machine, Recycling machine ourselves. Film blowing machine is our main products.
3. Q: How can I do business with you?
A: We are factory and have strategically allied with some other good local suppliers.
We are insisting on Good quality, Reasonable price, Time-saving one-stop shopping, Long-term business and No-worry after-sale service.
Contact Person: sales
Tel: +8613819753629 / +8613353399812
