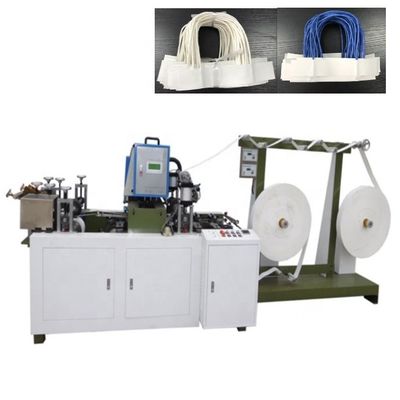

Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate

Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate
Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate

Large Image :  Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate

Product Details:
Place of Origin: RUIAN
Brand Name: haijing
Certification: CE
Model Number: HJ-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 7
Packaging Details: WOODEN CASE
Delivery Time: 15
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 88
Contact Now

Automatic Laminated Handle Paper Bag Making Machine 220V With Ce Certificate

Description
Certification: ISO9001 CE Machine Type: Bag Forming Machine,Sealing Machine,Bag Sealing,bag Making Machine,Bag Filling
Voltage: 380V/220V Material: Paper,Plastic,Non Woven Bag,laminated Bag,Kraft And Bubble Film Bag
Condition: New Weight: 1000KG
Highlight:

Handle Paper Laminated Bag Machine

,

220V Handle Paper Bag Making Machine

,

Automatic Laminated Bag Making Machine

Automatic Paper Bag Handle Making Machine





Automatic Paper Handle Bag Machine With Hot Melt Glue Paper Bag Handle


Introduction:

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

1. The machine is easy to operate and can produce paper handles with high speed usually reach 170 pairs per minute.
2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support
customize.
3. The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.
4. This machine adopts Huangshang melt-glue machine of Taiwan with service points in many countries, can provide customers with the fastest service.
No
Item
Technical parameter
1
Model
190
2
Handle diameter
Dia3-4mm
3
Handle distance
60-95mm
4
Handle height
100mm
5
Paper sheet length
127-190mm
6
Paper sheet width
30/40mm
7
Paper bag length
250-400mm
8
Paper bag width
220-400mm
9
Machine speed
30 pcs/mins
10
Paper roller inner side diameter
Dia76mm
11
Max. Paper roller outside diameter
Dia1000mm
12
Guling system
Hot guling system
13
Machine supply
AC 380V, 50Hz, three phase four wires
14
Rated power
10kw
15
Machine weight
2000KG
16
Machine dimension
L6000*W1600*H1500mm




Packing and Shipping Packaging:

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping:

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
