Product Details:
|
| Weight: | 900kg | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 380V,380V/220V | Dimension(l*w*h): | 6500*2000*1900mm |
| Highlight: | 100PCS/Min Paper Cup Machine,12oz Paper Cup Machine,12oz Paper Cup production line |
||

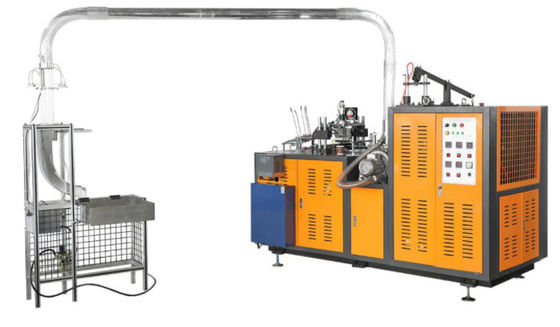

paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure
of paper-feeding,cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping.
It is idea equipment forproducing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used
for hot drink and beverage.If you need double PE coated paper cups or paper gram higher 250g/m2, we
recommend you to use Ultrasonic paper cup machine. It canproduce single PE coated paper cups and double
PE coated paper cups.
Specification:
| Technical Specification: | |
| Model | CUP |
| Cup size: | 2.5-12oz(if the cup is more than 12oz the machine designed more lager ) |
| Raw Material | 150-300g(One-side or Two-side PE (polyethylene) film coated / laminated paper) |
| Suitable paper weight | 150-380g/m2(single PE-coated paper) |
| Productivity | 70-90pcs/min |
| Power Source | 380V 50HZ(customization) |
| Total Power | 4KW |
| Total Weight | 2000KG |
| Package Size(L x W x H) | 2300x1500x1700mm(LxWxH) |
| Working Air Source | Air pressure 0.4Mpa;Air out-put:0.6m3/min |
| Making Double PE coated paper cups, need to buy an air compressor | |
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
