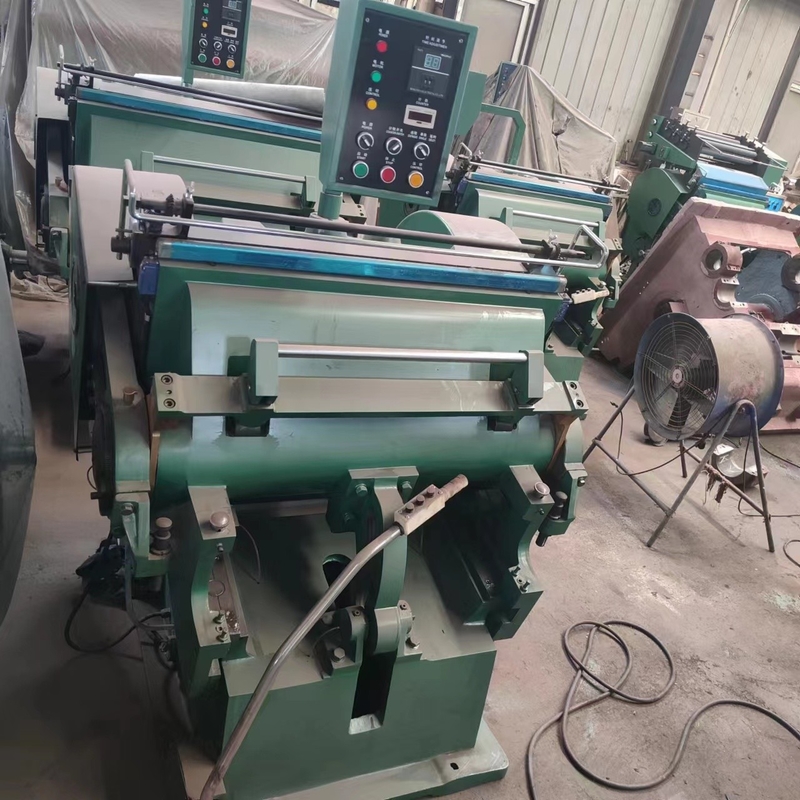

Wafangdian Bearings Emboss Machine Pure Copper Sleeve Connecting Rod Shaft 2.2KW

Large Image : Wafangdian Bearings Emboss Machine Pure Copper Sleeve Connecting Rod Shaft 2.2KW

Product Details:

Place of Origin:	Wenzhou Ruian Haijing Machinery
Brand Name:	HJ
Certification:	Ce
Model Number:	HJ-750

Payment & Shipping Terms:

Minimum Order Quantity:	1tower
Price:	2000dollar/tower
Packaging Details:	Container packaging
Delivery Time:	4work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1tower/20todays

Contact Now

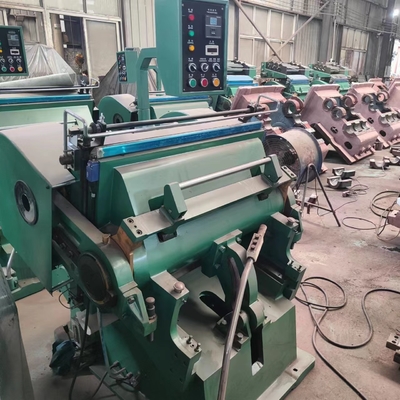

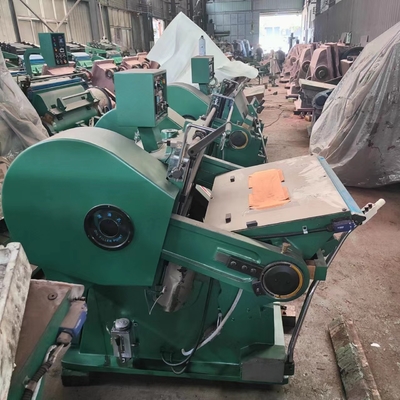

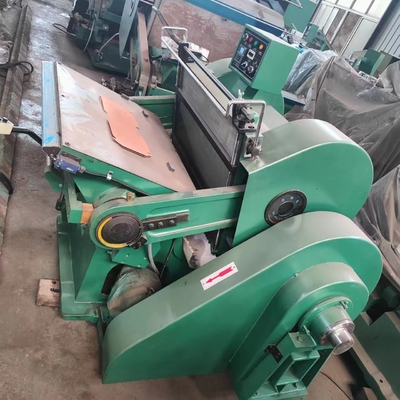

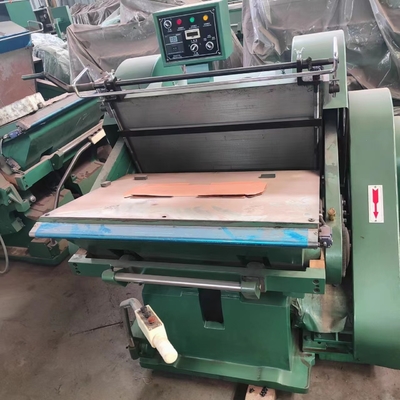

Wafangdian Bearings Emboss Machine Pure Copper Sleeve Connecting Rod Shaft 2.2KW

Description

Dimensions Inside The Board And Frame:	750*520	Working Speed:	25±2
Maximum Blade Length:	＜15m	Power:	2.2KW
Net Weight:	1800kg	Overall Dimensions:	135016001550mm
Highlight:	Pure Copper Sleeve Emboss Machine , 2.2KW Emboss Machine , 750*520 Emboss Machine

Configuration table of flat indentation machine (model HJ750)

Technical parameters:

1. Size inside the frame: 750 * 520

2. Working speed: 25 ± 2

3. Maximum blade length: ＜ 15m

4. Motor power: 2.2KW

5. Net weight: 1800kg

6. External dimensions: 1350 * 1600 * 1550

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

TECHNICAL SPECIFICATIONS:

Model	Max.Rule Area	Working speed	Max.Rule Length	Motor Power	Weight	Overall Deminsion(LWH)
HJ-750	750*520mm	25±2(strokes/min)	<15M	2.2KW	1800kg	153015501600mm
