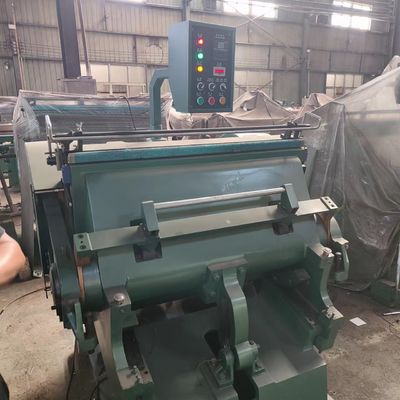

HJ1040 Emboss Indentation Machine 1040*720 4KW Configuration Table

Large Image : HJ1040 Emboss Indentation Machine 1040*720 4KW Configuration Table

Product Details:

Place of Origin:	Wenzhou Ruian Haijing Machinery
Brand Name:	HJ
Certification:	Ce
Model Number:	HJ-1040

Payment & Shipping Terms:

Minimum Order Quantity:	1tower
Price:	2000dollar/tower
Packaging Details:	Container packaging
Delivery Time:	4work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1tower/20todays

Contact Now

HJ1040 Emboss Indentation Machine 1040*720 4KW Configuration Table

Description

Dimensions Inside The Board And Frame:	1040*720	Working Speed:	22±2
Maximum Blade Length:	＜28m	Power:	4KW
Net Weight:	3200kg	Overall Dimensions:	185018001700
Highlight:	Emboss Indentation Machine , 1040*720 Emboss Machine , 4KW Emboss Machine

Configuration table of flat indentation machine (model HJ1040)

Technical parameters:

1. Size inside the frame: 1040 * 720

2. Working speed: 22 ± 2

3. Maximum blade length: ＜ 28m

4. Motor power: 4KW

5. Net weight: 3200kg

6. Boundary dimension: 1850 * 1800 * 1700

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

Main structural features:

1.Sliding bearings are mnade of high quality alloy cooper, thus to get effect of anti- friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-rankingmaterial for rmachine body.
4. Single plate electromagnetic clutch is sensitive aind reliable.
5. With functions of single , coontinuous and opening dwelll operation, dwell range is adjuustable.
6. Operating position is reasonably arranged, moving-bedlcan be opened to its optimum.
7. Reliable safety protectioon system.

Model	Max.Rule Area	Working Speed	Max.Rule Length	Motor Power	Weight	Overall Deminsion
HJ-1200	1200*830mm	20+-2(strokes/min)	<32M	5.5KW	4500kg	205021501900mm
HJ-1100	1100*800mm	20+-2(strokes/min)	<30M	4KW	4200kg	200019501700mm
HJ-1040	1040*720mm	22+-2(strokes/min)	<28M	4KW	3200kg	185018001700mm
