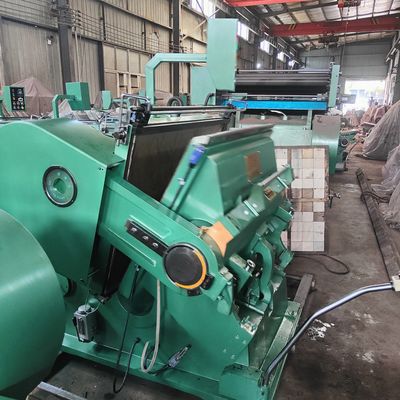

Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg

Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg
Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg
Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg

Large Image :  Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg

Product Details:
Place of Origin: Wenzhou Ruian Haijing Machinery
Brand Name: HJ
Certification: Ce
Model Number: HJ-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1tower
Price: 2000dollar/tower
Packaging Details: Container packaging
Delivery Time: 4work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1tower/20todays
Contact Now

Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg

Description
Inside The Board And Frame: 1200*830 Working Speed: 20±2
Lade Length: ＜32m Power: 5.5KW
Net Weight: 4200kg Overall Dimensions: 2050*2150*1800
Highlight:

Flat Pressing Indentation Machine

,

Flat Pressing Machine 5.5KW

,

1200*830 Pressing Indentation Machine

Configuration table of flat indentation machine (model HJ1200)

Technical parameters:

1. Size inside the frame: 1200 * 830

2. Working speed: 20 ± 2

3. Maximum blade length: ＜ 32m

4. Motor power: 5.5KW

5. Net weight: 4200kg

6. External dimensions: 2050 * 2150 * 1800

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

Main structural features:
1.Sliding bearings are mnade of high quality alloy cooper, thus to get effect of anti- friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-rankingmaterial for rmachine body.
4. Single plate electromagnetic clutch is sensitive aind reliable.
5. With functions of single , coontinuous and opening dwelll operation, dwell range is adjuustable.
6. Operating position is reasonably arranged, moving-bedlcan be opened to its optimum.
7. Reliable safety protectioon system.
Model Max.Rule Area Working Speed Max.Rule Length Motor Power Weight Overall Deminsion
HJ-1200 1200*830mm 20+-2(strokes/min) <32M 5.5KW 4500kg 2050*2150*1900mm
HJ-1100 1100*800mm 20+-2(strokes/min) <30M 4KW 4200kg 2000*1950*1700mm
HJ-1040 1040*720mm 22+-2(strokes/min) <28M 4KW 3200kg 1850*1800*1700mm





Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 0Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 1Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 2Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 3Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 4Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 5Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 6Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 7Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 8Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 9Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 10Flat Pressing Indentation Machine 1200 * 830 5.5KW 4200kg 11
