Flat Press Indentation Machine 1400Model Of Die Cutting 1400*1000

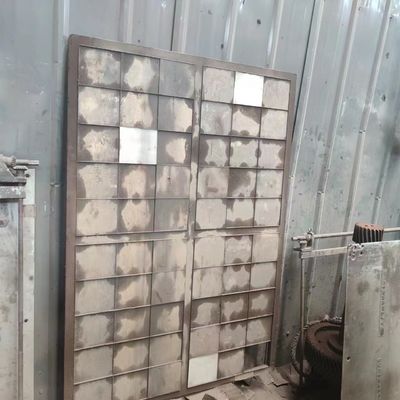

Large Image : Flat Press Indentation Machine 1400Model Of Die Cutting 1400*1000

Product Details:

Place of Origin:	Wenzhou Ruian Haijing Machinery
Brand Name:	HJ
Certification:	Ce
Model Number:	HJ-1400

Payment & Shipping Terms:

Minimum Order Quantity:	1tower
Price:	2000dollar/tower
Packaging Details:	Container packaging
Delivery Time:	4work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1tower/20todays

Contact Now

Flat Press Indentation Machine 1400Model Of Die Cutting 1400*1000

Description

Dimensions Inside The Board And Frame:	1400*1000	Working Speed:	14±2
Maximum Blade Length:	＜38m	Power:	5.5KW
Net Weight:	6000kg	Overall Dimensions:	240020001900
Highlight:	Flat Press Indentation Machine , 1400 Model Indentation Machine , Indentation Emboss Machine 1400*1000

Configuration table of flat indentation machine (model HJ1400)

Technical parameters:

1. Size inside the frame: 1400 * 1000

2. Working speed: 14 ± 2

3. Maximum blade length: ＜ 38m

4. Motor power: 5.5KW

5. Net weight: 6000kg

6. External dimensions: 2400 * 2000 * 1900

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

Main structural features:

1.Sliding bearings are mnade of high quality alloy cooper, thus to get effect of anti- friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-rankingmaterial for rmachine body.
4. Single plate electromagnetic clutch is sensitive aind reliable.
5. With functions of single , coontinuous and opening dwelll operation, dwell range is adjuustable.
6. Operating position is reasonably arranged, moving-bedlcan be opened to its optimum.
7. Reliable safety protectioon system.

Delivery cycle: within 35 working days.

Company name: Haijing Machiner

Person in charge: Manager Wu

Phone number: 1381975362918627295765

Model	Max.Rule Area	Working Speed	Max.Rule Length	Motor Power	Weight	Overall Deminsion
HJ-1500	1500*1050mm	14+-2(strokes/min)	<40M	7.5KW	7000kg	250020002000mm
HJ-1400	1400*1000mm	14+-2(strokes/min)	<38M	5.5KW	6000kg	240020001900mm
HJ-1300	1300*920mm	14+-2(strokes/min)	<38M	5.5KW	5600kg	210020001900mm
