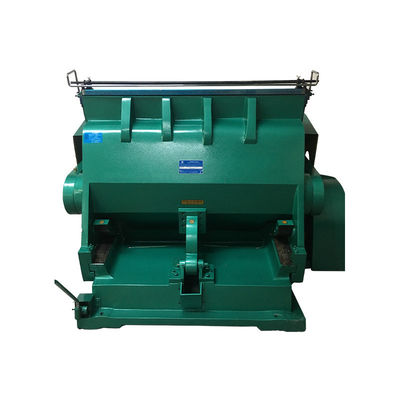

Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation

Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation
Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation
Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation

Large Image :  Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation

Product Details:
Place of Origin: Wenzhou Ruian Haijing Machinery
Brand Name: HJ
Certification: Ce
Model Number: HJ-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1tower
Price: 2000dollar/tower
Packaging Details: Container packaging
Delivery Time: 4work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1tower/20todays
Contact Now

Carton Flat Press Indentation Machine 1600Model 11KW Of Die Cutting Andindentation

Description
Dimensions Inside The Board And Frame: 1600*1250 Working Speed: 14±2
Maximum Blade Length: ＜43m Power: 11KW
Net Weight: 10000kg Overall Dimensions: 2700*2300*2300
Highlight:

Carton Flat Press Indentation Machine

,

Indentation Machine Of Die Cutting Andindentation

,

Indentation Emboss Machine 11 KW

Configuration table of flat indentation machine (model HJ1600)

Technical parameters:

1. Size inside the frame: 1600 * 1250

2. Working speed: 14 ± 2

3. Maximum blade length: ＜ 43m

4. Motor power: 11KW

5. Net weight: 10000kg

6. External dimensions: 2700 * 2300 * 2300

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

Main structural features:
1.Sliding bearings are mnade of high quality alloy cooper, thus to get effect of anti- friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-rankingmaterial for rmachine body.
4. Single plate electromagnetic clutch is sensitive aind reliable.
5. With functions of single , coontinuous and opening dwelll operation, dwell range is adjuustable.
6. Operating position is reasonably arranged, moving-bedlcan be opened to its optimum.
7. Reliable safety protectioon system.

Delivery cycle: within 35 working days.

Company name: Haijing Machiner

Person in charge: Manager Wu

Phone number: 1381975362918627295765
Model Max.Rule Area Working Speed Max.Rule Length Motor Power Weight Overall Deminsion(L*W*H)
HJ-2500 2500*1500mm 11+-3(strokes/min) <70M 18.5KW 18000kg 2300*3600*2200mm
HJ-2200 2200*1400mm 11+-2(strokes/min) <60M 15KW 16000kg 2300*3100*2200mm
HJ-2000 2000*1400mm 13+-2(strokes/min) <55M 15KW 14500kg 2270*3100*2150mm
HJ-1800 1800*1280mm 13+-2(strokes/min) <50M 11KW 12000kg 2180*2560*2100mm

HJ-1600

 1600*1250mm 13+-2(strokes/min) <43M 11KW 11000kg 2170*2560*2080mm
