Nitrided Guide Rail Lining Emboss Indentation Machine 4 Phosphorus Chromium Steel Gears

Configuration table of flat indentation machine (model HJ2500)

Technical parameters:

1. Size inside the frame: 2500 * 1500

2. Working speed: 11 ± 2

3. Maximum blade length: ＜ 75m

4. Motor power: 15KW

5. Net weight: 17000kg

6. External dimensions: 2300 * 3600 * 2400

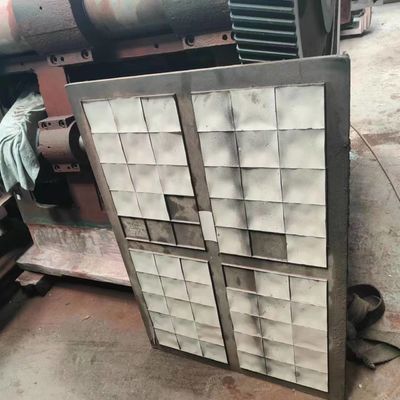

1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The spindle of the machine is made of 45 # steel.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The bearings of the machine are made of Wafangdian bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

The key and main components of the above machines will not be explained separately.

1.Sliding bearings are mnade of high quality alloy cooper, thus to get effect of anti- friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-rankingmaterial for rmachine body.
4. Single plate electromagnetic clutch is sensitive aind reliable.
5. With functions of single , coontinuous and opening dwelll operation, dwell range is adjuustable.
6. Operating position is reasonably arranged, moving-bedlcan be opened to its optimum.
7. Reliable safety protectioon system.



Model	Max.Rule Area	Working Speed	Max.Rule Length	Motor Power	Weight	Overall Deminsion(L*W*H)
HJ-2500	2500*1500mm	11+-3(strokes/min)	<70M	18.5KW	18000kg	2300*3600*2200mm
HJ-2200	2200*1400mm	11+-2(strokes/min)	<60M	15KW	16000kg	2300*3100*2200mm
HJ-2000	2000*1400mm	13+-2(strokes/min)	<55M	15KW	14500kg	2270*3100*2150mm
HJ-1800	1800*1280mm	13+-2(strokes/min)	<50M	11KW	12000kg	2180*2560*2100mm
HJ-1600	1600*1250mm	13+-2(strokes/min)	<43M	11KW	11000kg	2170*2560*2080mm
