Product Details:
|
| Maximum Hot Stamping Area: | 750*520 | Working Speed: | 24±2 |
|---|---|---|---|
| Working Pressure: | ≤60（T） | Foil Feeding Length: | 520（mm） |
| Net Weight: | 2000kg | Number Of Foil Feeding Groups: | 2 Groups |
| Host Power: | 2.2KW | Total Power: | 10kw |
| Highlight: | Castings Die Cutting Emboss Machine,Die Cutting Emboss 45# Steel Machine,750*520 Emboss Steel Machine |
||

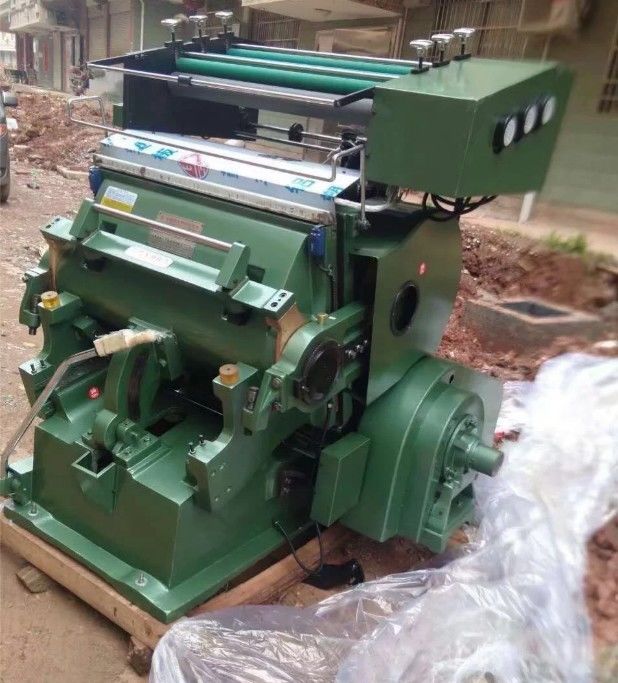

Configuration Table of Computer Stamping Die Cutting Machine (Model HJ-750T)
Technical parameters:
1. Maximum hot stamping area: 750 * 520
2. Working speed: 24 ± 2
3. Working pressure: ≤ 60 (T)
4. Foil feeding length: 520 (mm)
5. Net weight: 2000kg
6. Number of foil feeding groups: 2 groups
7. Host power: 2.2KW
8. Total power: 10kw
1. The casting of the machine is HT200 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.
2. The spindle of the machine is made of 45 # steel.
3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.
4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.
5. The bearings of the machine are made of Wafangdian bearings.
6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.
7. The connecting rod shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.
The key and main components of the above machines will not be explained separately.
TECHNICAL SPECIFICATIONS:
| Model | HJ-1100T | HJ-930T | HJ-750T |
|---|---|---|---|
| Max.platen area available | 1100*800mm | 930*670mm | 750*520mm |
| Max.Stamping area available | 1100*800mm | 930*670mm | 750*520mm |
| Range of skip available | Built-in Processing With Computer | ||
| Working pressure | 120T | 100T | 60T |
| Foil-delivered length | 800mm | 640mm | 520mm |
| Foil-delivered group | 3 groups | 3 groups | 3 groups |
| Working speed | 1200strokes/h | 1320strokes/h | 1500strokes/h |
| Main motor power | 4KW | 4KW | 22KW |
| Total power | 16KW | 12KW | 8KW |
| Net weight | 4500kg | 3200kg | 2200kg |
| Deminsion(L*W*H) | 1950*1950*1850 | 1760*1670*1700mm | 1360*1640*1600mm |
