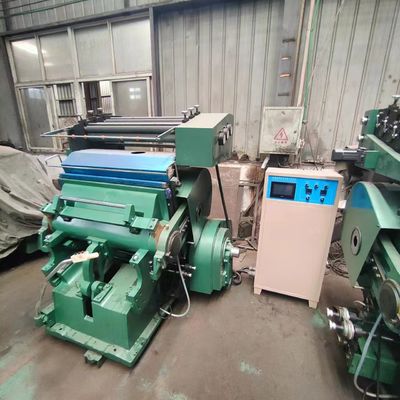

Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum

Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum
Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum
Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum

Large Image :  Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum

Product Details:
Place of Origin: Wenzhou Ruian Haijing Machinery
Brand Name: HJ
Certification: Ce
Model Number: HJ—1600T
Payment & Shipping Terms:
Minimum Order Quantity: 1 tower
Price: 2000dollar/tower
Packaging Details: Container packaging
Delivery Time: 4work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1tower/20todays
Contact Now

Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum

Description
Maximum Hot Stamping Area: 1500*10501600*1250 Working Speed: 15±2
Working Pressure: ≤200（T） Foil Feeding Length: 1250（mm）
Net Weight: 10000kg Number Of Foil Feeding Groups: 3 Groups
Host Power: 11KW Total Power: 50kw
Highlight:

1250mm Stamping Die Cutting Machine

,

lubrication Stamping Die Cutting Machine

,

11KW Emboss Machine

Configuration Table of Computer Stamping Die Cutting Machine (Model HJ-1600T)

Technical parameters:

1. Maximum hot stamping gold area: 1600 * 1250

2. Working speed: 15 ± 2

3. Working pressure: ≤ 200 (T)

4. Foil feeding length: 1250 (mm)

5. Net weight: 10000kg

6. Number of foil feeding groups: 3 groups

7. Host power: 11KW

8. Total power: 50kw

1. The casting of the machine is HT250 Gray iron, which is annealed. It can make the castings of the machine (including the body, press frame, etc.) less prone to deformation and fracture.

2. The main shaft of the machine is made of four phosphorus chromium steel, which is then quenched and tempered. It can make the spindle less prone to deformation and improve its strength, rigidity, and hardness.

3. The main gears of the machine are also made of four phosphorus chromium steel, which is then quenched and tempered.

4. The guide rail lining of the machine is made of 38 chromium molybdenum aluminum, which is then nitrided. It greatly enhances its hardness and is less prone to wear and tear. It can keep the pressure of the machine in balance and not easily change.

5. The key parts of the machine use NSK bearings as bearings.

6. The machine adopts a centralized refueling lubrication system, which can better ensure the smoothness of the oil circuit. Make the maintenance and refueling of the machine more convenient.

7. The shaft sleeve of the machine is made of pure copper sleeve. Make the machine more precise.

8. The lining of the machine is made of stainless steel plate.

The key and main components of the above machines will not be explained separately.

Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum 0Computer Stamping Die Cutting Machine Lubrication System 38 Chromium Molybdenum Aluminum 1
