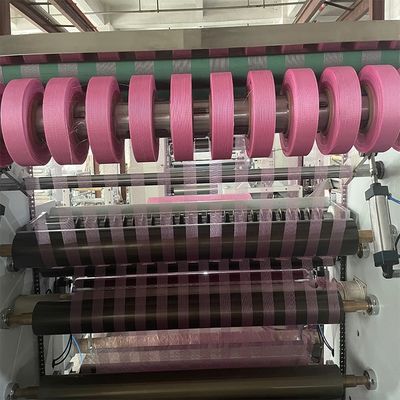

HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm

HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm

Large Image :  HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm

Product Details:
Place of Origin: Wenzhou Ruian Haijing Machinery
Brand Name: HJ
Certification: Ce
Model Number: HJ-1100A
Payment & Shipping Terms:
Minimum Order Quantity: 1 tower
Price: 20000dollars
Packaging Details: Container packaging
Delivery Time: four weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 tower /30days
Contact Now

HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm

Description
Material Type: Roll Like Materials Such As Self-adhesive, Paper, Non-woven Fabric, Printing Composite, Etc Material Thickness: Material Thickness
Maximum Width Of Raw Materials: 1100mm Roll Surface Width: 1150mm
Cutting Width: 15-1150mm Reel Tube Core: 3 Paper Tube; Using 2 Duluo Gas Expansion Shafts
Maximum Diameter Of Winding: 1000mm Maximum Speed: 620 Meters/minute
Slitting Speed: 10-620 Meters/minute Total Power Of Power Supply: 18KW
Total Weight: 3800KG Overall Dimensions: 3600 In Length, 2350 In Width, And 1950mm In Height
Highlight:

Three Servo Automatic Slitting Rewinder Machine

,

Automatic Slitting Rewinder Machine 1150mm

,

18KW Automatic Slitting Machine

HJ-1100A-III three servo fully automatic tension slitting machine

HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 0



1, Parameter indicators:

1. Material type: roll like materials such as self-adhesive, paper, non-woven fabric, printing composite, etc;

2. Material thickness; 30-450g (paper)

3. Maximum width of raw materials: 1100mm

4. Roll surface width: 1150mm

5. Cutting width: 15-1150mm

6. Reeling tube core: 3 "paper tube; using 2 Duluo gas expansion shafts

7. Maximum diameter of winding: 1000mm

8. Maximum speed: 620 meters/minute

9. Cutting speed: 10-620 meters/minute

10. Total power supply: 18KW

11. Total weight: approximately 3800KG

12. External dimensions: 3600 in length, 2350 in width, and 1950mm in height

Device configuration:
Part Name Specification and model quantity brand
45 # steel frame Wall panel net thickness 40mm 1 pair Chrome plating
3-inch inflatable shaft Plating Luo 2 pieces
Main traction roller steel rod plating φ 120 * 1150mm 1 piece
Main traction rubber roller polyurethane φ 120 * 1150mm 1 piece
Hard alumina guide roller Φ 90 * 1150mm 10 pieces
Winding servo 5.5KW 2 sets Beauty Department
Traction servo 5.5KW 1 set Beauty Department
drive 5.5KW 3 units Shenzhen Hongyuan
Waste blowing edge fan 1.5KW 1 unit Wuxi
bearing   1 batch HRB
Pneumatic components   1 batch
The round knife adopts heating function   1 set
Master PLC programmable controller TPC1061Ti 1 piece Siemens
10 inch true color touch screen TPC1061Ti 1 piece Beijing Kunlun Tongshi
Proximity switch   1 piece Japan OMRON
Low voltage apparatus   1 piece Schneider
Switching Mode Power Supply S100-24 1 piece Taiwan Mingwei
3, Functional description of each part:

(1). Traction Department:

1. The traction roller is driven by a 5.5KW servo motor.

(2). Waste edge recycling device:

Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.

(3). Winding mechanism: (finished product unloading is completed mechanically)

1. The cut material is independently wound using both upper and lower axes, and the slitting knife uses a circular knife for slitting (8 pairs)

2. The upper and lower winding shafts each have one 5.5KW servo motor with pneumatic expansion shaft. The winding tension is automatically controlled by Siemens PLC based on the current coil diameter, ensuring that the finished materials are neat when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller for cutting. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.



5. Discharge device

Adopting a shaftless hydraulic automatic feeding structure

(1) One pair of discharge chassis

(2) 1 set of analog correction motor

(3) Guide rail 35 model 8 pieces

(4) One pair of high-quality steel is used for the 40 thick memorial archway

(5) 1 pair of lifting swing arms

(6) Cylinder 4 pairs

(7) 1 pair of non axis top cones

(8) Air brake 1 pair

Electrical equipment adopts

Chint Group is used for low-voltage electrical appliances, Snyder is used for button switches, Siemens is used for PLC, and the operating system of the whole machine is controlled

4, Machine Part Location
Overall appearance
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 1
Upper and lower center winding diameter 1000mm
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 2
Hydraulic shaftless automatic lifting, labor-saving material placement, and simple operation
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 3
High quality sensors align the fabric and make the material flat
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 4
Circular knife device, or air knife device, optional
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 5
Tension control function
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 6
Servo motor device function
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 7
Main connected distribution box
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 8
Unloading using a reducer
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 9
驱动器采用宏远
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 10
PLC adopts Siemens from Germany
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 11
Automatic meter counting, alarm parking, automatic control and other functions

10 inch touch screen, Kunlun connected state
HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm 12
