Automatic Tension Slitting Rewinder Machine For Self Adhesive Non Woven Fabric Roll Slitting Machine

1, Parameter indicators:

1. Material type: roll like materials such as self-adhesive, paper, non-woven fabric, printing composite, etc;

2. Material thickness; 30-450g (paper)

3. Maximum width of raw materials: 1300mm

4. Roll surface width: 1350mm

5. Cutting width: 15-1300mm

6. Reeling tube core: 3 "paper tube; using 2 Duluo gas expansion shafts

7. Maximum diameter of winding: 1000mm

8. Maximum speed: 600 meters/minute

9. Cutting speed: 10-600 meters/minute

10. Total power supply: 25KW

11. Total weight: approximately 5400KG

12. External dimensions: 3600 in length, 2650 in width, and 1950mm in height

3, Functional description of each part:

1. Traction Department:

1. The traction roller is driven by a 7.5KW servo motor.

2. Waste edge recycling device:

Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.

III. Winding mechanism: (finished product unloading is completed mechanically)

1. The cut material is independently wound using both upper and lower axes, and the slitting knife uses a circular knife for slitting (8 pairs)

2. The upper and lower winding shafts each have one 7.5KW servo motor with pneumatic expansion shaft. The winding tension is automatically controlled by Siemens PLC based on the current coil diameter, ensuring that the finished material is neat when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller for cutting. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.

5. Discharge device

Adopting a shaftless hydraulic automatic feeding structure

(1) One pair of discharge chassis

(2) 1 set of analog correction motor

(3) Guide rail 35 model   8 pieces

(4) One pair of high-quality steel is used for the 40 thick memorial archway

(5) 1 pair of lifting swing arms

(6) Cylinder 4 pairs

(7) 1 pair of non axis top cones

(8) Air brake 1 pair

Electrical equipment adopts

Chint Group is used for low-voltage electrical appliances, Snyder is used for button switches, Siemens is used for PLC, and the operating system of the whole machine is controlled

4, Machine Part Location

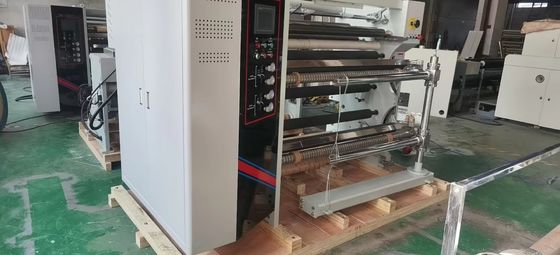

Overall appearance
