HJ-C1400- III three servo fully automatic tension slitting machine
1, Parameter indicators:
1. Material type: PET, BOPP, BOF, PE, OPP printing and other roll shaped materials;
2. Material thickness: 0.012-0.5mm (film)
3. Maximum width of raw materials: 1400mm
4. Roll surface width: 1450mm
5. Cutting width: 20-1400mm
6. Reeling tube core: 3 "paper tube; using 2 Duluo slip shafts
7. Maximum diameter of winding: 600mm
8. Maximum speed: 450 meters/minute
9. Cutting speed: 10-400 meters/minute
10. Total power supply: 12KW
11. Total weight: approximately 4200KG
12. External dimensions: length 2414, width 3890, height 1720mm
| Part Name |
Specification and model |
number |
brand |
| 45 # steel frame |
Wall panel net thickness 40mm |
1 pair |
|
| 3-inch slip shaft |
Plating Luo |
2 pieces |
|
| Main traction rod |
φ100*1450mm |
1 piece |
|
| Main traction rubber roller polyurethane |
φ100*1450mm |
7 pieces |
|
| Hard alumina guide roller |
Φ90*1450mm |
6 pieces |
|
| Winding servo |
3.7KW |
2sets |
Beauty Department |
| Traction servo |
3.7KW |
1set |
Beauty Department |
| drive |
3.7kw |
3units |
Shenzhen Hongyuan |
| Waste blowing edge fan |
1.5KW |
1unit |
Wuxi |
| bearing |
|
1batch |
HRB |
| pneumatic components |
|
1batch |
|
| Cutting using a straight knife |
|
6 pairs |
|
| Master PLC programmable controller |
CPU224XP |
1 piece |
Siemens |
| 7-inch true color touch screen |
TPC1061Ti |
1 piece |
Beijing Kunlun Tongshi |
| proximity switch |
|
1 piece |
Japan OMRON |
| Low Voltage Apparatus |
|
1batch |
schneider |
| switch power supply |
S100-24 |
1 piece |
mean well |
3, Functional description of each part:
1. Traction Department:
1. The traction roller is driven by a 3.7KW servo motor.
2. Waste edge recycling device:
Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.
3. Winding mechanism: (The left or right end of the finished product is determined by the customer when placing an order)
1. The cut material is independently wound using both upper and lower axes, and the slitting knife uses a circular knife for slitting (6 pairs)
2. The upper and lower winding shafts each have one 3.7KW servo motor with pneumatic expansion shaft. The winding tension is automatically controlled by Siemens PLC based on the current coil diameter, ensuring that the finished material is neat when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller for cutting. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.
5. Discharge device
Adopting a connected shaftless hydraulic automatic feeding structure

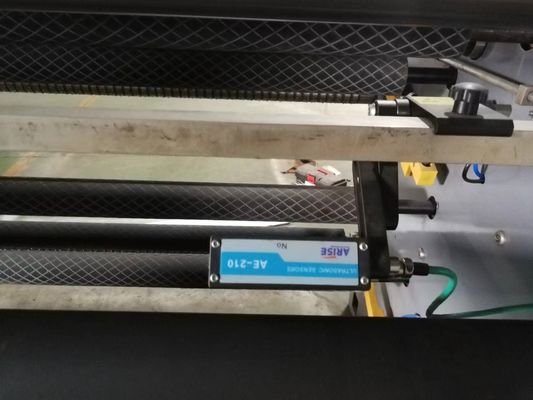

(1) 1 set of analog correction motor
(2) Guide rail 35 model 4 pieces
(3) One pair of high-quality steel is used for the 40 thick memorial archway
(4) 1 pair of lifting swing arms
(5) Cylinder 140X63 1 pair
(6) The discharge brake adopts one pair of air brakes
Electrical equipment adopts
Chint Group is used for low-voltage electrical appliances, Snyder is used for button switches, Siemens is used for PLC, and the operating system of the whole machine is controlled
