Product Details:
|
| Unwind Width: | 1800mm | Unwind Diameter: | 1500mm |
|---|---|---|---|
| Finished Diameter: | 1500mm Max | Slitting Width: | 50mm (min） |
| Power: | 15kw | Speed: | 1-200m/min. |
| Speed Regulation: | By Inverter | ||
| Highlight: | high speed slitter rewinder,1500mm slitter rewinder,Slitter Rewinder Machine 200m/Min |
||
| 2 |
HJ-1800 Paper Slitter Rewinder |
 |
1. Unwind width: 1800mm 2. Unwind diameter: 1500mm 3. Finished diameter: 1500mm max. 4. Slitting width:50mm (min.) 5. Power: 15kw 6. Speed: 1-200m/min. 7. Speed regulation: by inverter |
1 set | |
| Totally USD | |||||
| Terms | |||||
| 1. 以上价格为人民币含税价. | |||||
| 2. Package: 缠绕膜 | |||||
| 3. Delivery time: 30 days after receiving the down payment.(to be postponed if meet legal holidays) | |||||
| 4. Payment: 100% T/T; 30% down payment, the balance 70% to be paid before shipment. | |||||
|
5. Warranty: The machine has 12 months’ warranty since the date of buyer's receipt of the machine. --The seller should be responsible for providing the exchange of new spare parts (buyer pays the postage cost) if the spare part damage during the guarantee period (excluding the quick wear parts or human factors). -- The seller shall not be responsible for the damages caused by accidents, neglect, improper operation or other abnormal conditions due to uncontrollable circumstances during the guarantee period. However, the seller should provide paid repair. |
|||||

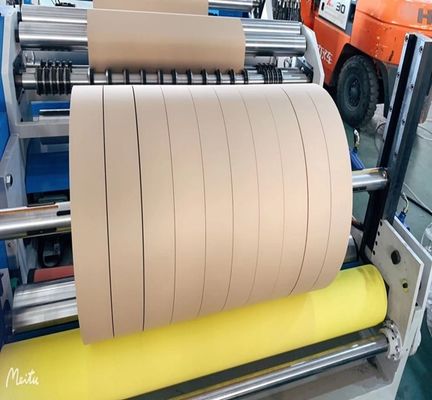

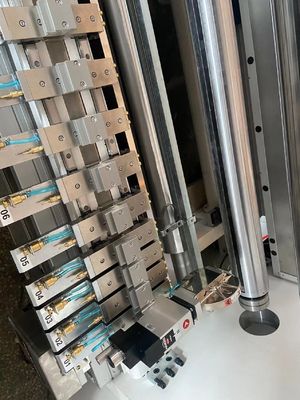

1.HJ-1800 Split Paper Slitter Rewinder
| Main Parameters | Control System | ||||
| Material paper | 50-600gsm | Main motor | 11kw Wannan | ||
| Unwind width | 1800mm | Electric components | CHNT | ||
| Unwind diameter | 1500mm | Pneumatic components | Jingwei | ||
| Rewind diameter | 1500mm | Bearing | Haerbin | ||
| Minimum slitting width | 50mm | Main Configuration | |||
| Working speed | 0-200m/min | Jumbo paper loading device | 1 pair (76mm ID) | ||
| Speed regulation | By Inverter | Hydraulic lifting device | 1 set | ||
| Material paper loading device | Shaftless | Discharging air cylinder | 1 piece | ||
| Loading | Automatically by Hydraulic | Braking device | 2 pieces (air brake) | ||
| Unloading | Automatically by pneumatic | Blades | 20 sets (top & bottom) | ||
| Rewinding device | Air expanding shaft | Operating box | 1 set | ||
| Power supply | 380V 50Hz 3Phase | Tool | 1 set | ||
| Measurement & Weight | Curved roller | Have | |||
| Measurement | L3300*W1200*H1200mm (unwind side) | ||||
| L3000*W1700*H1100mm (rewind side) | |||||
| Weight | 3300kgs | ||||
