600Y Hydraulic Paper Plate Machine with molds and aluminum foil plate making

600Y Hydraulic Paper Plate Machine



QUOTATION
NO.	Product Description	Quantity	Unit Price USD	Total USD
1	600Y PAPER PLATE MACHINE (WITH 2 FIXED MOLDS)	1SET	12580	12580
2	PAPER PLATE MACHINE MOLD	2SETS	500	1000
TOTAL	13580
Valid Date to 2026/9/1 1USD=7CNY





1) Price Term: FOB NINGBO PORT

2) Payment: T/T (30% as deposit, and 70% before delivery )

3) Load time: 30 working days after collecting the deposit and confirming mold drawing. (Except statutory holidays)

4) Packaging: Normally standard wooden packing or per as customer required.

After-sales service:

1.Easy worn spare parts guarantee for one year in machine arrival.

2.Send the technician for installation & training. Buyer bears the cost (round tickets,accommodation, and allowance of 100USD per day).

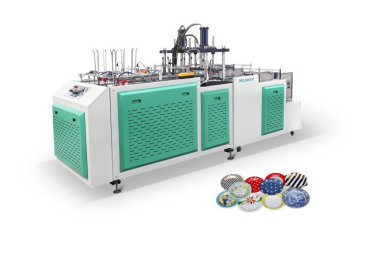

600Y type high-speed & intelligent paper plate machine adopts straight-line forming, which is paper feeding, forming and collecting in one straight line. Compared with the traditional paper plate machine, ML600Y has the advantage of stable forming, high efficiency and labor saving. ML600Y is hydraulic machine with double stations, two stations are controlled by different motors, which means two stations can work separately, realize that one machine can produce different sizes and shapes of paper plates at the same time.The machine main working principle is hydraulic system, the hydraulic system has the advantage of easy operating and stable forming. Machine uses PLC and whole processing photoelectric tracking, machine works fully automatic,safely and intelligently, and can be directly connected to packing machine, supporting production line.







Main Technical Parameters
Paper Plate Size	4-12.5”
Paper Grams	150-800g/m2
Paper Materials	Origin paper, whiteboard paper, white cardboard, craft paper aluminum foil paper or others
Capacity	Double Stations 40-110pcs/min
Power Requirements	380V 50HZ
Rated Power	10KW
Actual Power	8KW
Weight	1600kg
Specifications	3500×1300×1900mm
Air Supply Requirement	0.4Mpa, 0.3cube/min
Other Notes	Customize
Oil Cylinder	ML-80-150-5T-X
Cylinder Stroke	150mm

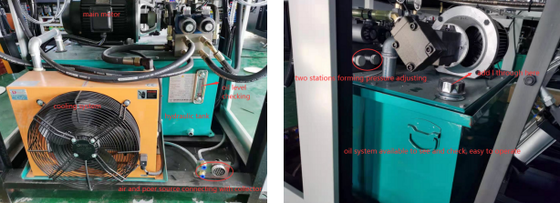

1. Machine adopts hydraulic system, compared with traditional plate machine, has the advantage of stable forming, high efficiency and energy saving.































2. Two stations working separately, one machine can produce different sizes and shapes plates at one time.

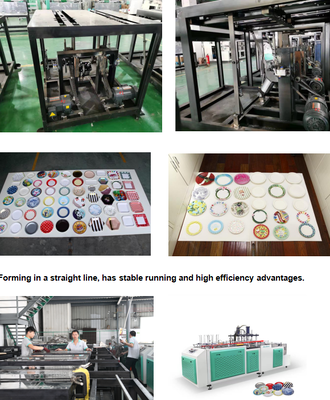

3. Forming in a straight line, has stable running and high efficiency advantages.

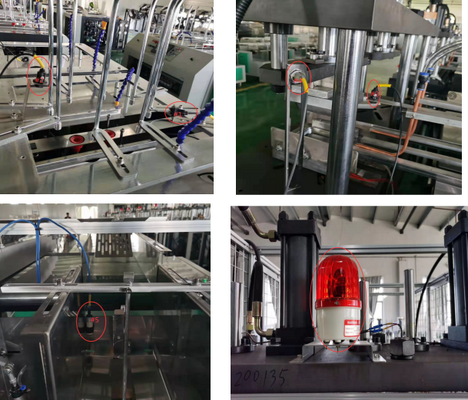

4. Machine adopts photoelectric tracking, automatic counting and collecting, machine will alarm and automatic stop in case of emergency, achieve safe and intelligent production.





















































5. Machine main body and the collector part can be separated, it is easy to place and to save space.



















6. Collector with air storage tank to make the machine run more stable, feet use universal wheel, the height of the machine can be adjusted, it is very convenient to connected with the production line.

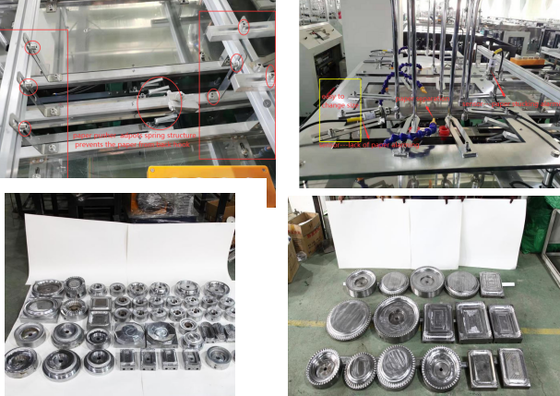

7. Paper feeding part adopts aluminium profile, which is convenient to adjust the size after changing the mold. It is easy and simple to operate. Mold uses carbon steel, compared with aluminum alloy material, it is not easy to be deformed, mold surface with anti-rust plating.













































8. Machine with paper sucking switch, saving power and energy. Machine panel and body cover can be customized.





























NO	SPARE PARTS	SUPPLIER
1	Hydraulic Motor	Aston
2	Normally Closed Photoelectric	Shanghai Qide
3	Stainless Steel Heating Pipe	Jiangsu Rong Dali
4	Oil Pump	Aston
5	Counter Switch	Yueqing Tiangao
6	Normally Open Photoelectric	Shanghai Qide
7	Solenoid Valve	Taiwan Airtac
8	Bearing	Harbin
9	Temperature Sensor	Shanghai Xingyu
10	AC Contactor	Yueqing Tiangao
11	Frequency Transformer	Delta
12	(Touch Screen)	Delta
13	PLC	Delta













Name	Picture	Quantity
Paper sucker		4pcs
Paper pusher		4pcs
Oil can		1pcs
Outer hexagon wrench		1set
inner hexagon spanner		1set
monkey wrench		1pcs
screwdriver		1pcs
screw		1set
Heating ring Anti-heating blade		1set with the mold
Toolbox		1 set
Instructions		1 set
