Central sealing bottom sealing bag machine controller

Central sealing bottom sealing bag machine controller

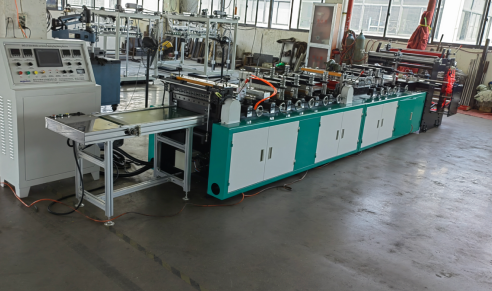

This bag-making machine is a specially developed fully automatic high-speed bag maker by our company for substrates such as coated paper and paper-plastic composite materials. It uses a human-machine interface and PLC system control, making it easy to operate. The sealing edges have high thermal strength, the products are flat, and the appearance is neat and attractive, making it the best bag-making equipment for aviation and cleaning bags.

Paper bag width: 70-320mm
Paper bag length: 70-350mm
Machine speed: 50-170 pcs/min
Machine weight: 2000kg
Gusset width: 10-60mm
Paper weight: 40-100g
Lamination thickness: 10-50 micron
Air pressure: 4mpa
Machine dimensions: 1300*7300*1500mm
Main motor power: 2.2kw
Heating power: 10kw

Main detailed configuration parameters:

1. Unwinding motor: DC motor (one unit) (Kangyuan)
2. Main motor: AC motor (one unit) 2.2KW (Wuhu Deli)
3. Feeding motor: servo computer control (2 units) (Weifang)
4. Inverter 2.2KW (one unit) (Defu)
5. Unwinding shaft: pneumatic expansion shaft 3 inches
6. Cutting method: cold cutting
7. Knife: one set (China Ma'anshan III type A7)

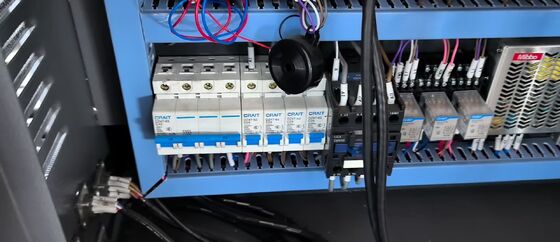

8. Low-voltage electrical components: one set (China Chint)
9. Computer control system (with PLC control)
10. Guide roller treated with oxidation
12. Material storage rack traction (1 set)
13. Unwinding rack (1 set)
14. Glue rollers made of nitrile rubber
14. Unwinding diameter 80
15. Collection table with automatic conveyor belt
18. Rust protection for all machine parts with white plating
19. Machine color: gray
20. Machine voltage: 220V-380V
23. Correction system (1 set)
24. Magnetic powder 5 kg
26. Rotation method: cam rotation

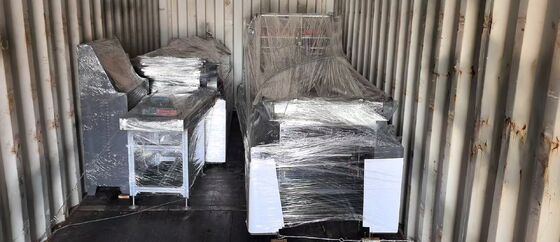

27. Machine divided into three sections (main machine, traction, unwinding rack)
28. Pre-unwinding motor synchronized with main machine
