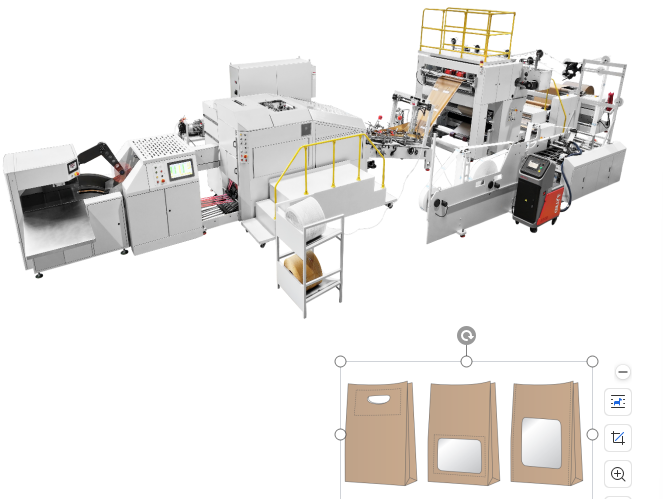

Automatic High Speed Square Bottom Paper Bag Machine
Properties And Uses
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Main Features
1. Adopt WEINVIEW touch screen human-computer interface, operate and control easily.
2. Adopt Germany LENZE PC control, Integrated with optical fiber, ensure high speed running steadily.
3. Germany LENZE servo motor and German SICK Photoelectric eye correction, tracking printing bag accurately.
4. Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.
5. Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.
Technical parameter
|
Model |
450TF(W+D) | |
|
Cut Bag Length |
380—760mm | |
|
The Cut Length Of Handle Paper Bag |
380—660mm | |
|
Paper Bag Width |
180—450mm | |
|
The Width Of The Handle Paper Bag |
240—450mm | |
|
Paper Bag Bottom Width |
80—260mm | |
|
Paper Bag Bottom Width Of The Handle Paper Bag |
100—260mm | |
|
Planar Graph |
|
|
|
Paper Thickness |
80—150g/㎡ | |
|
Machine Speed |
30—180pcs/min | |
|
Paper Bag Speed |
30—150pcs/min | |
|
Paper Roll Width |
550—1450mm | |
|
Punch Hole Width |
40-120mm | |
|
Punch Hole Height |
40-120mm | |
|
Patch Bag Wrist Hole |
75/85mm | |
|
PAtch Bag Film Thickness |
40-70um | |
|
Patch Reinforcement Paper Roll Width |
130mm | |
|
Patch Reinforcement Paper Roll Diameter |
500mm | |
|
Roll Paper Diameter |
Φ1500mm | |
|
Inner Diameter Of Paper |
Φ76mm | |
|
The Handy Paper Bag Weighs Heavily |
80—160g/㎡ | |
|
The Paper Roll Width Of The Handle |
710—1450mm | |
|
Flat Rope Machine |
||
|
(E) Flat Rope Width |
12mm | |
|
(A) Flat Rope Spacing |
78mm | |
|
(D) Flat Rope Height |
90mm | |
|
(B) Patch Width |
45—50mm | |
|
(F) Length Of Patch |
190mm | |
|
Length Of Flat Rope |
350mm | |
|
Patch Paper Thickness |
90—110g/㎡ | |
|
Flat Rope Drawing |
|
|
|
Round Rope Machine |
|
|
Handle Length |
380mm |
|
(A) Patch Length |
190mm |
|
(B) Hand Patch Width |
45—50mm |
|
(F) Handle Distance |
95mm |
|
(D) Paper Rope Height |
100mm |
|
Rope Diameter |
Ф3—5mm |
|
Patch Paper Roll Diameter |
ф1200mm |
|
Patch Paper Thickness |
90—110g/㎡ |
|
Round Rope Drawing |
 |
|
Bottom Folding Type |
|
|
Cutting Knife |
Sawtooth cutting |
|
Machine Power |
380V 3(phase)4(wire) 71.46KW |
| 25KW | |
|
Total Weight |
25000kg |
|
Machine Dimension |
15500*5700*3300mm |
Main Electrical Components Configuration
|
Control System |
|||
|
Name |
QTY |
Country |
Brand |
|
Motion Controller And The Module |
1 |
Germany |
LENZE |
|
Human Computer Touch Screen Interface |
1 |
China |
WEINVIEW |
| 1 |
China |
INOVANCE | |
| PLC | 1 |
China |
INOVANCE |
|
Servo Motor |
11 |
Germany |
LENZE |
|
Servo Motor |
19 |
China |
INOVANCE |
| PATCH BAGS SERVO MOTOR | 7 |
Germany |
LENZE |
| WINDOW FILM SERVO MOTOR | 2 |
Germany |
LENZE |
|
Servo Motor Reducer |
29 |
China |
TECHMECH |
|
Servo Motor Harmonic Reducer |
1 |
China |
LAIFU |
| Adjusting workstation servo motor harmonic phase shifter | 4 |
China |
LAIFU |
|
Servo Driver |
6 |
Germany |
LENZE |
|
Servo Driver |
19 |
China |
INOVANCE |
|
Servo Driver |
5 |
Germany |
LENZE |
| SLIP RING | 1 |
China |
BAIXUAN |
|
Input Filter |
1 |
China |
YIBO |
|
Low Voltage Electrical Apparatus |
1 |
Germany |
EATON |
|
US |
SCHNEIDER | ||
|
Photoelectric Eye Color Code Tracking |
2 |
Germany |
SICK |
|
Photo Electric Sensor |
1 |
Switzerland |
BAUMER |
| Proximity switch | 1 |
Germany |
BEDOOK |
| Limit switch | 1 |
Japan |
OMRON |
|
Pneumatic Component |
1 |
Taiwan |
AIRTAC |
|
Auto Lubricating |
1 |
China |
BAOTN |
|
Air Conditioner For Electric Control Box |
1 |
China |
ZHEJIANG |
|
Control System |
|||
|
Name |
QTY |
Country |
Brand |
| VACUUM PUMP | 2 |
China |
EUROVAC |
|
Bottom Glue Motor |
1 |
China |
BOLI |
|
Pneumatic Control Valve |
1 |
China |
AOGVI |
|
Waterborne White Latex High Pressure Spray Barrel |
1 |
China |
ZHEJIANG |
|
Glue Level Detection Switch |
1 |
Switzerland |
BAUMER |
|
Transmission |
|||
|
Name |
Qty |
Country |
Brand |
|
Synchronous Belt |
1 |
China |
SHUNSHENG |
|
6061 Aluminum Alloy Synchronous Wheel |
1 |
China |
|
|
6061 Aluminum Alloy Guide Roller |
1 |
China |
|
|
Luo 12 Steel Gear/Carburized Steel Gear |
1 |
China |
|
|
Deviation Correction And Tension Control System |
|||
|
Name |
QTY |
Country |
Brand |
|
EPC Controller |
1 |
China |
YOUDAO |
|
Servo Motor For EPC |
1 |
China |
YOUDAO |
|
Ultrasonic Sensor |
1 |
China |
YOUDAO |
|
Magnetic Powder Brake |
2 |
China |
YANXIN |
|
Feeding Hydraulic Cylinder |
2 |
China |
ASTON |
|
Hydraulic Pressure Station |
1 |
China |
ASTON |
|
Round Rope Hand Part |
|||
|
Name |
QTY |
Country |
Brand |
|
Photoelectric Eye Color Code Tracking |
2 |
Germany |
SICK |
|
Hot Melt Glue Device |
1 |
China |
XBS |
|
Hot Melt Glue Gun |
1 |
China |
XBS |
|
Hot Melt Glue Hose |
1 |
China |
XBS |
|
EPC Controller |
2 |
China |
YOUDAO |
|
Servo Motor For EPC |
2 |
China |
YOUDAO |
|
Ultrasonic Sensor |
2 |
China |
YOUDAO |
|
Glue Level Detection Switch |
2 |
Switzerland |
BAUMER |
|
Glue Switch Ratio Valve |
2 |
China |
DELIXI |
|
Pneumatic Control Valve |
1 |
China |
AOGVI |
|
Handle Glue Motor |
2 |
China |
YIXING |
|
HANDLE WHITE GLUE GUN
|
1 |
China |
YBL |
|
TUBE FORMING WHITE GLUE GUN
|
1 |
China |
YBL |
