Product Details:
|
| Printing Accuracy: | High Accuracy | Printing Color: | Multi-color |
|---|---|---|---|
| Printing Cost: | Cost-effective | Printing Durability: | High Durability |
| Printing Efficiency: | High Efficiency | Printing Flexibility: | High Flexibility |
| Printing Maintenance: | 6 Colors | Printing Material: | Various Materials |
| Printing Method: | Flexo Printing | Printing Quality: | High Quality |
| Printing Reliability: | High Reliability | Printing Resolution: | High Resolution |
| Printing Size: | Customized | Printing Speed: | High Speed |
| Printing Time: | Short Time | Max. Width Of Printing: | 960mm |
| Length Of Printing: | 1300mm | Max. Material Width: | 1000mm |
| Highlight: | PP Woven Fabric Flexo Printing Machine,6 Colours Fabric Flexo Printing Machine,Flexo Printing Machine 1300mm |
||
HJ-61000 6 Colours PP Woven Printing Machine

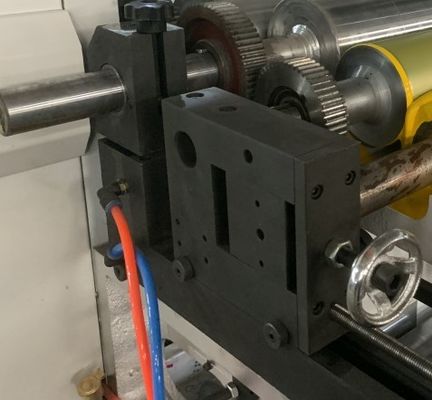

Printing rollersbase and all gears are phosphatizing treatment –antirust
Photo only for reference.
This machine specially for PP woven Fabric printing.
1: Main Parameter
A: Model:HJ-61000
B:Material :Roll PP woven fabric
C:Max. Material Width: 1000mm
D:Max. Width of Printing: 960mm
E:Max .Length of Printing: 1300mm
F:Material Printing: 10-80m/min
G:Thickness of Plate : 3.94mm(if different plate thickness,please note us)
H. Machine dimension: 5800*2000*2650mm
I. Machine weight: 3800kg
2:Unwind Unit:
A:Max. Length of Effective Roller: 1000mm
B:Dia. of Roller: 76mm
C:Max. Dia. Of Unwind: 1000mm (one unwind)
D:Type of Unwind: tension control ,EPC ,pneumatic auto loading
E: Unwind shaft: Air shaft
F: Core of Unwind: 3”
3:Traction Unit:
A.:Constitution of Traction: Rubber Roller and Chrome plated Roller
B:Traction Zones: 2
4:Printing Unit:
A.:Constitution of Printing: Chrome plated Roller, Rubber Roller, Anilox roller, Plate-glued roller (printing cylinder)
B:Printing cylinder: 220-1300mm (one set less than 500mm for free))
C:Material of Plate: Resin and Rubber
D:Principle of Work: Helical Gears Drive
E:Way of Adjusting: Manual
F:Plated-glued roller lifting: pneumatic
G:Printing colours: 6 colors
H: rubber roller:6pcs
5:Heating and Drying Unit:
A:Type of Heating and drying: blowing first then heating
B:Power of Heating: 15KW
6:Electrical Parts:
A: Main motor: 4kw
B:Ink-Transfer Motor: 6pcs
C:An speed adjustable Inverter Equips With the Main Motor
7:Rewind Unit:
A:Max. Length of Effective Roller: 1000mm
B:Dia. of Roller: 76mm
C:Max. Dia of Rewind: 1000mm
D:Type of Wind:Surface roll rewinding
E: Wind shaft: Air shaft
F: Core of Wind: 3”
8:Main Machine Specification List:
| contactor | SCHNEIDER |
| Breaker | SCHNEIDER |
| revolve Button switch | SCHNEIDER |
| Urgent stop switch | SCHNEIDER |
| Mini Relay | SCHNEIDER |
| Inverter | KEWO BRAND |
| Main Motor | China |
| Button switch | SCHNEIDER |
| Automatic tension control | China |
| Automatic EPC device | China |
Spare parts :
| Name of the spare parts | Quantity | |
| 1 | Tool Box | 1 set |
| 2 | 1-10# screwdriver | 1 pcs |
| 3 | oil gun | 1 pcs |
| 4 | Inner Hexagon Spanner | 1 set |
| 5 | Switches&buttons | 2 pcs |
| 6 | Contactor | 1 pc |
| 7 | heating tube | 2 pcs |
| 8 | Relay | 2pcs |
| 9 | Printing cylinder sleeve | 4pcs |
| 10 | Air faucet | 2pcs |
| 11 | Thermocouple | 1pc |
