Product Details:
|
| Printing Accuracy: | High Accuracy | Printing Color: | Multi-color |
|---|---|---|---|
| Printing Cost: | Cost-effective | Printing Durability: | High Durability |
| Printing Efficiency: | High Efficiency | Printing Flexibility: | High Flexibility |
| Printing Maintenance: | 4 Colors | Printing Material: | Various Materials |
| Printing Method: | Flexo Printing | Printing Quality: | High Quality |
| Printing Reliability: | High Reliability | Printing Resolution: | High Resolution |
| Printing Size: | Customized | Printing Speed: | High Speed |
| Printing Time: | Short Time | Max. Width Of Printing: | 750mm |
| Length Of Printing: | 280-1200mm | Max. Material Width: | 800mm |
| Highlight: | HJ-800 Flexographic Printing Machine,Flexographic Printing Machine 750mm,Flexographic Multi color Printing Machine |
||
HJ-A4 color 800 high-speed paper cup flexographic printing machine
MACHINE DETAIL TECHNICAL PARAMETER.
| 1)主要参数MAIN PARAMETER | |
|
机器型号: MACHINE MODEL |
HJ-A4800 |
|
过料宽度: MAX.MATERIAL WIDTH |
800mm |
|
印刷宽度: MAX.PRINTNIG WIDTH |
750mm |
|
承印材料: SUITABLE FOR MATERIAL |
卷筒纸PAPER |
| 印刷颜色:COLOURS | 4色 4COLOURS |
|
印刷长度 PRINTING LENGTH |
280-1200mm |
|
机械速度 MACHINE SPEED |
120米/分 |
|
印刷速度 PRITING SPEED |
80-100米/分 |
|
版材厚度 PLATE THICKNESS |
1.7mm |
|
双面胶厚度 TAPE THICKNESS |
0.38mm |
|
电源 VOLTAGE |
3P 380V 50HZ |
|
墙板厚度 Machine base thickness |
75mm |
| 2)牵引部分 TRACTION UNIT | |
| 组数ZONE | 2组 |
|
牵引压轮 TRACTION PRESSING WHEEL |
气动式 CYLINDER TYPE |
| 3)印刷部分 PRINTING UNIT | |
|

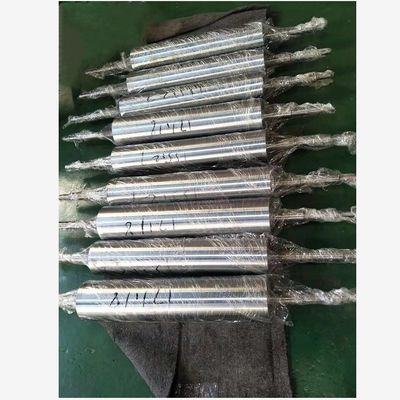

网纹辊 ANILOX ROLL |
陶瓷网纹辊:4条 CERAMIC ANILOX ROLL 4PCS |
|
版辊周长 PRINTING CYLINDER |
标配400mm以内(根据客户不同要求,自己选择280-1200mm) STANDRAD(LESS THAN 400MM,ACCORDING TO CLIENT REQUEST,CAN EXTRA TO PAY FOR 280-1200MM) |
|
传动方式 DRIVING TYPE |
同步带+高精度斜齿轮驱动 TIMING BELT+HIGH PRECISION HELICAL GEAR DRIVING |
|
套色方式 ADJUSTING OF REGISTER |
手动 MANUAL |
|
套色精度 PRINTING PRECISION |
+-0.15mm |
|
起落版调节 PLATED-GLUED ROLLER ADJUSTING |
液压起落版(水平式) HYDRAULIC TYPE |
| 4)加热烘干部分HEATING AND DRYING UNIT | |
|
TYPE OF HEATING AND DRYING |
ELECTRIC TYPE |
|
HEATING POWER |
30kw |
| 风机 FANS | 2.2KW*2pcs |
| 5) ELECTRIC PARTS | |
|
MAIN MOTOR(INVERTER MOTOR) |
3.7kw |
|
INK MOTOR WITH FAN |
4pcs |
|
VERTICAL REGISTER MOOTR |
4pcs |
|
HORIZONTAL REGISTER MOTOR |
4pcs |
