Product Details:
|
| Printing Accuracy: | High Accuracy | Printing Color: | Multi-color |
|---|---|---|---|
| Printing Cost: | Cost-effective | Printing Durability: | High Durability |
| Printing Efficiency: | High Efficiency | Printing Flexibility: | High Flexibility |
| Printing Maintenance: | 4 Colors | Printing Material: | Various Materials |
| Printing Method: | Flexo Printing | Printing Quality: | High Quality |
| Printing Reliability: | High Reliability | Printing Resolution: | High Resolution |
| Printing Size: | Customized | Printing Speed: | High Speed |
| Printing Time: | Short Time | Length Of Printing: | 280-1200mm |
| Max. Material Width: | 1400mm | MAX.PRINTNIG WIDTH: | 1350mm |
| Highlight: | Flexographic Printing Machine High Accuracy,1400mm Flexographic Printing Machine,1200mm Flexo Printing Machine |
||

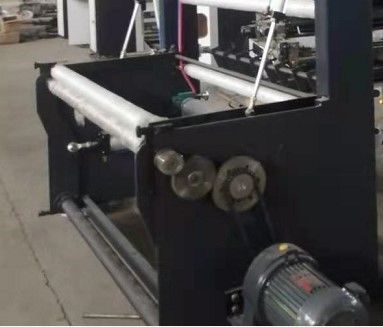

HJ-A41400 high-speed flexographic printing machine
机器详细技术参数:MACHINE DETAIL TECHNICAL PARAMETER.
| 1)主要参数MAIN PARAMETER | |
|
机器型号: MACHINE MODEL |
HJ-A41400 |
|
过料宽度: MAX.MATERIAL WIDTH |
1400mm |
|
印刷宽度: MAX.PRINTNIG WIDTH |
1350mm |
|
承印材料: SUITABLE FOR MATERIAL |
卷筒纸PAPER:15~400g/m2,无纺布NON-WOVEN:15-120G,PVC:10~120μm,OPP:10~100μm,BOPP:10~100μm,PE:15~150μm,NY:10~120μm,PET:10~100μm,CPP:10~100μm等卷材AND SO ON |
| 印刷颜色:COLOURS | 4色 4COLOURS |
|
印刷长度 PRINTING LENGTH |
280-1200mm |
|
机械速度 MACHINE SPEED |
120m/min |
|
印刷速度 PRITING SPEED |
10-100m/min |
|
版材厚度 PLATE THICKNESS |
1.7mm |
|
双面胶厚度 TAPE THICKNESS |
0.38mm |
|
电源 VOLTAGE |
3P 380V 50HZ |
|
墙板厚度 Machine base thickness |
75mm |
| 2)放料部分 UNWINDER UNIT | |
| 辊宽 ROLL WIDTH | 1450mm |
|
有效印刷辊宽 PRINTING WIDTH |
1350mm |
|
放料最大直径 MAX.RAW DIAMETER |
1000mm(可按客户要求定制,CAN MAKE ACCORDING TO CLIENT’S REQUEST) |
|
放料纠编 UNWINDER EPC |
自动纠编系统 AUTO EPC SYSTEM |
|
上料方式 LOADING WAY |
气动上料 PNEUMATIC TYPE |
|
气胀轴 AIR SHAFT |
1PC |
| 3)牵引部分 TRACTION UNIT | |
| 组数ZONE | 2组 |
|
牵引压轮 TRACTION PRESSING WHEEL |
气动式 CYLINDER TYPE |
| 4)印刷部分 PRINTING UNIT | |
|
网纹辊 ANILOX ROLL |
陶瓷网纹辊:4条 CERAMIC ANILOX ROLL 4PCS |
|
版辊周长 PRINTING CYLINDER |
标配400mm以内(根据客户不同要求,自己选择280-1200mm) STANDRAD(LESS THAN 400MM,ACCORDING TO CLIENT REQUEST,CAN EXTRA TO PAY FOR 280-1200MM) |
|
传动方式 DRIVING TYPE |
同步带+高精度斜齿轮驱动 TIMING BELT+HIGH PRECISION HELICAL GEAR DRIVING |
|
套色方式 ADJUSTING OF REGISTER |
电动 ELECTRIC MOTOR |
|
套色精度 PRINTING PRECISION |
+-0.15mm |
|
起落版调节 PLATED-GLUED ROLLER ADJUSTING |
液压起落版(水平式) HYDRAULIC TYPE |
|
静止画面 CAMERA |
1PC |
| PLC | 1PC |
| 5)加热烘干部分HEATING AND DRYING UNIT | |
|
加热烘干方式 TYPE OF HEATING AND DRYING |
电加热+1组风冷UV烘干系统 ELECTRIC TYPE+1SET AIR COOLED UV DRYING SYSTEM |
|
加热功率 HEATING POWER |
35kw |
| 风机 FANS | 1.5KW*2pcs |
| 6)电机部分 ELECTRIC PARTS | |
|
主电机 MAIN MOTOR(INVERTER MOTOR) |
3.7kw |
|
运墨电机带风扇 INK MOTOR WITH FAN |
4pcs |
|
纵向套色减速电机 VERTICAL REGISTER MOOTR |
4pcs |
|
横向套色减速电机 HORIZONTAL REGISTER MOTOR |
4pcs |
REWINDER UNIT |
|
| 辊宽ROLL WIDTH | 1450mm |
|
收料最大直径 MAX.REWINDER DIA. |
1000mm |
|
收卷方式 REWINDER TYPE |
力矩电机收卷,气动下料 TORQUE MOTOR, PNEUMATIC TYPE |
|
收料轴 REWINDER SHAFT |
气涨轴:1pc AIR SHAFT: 1PC |
Main Specification Lists:
| No. | Name | Quantity | Brand |
| 01 | Main motor | 1pc | Libang, China |
| 02 | Inverter | 1pc | Kewo, Shenzhen |
| 03 | Ink transfer motor | 1pc/ color | Libang, China |
| 04 | Blower | 2pcs | Changcheng, Suzhou |
| 05 | Aluminum roller | 1set | Ruian |
| 06 | Ceramic anilox roller | 1pc/ color | Murata/Yuncheng |
| 07 | Doctor blade | 1pc/ color | Own products |
| 08 | Rubber roller | 1pc/ color | Own products |
| 09 | Meter counter | 1set | CHINT, China |
| 10 | Switches | 1set | Schneider |
| 11 | Camera | 1pc | Kesai/Pusai |
| 12 | PLC | 1pc | Siemens |
| 13 | Air shaft | 2pcs | Ruian |
| 14 | EPC device | 1set | Dongdeng |
| 15 | Main machine body | 1set | Own products |
| 16 | Main machine casting | 1set | Chuangxin, Henan |
| 17 | Pneumatic component | 1set | Chuangfeng Qidong |
| 18 | Machine wallboard | 1set | 75mm, Own products |
Spare Parts For Free:
| No. | Name | Quantity |
| 01 | Tool box | 1set |
| 02 | 1-10# screwdriver | 1pc |
| 03 | Oil gun | 1pc |
| 04 | Inner hexagon spanner | 1set |
| 05 | Switches | 2pcs |
| 06 | Contactor | 2pcs |
| 07 | Heating tube | 2pcs |
| 08 | Machine operation instruction | 1pc |
| 09 | The inverter instruction | 1pc |
