Product Details:
|
| Sales Qty: | 50000 |
|---|

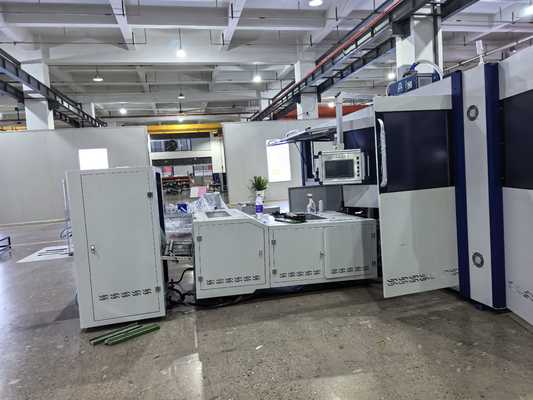

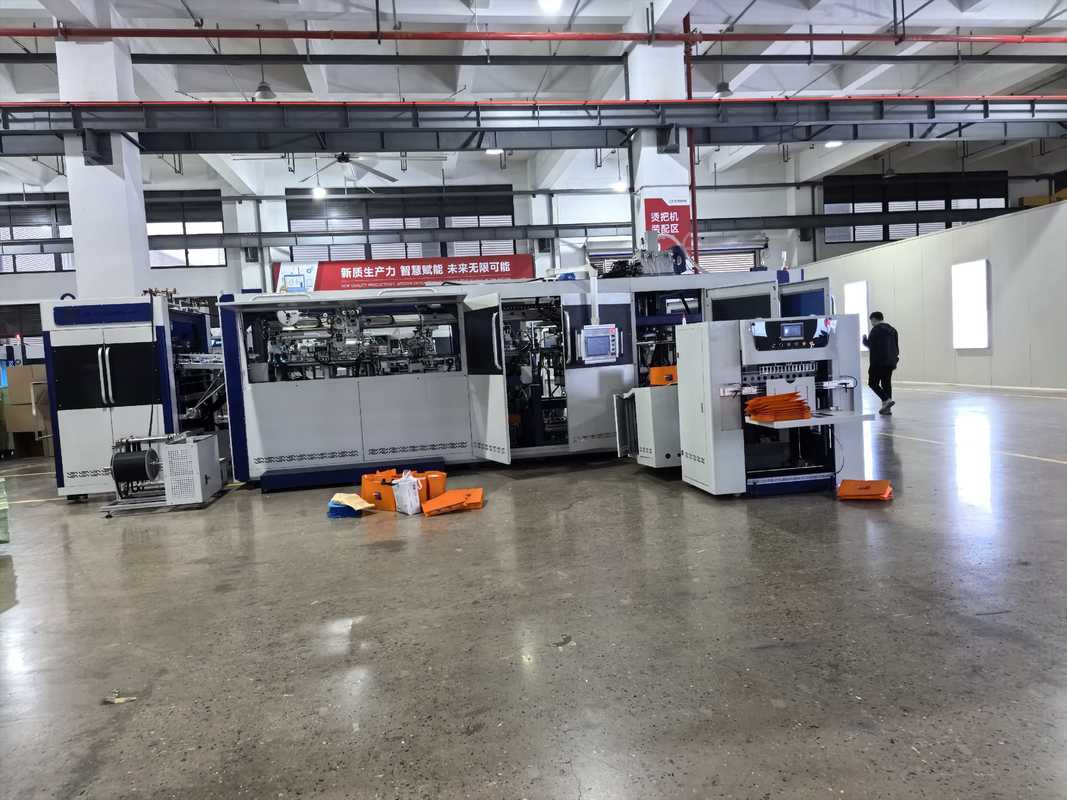

Fully automatically crease-free sheet feeding paper bag making machine
paper bag machine gluing systemhandle punching unit for bag machine| Description | Model | Qty | Unit | Unit price | Amount |
| Fully automatically crease-free sheet feeding paper bag making machine | HJ-A11 | 1 | set | ＄295,000 | ＄295,000 |
|
1,Time of Shipment: 60 days after get the deposit of advance payment(Depend the quantity of machine) 2,Terms of Payment: 100% T/T; 30% advance payment,70% before shipment. 3,Installation:The buyer shall prepare sufficient manpower, electric wire outside the control panel and tools for installation,the seller will send one engineer to install, test the production line and train customer's workers at the buyer's factory.It may take about 5-10 days for the whole installation and training. 4,The engineer's Salary:Free installation and debugging for 7 days. After 7 days, the daily wage will be charged at US$100. The buyer will pay for round-trip air tickets,Travel insurance, accommodation, food, etc. |
|||||
| Model | HJ-A11 |
| Material | White cardboard,white kraft paper,gold,silver cardboard |
| Material thickness | 180-300g |
| Production speed | 40-45pcs/min |
| Bag width | 200-540mm |
| Bag gusset | 70-200mm |
| Bag height | 200-420mm |
| Sheet size(Length) | 550-1040mm |
| Sheet size(width) | 300-700mm |
| Handle length | 400-600mm |
| Power supply | 380V |
| Total power | 40KW |
| Machine weight | 10000KG |
| Dimension size | 11000(L)*6300(W)*2500(H)mm |
FOR EXAMPLE AS CUSTOMERS REQUEST
| SIZES FOR THE BAGS | ||
| 1. AH=15cm×27cm×25cm | ||
| 2. Public Procurement Authority | ||
| 9.5cm×21cm×30.5cm | ||
| 3. AKKA | ||
| 8.5cm×19.5cm×24cm | ||
| 4. Funeral bag | ||
| 13cm×23cm×18cm | ||
| 5. White bag | ||
| 18cm×30.5cm×18cm | ||

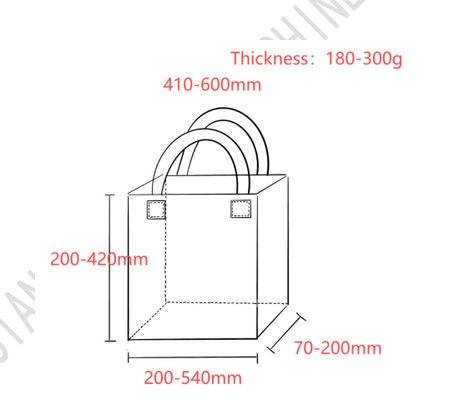

| Bag height | Bag width | Bag gusset |
| 200mm-420mm | 200mm—540mm | 70mm-200mm |
paper bag machine gluing systemhandle punching unit for bag machine| Specification | Model | Quantity | |
| Mainframe motion controller | HCQ5-1500-A | 1 | |
| Host controller expansion | EIO1616 | 3 | |
| Main host touch screen | FE6156WE | 1 | |
| Handheld touchscreen | RT9 | 1 | |
| Host controller AC power supply module | HCQX-PD01-A | 1 | |
| Bag folding machine controller | HCQ1-1200-D3 | 1 | |
| Bag folding machine touch screen | FE6070WE | 1 | |
| Mold up-and-down servo system(Inovance) | ISMG1-17D15CD-A334FA | 1 | |
| IS650NT045IUX | 1 | ||
| Mold feeding servo system(Inovance) | MS1H3-18C15CD-T331R | 2 | |
| SV630NT8R4I | 2 | ||
| Power-driven guide rail conveying device(Quadrupole) | GLM170-4000-SMAT-4M18D | 1 | |
| HM-Y7FB300T-S | 4 | ||
| Fida main servo(Inovance) | MS1H3-13C15CD-T331R | 1 | |
| SV630NT5R4I | 1 | ||
| Fida conveying platform servo system(Inovance) | MS1H3-13C15CD-T331R | 1 | |
| SV630NT5R4I | 1 | ||
| Edge bonding glue application servo(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Side sealing servo(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Front and rear servo during bottom insertion(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Bottom insertion up and down servo(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Bottom insertion up and down servo(Hechuan) | SV-X2MG075A-N2LA | 4 | |
| SV-Y7EB075A-S | 4 | ||
| Unbagging servo mechanism(Hechuan) | SV-X2MG075A-N2LA | 4 | |
| SV-Y7EB075A-S | 4 | ||
| Before and after bag removal(Hechuan) | SV-X2MG075A-N2LA | 4 | |
| SV-Y7EB075A-S | 4 | ||
| Side sealing platform positioning servo(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
|
Mold base support servo(Hechuan) |
SV-X2MG075A-N2LA | 1 | |
| SV-Y7EB075A-S | 1 | ||
| Wire tensioning servo mechanism(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Cable-wound rotational servo(Hechuan) | SV-X2MH040A-N2LA | 4 | |
| HN-Y7EB040A-S | 4 | ||
| Front and rear servo with rope clamping plates(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Wire-guided inward-pushing servo mechanism(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Wire-cutting knife positioning servo(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Patch-mounted rope-wearing platform positioning servo(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Screw feeder for powder storage(Hechuan) | SV-X2MG075A-N2LA | 4 | |
| SV-Y7EB075A-S | 4 | ||
| Before and after the patching process(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Folded edge servo mechanism(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Folded edge up and down servo(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Package mouth sealing servo mechanism(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Side insertion plate servo of the folding machine(Hechuan) | SV-X2MH040A-N2LA | 2 | |
| HN-Y7EB040A-S | 2 | ||
| Servo of the bottom insert plate of the folding bag machine(Hechuan) | SV-X2MH040A-N2LA | 4 | |
| HN-Y7EB040A-S | 4 | ||
| Bag folding machine conveying servo(Hechuan) | SV-X2MG075A-N2LA | 5 | |
| SV-Y7EB075A-S | 5 | ||
| Bag folding machine conveying system with upper and lower servo control(Hechuan) | SV-X2MG075A-N2LA | 2 | |
| SV-Y7EB075A-S | 2 | ||
| Total | The servo motor and driver constitute a set | Number of host servo sets | 60 |
| Number of bag folding machine servo set | 13 | ||
| Number of servo sets of the whole machine | 71 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
