| NAME: | 6C 850 Flexo Printing Machine | EPC: | HAVE |
|---|---|---|---|
| AUTO TENSION: | HAVE | CERAMIC ANILOX ROLLER: | CUNTIAN BRAND |
| CLOSED DOCTOR BLADE: | HAVE | ||
| Highlight: | ICECREAM PAPER Flexo Printing Machine 6C 850,High Speed Flexo Printing Machine with warranty,Flexo Printing Machine 6 color |
||
Flexo Printing Machine

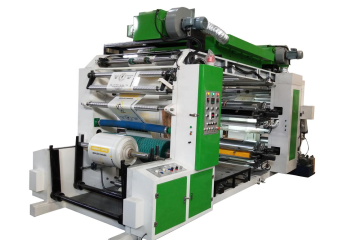

6C 850 Flexo Printing Machine
Core Parameters核心参数
| Name名称 | Parameter参数 |
| Colours: 印刷颜色: | 6 Colors |
| Max.Material Width: 最大材料宽度: | 850mm |
| Max.Printing Width: 最大印刷宽度: | 800mm |
| Printing Length: 印刷长度: | 300-1300mm |
| Printing Precision: 套色精度 | ±0.2mm |
| Color Register Method: 套色方式 | By Manual 手动 |
| Anilox Roller: 网纹辊 | Ceramic Anilox Roller 陶瓷网纹辊 |
| Transmission structure:传动结构 | Synchronous belt drive 同步带 |
| Machine Speed: 机械速度 | 20-100m/min |
| Printing Speed: 印刷速度 | 20-80m/min |
| Diameter Of The Material Roll: 料卷直径范围 | ≤1500mm |
| Air Shaft: 气涨轴 | ￠76mm*4 |
| Total Machine Power: 整机功率 | 40KW |
| Main Machine Frame:主机架 | Cast Iron铸铁 Thickness 75mm |
| Gear Accuracy齿轮精度 | 5级 |
| 备注 | |
| 版辊/网纹辊数量 | 4条 |
| Printing Cylinder: 版辊周长 | (Accept Customized) |
| Anilox Roller Screen Count: 网纹辊线数 | (Accept Customized) |
| Plate Thickness: 版材厚度 | (Accept Customized) |
| Voltage: 电源 | (Accept Customized) |
Overall Layout Reference Diagram: 5800mm×2200mm×4700mm,整体布局参考图
Machine Weight 8000Kg,Load into a 40-foot high cube container .装柜一个40尺高柜.
一:MAIN PART机器主要组成
| UNWINDER UNIT 放料部分 | ||
| Tension Control :张力控制 |
Motor + Swing Rod 电机+摆杆 |
|
| Feeding Method:上料方式 | By Pneumatic 气动 | |
| TRACTION UNIT 牵引部分 | ||
| Material Traction材料牵引 |
Pre-press traction + post-press traction 印前牵引+印后牵引 |
Plating thickness of steel roller: 10 threads钢辊电镀厚度:10丝 |
| PRINGTING UNIT 印刷部分 | ||
| Driving Method: 驱动方式 | Frequency Inverter Motor Drive变频电机驱动 | |
|
Infeed Deviation Correction 进料纠偏 |
Ultrasonic + Servo Motor超声波+伺服电机 | correction accuracy±0.2mm 纠偏精度 |
| Plate Locking Method锁版 | By Manual 手动 | |
| Roller Gear:辊筒齿轮 | Helical gear斜齿轮 | P=5mm |
| Color Registering Stroke: 套色行程 |
±15mm vertically, ±50mm horizontally 上下±15mm 左右±50mm |
|
| DRYING UNIT 烘干部分 | ||
| Heating Tube: 加热管 |
Main Oven:11 pcs 主烘箱;11根 Color Unit Oven:8 pcs 色组烘箱:8根 |
Constant temperature fluctuation ±2℃ 恒温波动 ±2℃ |
| Oven Length: 烘箱长度 | 2.5m |
Noise ≤ 75dB during high-speed operation 高速运行时噪音≤75dB |
| Fan Power:风机功率 |
Main Fan: 2.2kw 主风机2.2kw Color Unit Fan:2.2kw色组风机2.2kw |
Constant temperature fluctuation ±2℃ 恒温波动 ±2℃ |
| Total Heating Power:加热总功率 | 26kw |
Central constant temperature control 中央恒温控制 |
| Drying Type: 烘干方式 | Electrical Heating 电加热 | Heating response time ≤ 3 minutes加热响应时间≤3 分钟 |
| REWINDER UNIT收卷部分 | ||
| Tension Control : 张力控制 | Motor + Swing Rod 电机+摆杆 |
Air shaft load ≥ 500Kg 气涨轴承载≥500Kg |
| Unloading Method:下料方式 | By Pneumatic 气动 | |
| ELECTRIC PARTS电机部分 | ||
| Main Motor:主电机 | 5.5kw | |
| Ink Motor:运墨电机 | 75w | |
| Winding Motor:收卷电机 | 5.5kw | |
二,MAIN PARTS LIST主要配件清单
| 名称 | 品牌 | 特点 |
|
主电机 |
|
China's first-tier brand ZhanPeng RuiAn |
|
PLC 触摸屏 |
|
China's first-tier brand HuiChuan Technology 汇川技术 |
|
变频器 |
|
China's first-tier brand HuiChuan Technology 汇川技术 |
|
运墨电机 |
|
China's first-tier brand ZhanPeng RuiAn |
|
低压电器/按钮 |
|
France Schneider |
|
电源开关 |
|
France Schneider |
|
工业固态 |
|
China's first-tier brand Zhejiang Meigeer 浙江美格尔 |
|
网纹辊 |
|
China's first-tier brand YunCheng ShangHai上海运城 |
|
铝辊 |
|
China's first-tier brand ChuangBo WenZhou 温州创博 |
|
摆杆张力 |
|
China's first-tier brand XinLinDa HangZhou 杭州新林达 |
|
纠偏 |
|
China's first-tier brand EnRuiSi ChongQing 重庆恩瑞斯 |
|
气动元件 |
|
AirTAC TaiWan 台湾亚德客 |
| Bearing轴承 |
|
China's first-tier brand Harbin 哈尔滨 |
三,Product real shot image 产品实拍图
|
|
|
unwinding 放卷 |
|
Web Guiding 纠偏 |
|
Pre-Press Traction 印前牵引 |
|
Printing Group 印刷组 |
|
Automatic ink supply 自动上墨 |
|
Single doctor blade+Ceramic anilox roller 单刮刀+陶瓷网纹辊 |
|
Roller Helical Gear Drive 版辊斜齿轮传动
|
|
Hydraulic Locking Roller 液压锁版 |
|
Inter-color Drying 色间干燥 |
|
Main Motor 主电机 |
|
Synchronous Belt Drive 同步带传动
|
|
Oven Length: 2.5m 烘箱长度 |
|
Control Panel 操作面板 |
|
Post-Press Traction 印后牵引
Tension arm swing张力摆臂
Friction winding 摩擦收卷 |
| Printing Group Configuration印刷组配置 | |
|
Manual color registration 手动套色 Manual forward and backward roller 手动进退版辊 |
| Optional Configuration 可以选择的配置 | |
|
Metal Anilox Roller 金属网纹辊 (It's cheap, but it's difficult to print small characters) -USD600/color
|
|
Enclosed Doctor Blade封闭式刮墨刀 (The printing speed can approach 100 m/min) +USD900/color
|
|
Electric Register电动套色 +USD500/color
|
|
Camera +USD3,000 |
|
8kw Ordinary corona treater +USD3,000 |
|
Corona treater with variable power following machine speed +USD4,500 |
