Product Details:
|
| NAME: | Flexo Printing Machine No Change Cylinder If Print Picture Size Is Stable ,bag Length Different No Change Cylinder | ||
|---|---|---|---|
| Highlight: | flexo printing machine no change cylinder,high speed flexo printing machine,flexo printing machine stable print size |
||

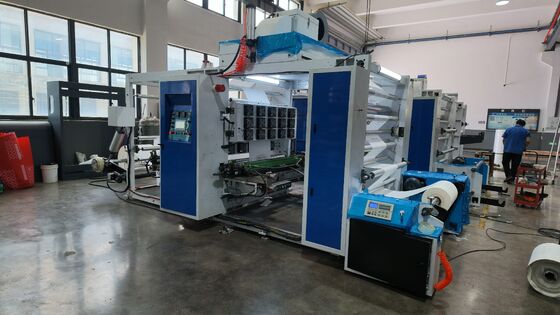

Flexo printing machine no change cylinder if print picture size is stable ,bag length different no change cylinder
3C 1200 柔版印刷机Flexo Printing Machine
*每次配置单发送都需要向公司做沟通记录标注,方便后续核对细节~ 请不要发给您公司以外的人员,以防信息回流影响三方合作效率.感谢信任!
核心参数
| 名称name | 参数parameter |
|
印刷颜色:Printing Colors:
|
3 色 colors |
|
最大材料宽度:Maximum material width:
|
1250mm |
|
最大印刷宽度:Maximum print width:
|
1200mm |
|
印刷长度:Print length:
|
客户自定customers sample |
|
最大袋长Maximum bag length
|
3000mm |
|
网纹辊 Anilox roller
|
陶瓷网纹辊 CERAMIC ANILOX ROLLER |
|
版辊驱动Plate roller drive
|
伺服电机SERVO MOTOR |
|
网纹辊驱动Anilox roller drive
|
伺服电机 SERVO MOTOR |
|
底辊驱动Bottom roller drive
|
SERVO MOTOR |
|
最大机械速度Maximum mechanical speed
|
120m/min |
|
印刷速度Printing speed
|
25~100m/min |
|
料卷直径范围Diameter range of material reels
|
≤1000mm |
| 气涨轴 air shaft | ￠76mm*2 |
| 整机功率 total power | 42KW |
| 主机架main machine frame | 铸铁厚度CAST IRON THICKNESS 75mm |
| 齿轮精度gears precision | 5级GRADE |
| 备注 REMARKS | |
| 版辊/网纹辊数量PRINT CYLINDER /ANILOX ROLLER QTY | 3条 PCS |
| 版辊周长PRINT CYLINDER GIRTH | 客户自定 CUSTOMER DESIGN |
| 网纹辊线数ANILOX ROLLER LPI | 300LPI (可定制)(can be customized) |
| 版材厚度 RESIN PLATE THICKNESS |
无限制 (版辊与底辊无齿轮传动)No restrictions (plate roller and bottom roller without gear transmission)
|
| 电源ELECTRICAL POWER |
默认 380V 3P 50hz (客户可指定) 380V 3P 50Hz (customers can request something else) |
5500mm×1400mm×3000mm
机器重量MACHINE WEIGHT :约ABOUT 5000Kg
一,机器主要组成MACHINE MAIN MAKE UP
| 放料部分 UNWINDER PART | ||
| 张力控制TENSION CONTROLL | 磁粉5kg 5 kg of magnetic powder | |
| 上料方式Feeding Method | 气动上料+锁紧Pneumatic feeding and locking | |
|
牵引部分 traction section
|
||
|
材料牵引 Material Traction
|
印后牵引 Post-print traction
|
|
|
印刷部分printing section
|
||
|
印刷组printing group
|
陶瓷网纹辊+双刮刀Ceramic Anilox Roller with Double Scraper | |
|
版辊驱动Plate roller drive
|
伺服电机直驱Servo motor direct drive
|
|
|
底辊伺服Bottom Roller Servo
|
伺服电机直驱Servo motor direct drive
|
|
|
版辊离合Plate Roller Clutch
|
液压缸Hydraulic cylinder
|
|
|
色组离合color group separation
|
液压缸Hydraulic cylinder
|
|
|
版辊锁紧Plate Roller Locking
|
液压缸Hydraulic cylinder
|
|
|
色组锁紧Color group locking
|
液压缸Hydraulic cylinder | |
|
印刷压力printing pressure
|
手动调节Manual adjustment
|
|
|
色组进退Color Group Advancement and Retreat
|
手动调节Manual adjustment
|
|
|
烘干部分 Drying section
|
||
|
烘干方式Drying Method
|
电加热 Electric heating
|
|
|
主烘箱main oven
|
加热管: 1 pcs +4组分扇 Heating tube: 1 pc, 4-component fan
|
|
|
烘干部位备份 Drying section backup
|
反面印刷烘箱Reverse Printing Oven
|
|
|
收卷部分 Winding section
|
||
|
张力控制tension control
|
电机+磁粉Motor Magnetic Particle
|
|
|
下料方式 Cutting Method
|
气动 Pneumatic | |
|
电机部分 Motor Section
|
||
|
版辊伺服Plate Roller Servo
|
7.5kw*3 | |
|
同步动力synchronous power
|
5.5kw | |
|
网纹辊动力Anilox Roller Power
|
1.8kw*3 | |
| 收卷电机winding motor | 2.2kw | |
二,主要配件清单 Main Accessories List
| 名称name | 品牌brand | 特点feature |
|
伺服电机 servo motor |
|
国内一线品牌 汇川技术 Leading domestic brands Inovance Technology
|
|
PLC 触摸屏 touch screen |
|
中国一线品牌 汇川技术 China's Top Brand Inovance Technology
|
|
变频器inverter |
|
中国一线品牌 汇川技术 China's Top Brand Inovance Technology
|
|
运墨电机innk motor |
中国一线品牌 China's Top Brand Rui'an |
|
|
低压电器/按钮Low-Voltage |
|
法国施耐德Schneider, France |
|
电源开关power switch Appliances/Buttons |
|
法国施耐德Schneider, France
|
|
网纹辊anilox roller
|
|
中国一线品牌 上海运城China's Top Brand Shanghai Yuncheng |
|
铝辊aluminum roller
|
|
中国一线品牌 温州创博China's Top Brand Wenzhou Chuangbo |
|
fix deviations
|
|
中国一线品牌 重庆恩瑞斯Chongqing Enruis
|
|
气动元件 pneumatic part |
|
台湾亚德客 Airtac Taiwan |
| 轴承 bearing |
|
中国一线品牌 哈尔滨China's Top Brand Harbin |
三,产品实拍图PRODUCTS REAL PICTURE
|
放卷UNWINDER |
|
印刷组PRINT UNIT |
|
陶瓷网纹辊+封闭式刮墨刀Ceramic Anilox Roller Closed Ink Scraper
|
|
*也可以选着油墨无压力的刮刀*You can also choose a pressure-free ink squeegee |
|
色组液压锁PRINT UNIT HYDRAULIC LOCK PART |
|
背面印刷,烘干 BACK PRINT OVEN |
|
烘箱OVEN |
|
收卷前 偏转调节 REWINDER EPC ADJUST |
|
操作面板OPERATION PANEL |
|
收卷机REWINDER PART |
