Product Details:
|
| Name: | Hdpe Ldpe Lldpe Pla Degradable Courier Bag Making Machine | ||
|---|---|---|---|
| Highlight: | HDPE LDPE courier bag making machine,LLDPE PLA degradable bag machine,plastic bag making machine with warranty |
||

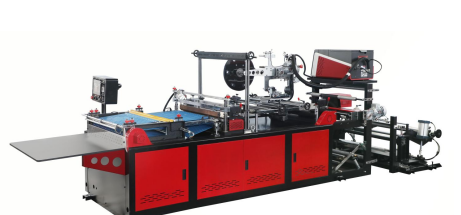

hdpe ldpe lldpe pla degradable Courier Bag Making Machine
Courier Bag Making Machine
| 用途 Application |
|
本机用于印刷或非印刷的聚乙烯(PE)塑料薄膜的热切边封制袋,整机配有电脑自动定长,自动色标跟踪,自动断胶,离型膜断料自动停机,薄膜断料自动停机,自动张力等功能(整机2项专利).是目前尤为理想和先进的快递袋生产设备. This machine is used for making printed or non-printed PE bottom-sealed bag. The machine (with 2 patents) has functions like auto computerized length setting, auto color-based object tracking, auto glue cutoff, automatic stop system for grease-proof film or film breakage, auto tension control, etc. It is the most ideal and advanced mailing bag production equipment at present. |
| 样品图片 Sample Picture |
|
|
| 报价 Quotation | ||
|
型号 Model |
单价 Unit Price |
选装项 Optional Function |
| 800MM | FOB NB USD 12,500.00 |
1. Sheet Film Servo Tension Folder Device Extra Cost: 1) 800型片膜(磁粉张力)三角架 800MM Magnetic Powder Tension Folder USD 3600 2) 800型片膜(伺服张力)三角架 800MM Servo Tension Folder USD 7000.00 3) 900型片膜(磁粉张力)三角架 900MM Magnetic Powder Tension Folder USD 3600 4) 900型片膜(伺服张力)三角架 900MM Servo Tension Folder USD 7000.00 5) 1000型片膜(磁粉张力)三角架 1000MM Magnetic Powder Tension Folder USD 5300.00 6) 1000型片膜(伺服张力)三角架 1000MM Servo Tension Folder USD 12,500.00 2. 桶膜电机张力系统 Roll Film Motor Tension System Extra USD1800.00 3. 伺服泵胶枪总成(专利技术)Servo Pump Glue Gun (Patent Technology) Extra USD2650.00 4. 打孔器组件Punch Device Extra USD 150.00 5. 破口组件Breach Device Extra USD 180.00 6. 高架插底组件(含纠偏储料)Elevated Components (Bottom Gusset) Extra USD 1100.00 注:选装插底组件必须加配(电机,伺服张力系统) Remarks: Optional bottom gusset device must be equipped with motor, servo tenstion system; |
| 900MM | FOB NB USD 13,600.00 | |
| 1000MM | FOB NB USD 14,000.00 | |
| 1100MM | FOB NB USD 14,600.00 | |
| 1200MM | FOB NB USD 16,500.00 | |
| 1300MM | FOB NB USD 17,000.00 | |
| 1400MM | FOB NB USD 19,700.00 | |
| 1500MM | FOB NB USD 26,800.00 | |
| 技术参数 Technical Parameters | |
| 型号 Model | 800 - 900 - 1000 - 1100 - 1200 - 1300 - 1400 - 1500 |
|
最大制袋成品长度(厘米cm) Max. Finished Bag Length (cm) |
70 - 80 - 90 - 100 - 110 - 120 - 130 - 140 |
|
最大制袋成品宽度(厘米cm) Max. Finished Bag Width (cm) |
70-100 |
|
卷膜最大放卷直径(厘米cm) Max. Roll Film Diameter (cm) |
75 |
|
离型膜最大放卷直径(厘米cm) Max. Release Film Roll Dia. (cm) |
44 |
|
生产速度(米/分钟) Production Speed (m/min) |
70米/分钟(速度快慢取决于:同时生产不同的材料,不同的袋子,不同规格) 70 m/min (depend on production requirement, bag type, specification) 20-320 pcs/minute |
|
机器重量(千克kg) Machine Weight (kg) |
1350-2150 |
|
外形尺寸(毫米mm) Dimensions (mm) |
桶膜版本Roll Film:长(L)6080×宽(W)1200×高(H)1980 片膜版本Sheet Film:长(L)7100×宽(W)2350×高(H)2240 |
|
总功率(千瓦kw) Total Power (KW) |
10—20 |
| 主要性能及特点 Main Performance &Features |
| 上料部分:Loading part: |
|
①气缸抬料,利用气缸的快速动作,减少上料时间的浪费,能够承受一定的负载,确保薄膜在运行的过程中保持稳定,更易于自动化控制.(卷膜最大放卷直径可达750mm),无需人工抬料,确保节省操作人员用时和省力 ① Lift film by cylinder, rapid action of the cylinder avoids the waste of feeding time, it can bear a certain load. The film is not easy to break during operation, and is easier for automation control. The maximum roll film diameter can reach 750mm, no manual lifting is required, ensuring time and labor saving. |
 |
|
②自动纠偏控制系统,搭配U型超声波传感器不抖动易调节精准定位.支持追线,追边,对中三种工作方式,智能检测传感参数,精度高,反应敏捷,误差更小 ② Automatic correction control system with U-shaped ultrasonic sensors is equipped for stable running and precise positioning. Support three working methods: line tracking, edge tracking, centering. It intelligently detects sensor parameters with high precision, quick response, and minimal error. |
| |
|
③无料自动停机,当制袋机出现断料,无料情况时,自动停机,可防止因缺料而生产不合格的产品,避免了操作人员重新穿料的繁琐步骤,节省了时间和人力成本.自动停机A,B方式2种(A触碰式停机,B计算卷径式停机) ③ No material auto stop system. When there are breakages or out of material, the machine will automatically stop to prevent the production of unqualified products. It avoids cumbersome manual labor of re-threading, also saves time and reduces labor costs. There are two automatic stop methods: A) touch stop, B) roll diameter calculation stop. |
| |
|
④张力控制方式为磁粉制动器系统,根据薄膜厚薄不同来调节张力,靠磁粉刹车的拉力来控制薄膜.采用耐热性能优质的磁粉,温升低,输出转矩稳定,响应速度快,运转平稳,振动小,噪音低,可高频率工作 选装项2:桶膜磁粉张力改电机张力系统:主要是为了确保薄膜能以合适的速度和张力进行释放.从速度方面来讲,通过变频器可以改变电机的转速.例如,当制袋速度加快时,放料电机转速也相应提高以此来匹配制袋节奏.在张力控制上,会有张力传感器来检测薄膜张力,如果张力过大,控制系统会降低电机转速.比如,当材料出现卡顿导致张力突然增大时,控制系统收到张力传感器的信号,就会立刻调整放料电机的转速,放置薄膜被拉断,确保在多层材料放料时,每层材料的输送速度和张力都能达到协调一致 ④ The tension control method is magnetic powder brake system, which adjusts the tension according to the thickness of the film and uses the pull of the magnetic powder brake to control the film. High-quality heat-resistant magnetic powder is used, with low temperature rise, stable output torque, fast response speed, smooth operation, low vibration, low noise, and the ability to work at high frequency. ④ Optional function 2: Change roll film magnetic powder tension system to motor tension system:to ensure the film is released at proper speed and tension. In terms of speed, the frequency converter can adjust motor speed. For example, when production speed increases, the speed of film release motor is also increased accordingly. As for tension control, a tension sensor is installed to monitor film tension. If tension is too high, the control system will reduce motor speed. For instance, if material jams cause a sudden tension rise, the control system will receive the sensor signal and instantly adjust the motor speed to prevent film breakage. This ensures coordinated speed and tension for multi-layer material release. |
|
④magnetic powder brake system
|
|
⑤选装项1:片膜(磁粉张力)三角机(用于制作片膜对折,三角折边机采用电机控制双层储料摆臂,使得薄膜有更多的储存空间,走料相对平稳) 选装项1:选装项1:片膜(伺服张力)三角机(主要是为了精准的控制薄膜的释放,伺服电机根据预设的参数和指令来驱动放料轴,使薄膜能以稳定的速度和张力放出,比如,当制袋机需要以一定的速度制作袋子时,伺服控制系统会柑橘制袋速度,袋子尺寸等因素计算出放料的速度,然后驱动电机安装这个速度运转,同时,他还能对放料的张力进行实时监控和调整.如果张力过大,可能会导致薄膜拉伸变形甚至断裂.张力过小,薄膜可能会松弛,影响制袋精度和印刷色标准确度.确保在多层材料放料时,每层材料的输送速度和张力都能达到协调一致) ⑤Optional function 1: Sheet film (magnetic powder tension) triangle machine (used to fold film in half, triangle folding machine controls double-layer material storage swing arm by motor, which allows the film to have more storage space, and has relatively stable material feeding.) Optional function 1: Sheet Film (Servo Tension) Folding Device (the main function is to precisely control film release, the servo motor drives the release shaft based on preset parameters, ensuring that the film can be released in stable speed and tension. For example, when the bag making machine runs at a specific speed, the servo control system will calculate the release speed based on bag making speed and bag size, then drives the motor accordingly. At the same time, it will monitor and adjust tension of film release in real-time. Excessive tension may stretch or break the film, while insufficient tension may cause slack, affecting bag making precision and printing color accuracy. This ensures coordinated speed and tension for multi-layer material release.) |
|
Sheet film triangle machine
|
| 主机部分:Host part: |
|
①电脑系统采用国内高端品牌PLC,程序由本公司独家编写,操作人员可通过触摸屏轻松进行参数设置,电脑监控生产过程和查看电子故障信息.采用后送料模拟量同步控制,可实现送料速度与制袋机其他工序的协调一致.前后双伺服电机系统控制使得卷膜过料无拉伸,一个伺服电机控制离型膜与薄膜粘合部分,另外一个伺服电机控制切刀后的胶辊,精确控制薄膜的输送长度和速度实现薄膜高精度的切割热烫 ① The computer system uses a high-end domestic brand PLC, with the program exclusively written by our company. Operators can easily set parameters through the touchscreen. Computer monitors the production process and displays electronic fault information. Post-feeding analog synchronous control system can achieve the coordination of the feeding speed with other processes of the bag making machine. The front and rear servo motors make the film roll feed without tension. One servo motor controls the adhesion part between grease-proof film and film, the other one controls the rubber roller behind the cutter, accurately controlling paper feeding length and speed to achieve high-precision cutting. |
|
PLC:
|
|
②色标跟踪,卷膜正反面印刷均可跟踪,简易的设定方式,精准识别定位薄膜上的图形,实时检测,丢标自动停机 ② Color-based object tracking, both front and back printing of roll film can be tracked, easy setup, precise identification and positioning of images on the paper, real-time detection, object loss auto-stop. |
|
Color-based object tracking:
|
|
③全自动电脑同步离型膜断胶控制系统,离型膜断料,无料自动停机系统,专利技术(高速稳定,断胶干净整洁无拉胶)离型膜最大放卷直径可达440mm.断胶设计使得设备切割热烫处不粘胶,生产过程更加稳定.产品优势在快递袋断胶处撕开离型膜时更加快捷,无需费力寻找开口处 ③ Full automatic computer-synchronized grease-proof film glue cutoff control system, grease-proof film breakage, no material auto stop system, patented technology (high speed and stability, clean glue cutoff without stringing) the maximum diameter of grease-proof film roll can reach 440mm. Glue cutoff design makes hot cutting part non-sticky, and the production process is more stable. It is faster to tear off grease-proof film at the glue cutoff part of the mailing bag, no need to find bag opening. 选装项4:伺服泵胶枪总成专利技术(优势在于快递袋上的热熔胶水最薄和最厚处相差4丝内,使得热熔胶水喷涂更加均匀,品质显著提升,尤其是做一些知名品牌快递袋,如顺丰,京东,天猫,邮政等快递袋) ④ Optional function 4: Servo Pump Glue Gun Assembly (patented technology) Advantage: Ensures hot melt adhesive thickness varies within 0.04mm, achieving uniform hot melt spraying, significantly improving quality, especially for making well-known brand courier bags (e.g., SF Express, JD, Tmall, China Post, FedEx, DHL, etc). |
|
Release film breakage equipment:
Optional function 4: Servo Pump Glue Gun Assembly
|
|
④热熔胶机,与主机系统连接,精准控制热熔胶厚度和位置.配备高品质热熔胶机和反抽式喷枪头,进口电磁阀.使得胶水喷涂均匀,断胶干净无拉丝 ④ Hot melt glue machine, connected to the host system, accurately controls the thickness and position of hot melt glue. Equipped with high-quality hot melt glue machine and reverse suction spray nozzle, imported solenoid valve. Make the glue spray evenly, and the glue is cut cleanly without stringing. |
|
④ Hot melt glue machine:
|
|
⑤热切刀采用合金材质,具有良好的耐磨性和腐蚀性,硬化处理不易变形,特殊配方不易粘料等优势.加热管温度控制系统使得袋口烫合牢固,平整,温度可调整范围:1-4400C ⑤ The hot cutter is made of alloy, which is wear-resistant and corrosion resistant, not easily deformed after hardening treatment, and not easily sticky for special material. The heating tube temperature control system ensures that the bag opening seal is firm and flat, temperature adjustment range : 1-440 0C. |
|
The hot cutter is made of alloy:
|
|
⑥胶辊均有良好的弹性,能在一定程度上缓冲制袋过程中的冲击和震动.耐磨耐用,可长时间承受频繁摩擦和压力,不易磨损和变形.具有良好的防滑性能和外圆平整度 ⑥ The rubber roller have good elasticity, which can buffer the impact and vibration during production. Wear resistant and durable. It has good anti-slip performance and outer edge flatness. |
|
rubber roller:
|
|
⑦选装项4:打孔器采用进口钢料,高速耐用,新型叉齿模具针头,最高可达250次/分钟 ⑦ Optional function 4: The hole puncher uses imported steel material, it is fast and durable. The new type of fork tooth mold needle can reach up to 250 times/min. |
|
|
⑧选装项5:破口组件用于(桶膜破口功能,把桶膜一边破开形成一个信封口形状,便于后续的物品填装) 选装项6(高架插底功能,主要是为了让袋子底部形成一个平整且能盛装物品的形状,常见于立体袋等类型的袋子制作) ⑧ Optional function 5: Notch unit (roll film notching function, open one side of roll film to form an envelope-shaped opening, facilitating subsequent material filling) Optional function 6: (High-frame bottom insertion function: for forming a flat, material-containing shape at the bag bottom, commonly used for making stand-up bags and similar bag types) |
|
Option 5 Notch unit Option 6 High-frame bottom insertion function
|
| 出料部分:Discharging part: |
|
①设备出料采用一出一方式,平板式工作台面,电脑自动计个数,自动计批数,任意定长及可设定任意数报警自动停机停留,停留时间可电脑屏幕设置 ① The equipment discharges one bag each time, with a flat worktable. Support automatic pieces and batches counting. The machine can stop automatically with any length and alarms. The stay time can be set on the computer screen. |
|
|
②静电消除,采用大功率静电消除器,性能稳定,输出可靠,功率恒定,可长时间工作输出.消除袋子外层静电,使得成品袋子出料整齐,平稳的送出.客户在使用袋子过程中不易吸附 ② Static electricity elimination: use a high-power static eliminator with stable performance, reliable output, constant power, and long-term working output. It eliminates static electricity on the surface of outer bag, making the discharging finished bag neat and smooth. Bags will not be easily adsorbed together during the use. |
|
|
③送料皮带采用光滑PU工业皮带,耐高温,不易拉长,防静电.结合制袋速度与袋子大小,自行调整皮带的速度快慢,能够平稳的将袋子从切刀工序输送到出料工作台 ③ The feeding belt uses a smooth PU industrial belt, heat-resistant, stretch-resistant, and anti-static. It adjusts belt speed based on bag-making speed and bag size, smoothly conveying bags from the cutting process to the output table. |
|
| 设备标准配置 Standard Configuration | |||
|
序号 No. |
名称 Item |
数量 Qty |
产地 Origin |
| 1 |
无料自动停机装置 Auto Stop Device |
2套 2 sets |
自研 Self-developed |
| 2 |
U型超声波传感器 U-shaped Ultrasonic Sensor |
1套 1 set |
中国·广东 Guangdong, China |
| 3 |
磁粉(5kg) Magnetic Powder |
1套 1 set |
中国·浙江 Zhejiang, China |
| 4 |
张力控制器 Tension Controller |
1套 1 set |
自研 Self-developed |
| 5 | 伺服电机 Servo Motor (800 3.0kw,900-1100 4.4kw, 1200-1500 5.5kw) |
2台 2 sets |
中国·江苏 Jiangsu, Zhejiang |
| 6 | 驱动器 Drive (800 3.0kw,900-1100 4.4kw, 1200-1500 5.5kw) |
2台 2 sets |
中国·江苏 Jiangsu, Zhejiang |
| 7 |
电脑PLC控制器 PLC Controller |
1套 1 set |
中国·江苏 Jiangsu, Zhejiang |
| 8 |
液晶显示屏 LCD |
1套 1 set |
中国·北京 Beijing, China |
| 9 |
三相电机 3 Phase Motor |
1台 1 set |
中国·浙江 Zhejiang, China |
| 10 |
热熔胶机 Hot Melt Glue Machine |
1台 1 set |
中国·广东 Guangdong, China |
| 11 |
变频器 Frequency Converter |
3台 3 sets |
中国·山东 Shandong, China |
| 12 |
减速箱电机 Gearbox Motor |
2台 2 sets |
中国·浙江 Zhejiang, China |
| 13 |
同步电机 Synchronous Motor |
1台 1 set |
中国·浙江 Zhejiang, China |
| 14 |
交流电机 AC motor(0.75kw) |
1个 1 set |
中国·安徽 Anhui, China |
| 15 |
全自动电脑同步张力离型膜涂胶控制系统.专利技术(高速,稳定,涂胶平整) Fully-auto Computer-synchronized Tension grease-proof film gluing control system (Patented Technology) (High Speed, Stable, smooth glue coating) |
1套 1 set |
自研 Self-developed |
| 16 |
喷胶枪头+电磁阀 Glue Nozzle + Solenoid Valve |
1套 1 set |
中国·广东 Guangdong, China |
| 17 |
自动上料纠偏机 Automatic Feeding Correction System |
1台 1 set |
自研 Self-developed |
| 18 |
光电跟踪器 Photo-cell Sensor |
1支 1 pc |
中国·浙江 Zhejiang, China |
| 19 |
气涨轴,铁块轴 Air Shaft, Iron Block Shaft |
2根 2 pcs |
自研 Self-developed |
| 20 |
输送皮带 Conveyor Belt |
1付 1 set |
中国·上海 Shanghai, China |
| 21 |
合金刀(不易粘,不变形) Alloy Knife (not easy to stick or deform) |
1把 1 pc |
自研 Self-developed |
| 22 |
断胶装置(离型膜自动停机) Glue Cutoff Device (grease-proof film auto stop device) |
1套 1 set |
自研 Self-developed |
| 23 |
固态温度控制(1-440C°) Solid State Temperature Control (1-440C°) |
1套 1 set |
中国·浙江 Zhejiang, China |
| 24 |
静电消除总成 Static Eliminator Assembly |
1套 1 set |
中国·广东 Guangdong, China |
| 25 |
胶辊 Rubber Roller |
7根 7 pcs |
自研 Self-developed |
| 26 |
收料木板平台 Rewinding Wooden Table |
1块 1 pc |
自研 Self-developed |
| 27 |
机身结构(加厚国标槽钢) Machine Body Structure (National Standard Thickened Channel Steel) |
1套 1 set |
自研 Self-developed |
| 工厂实拍图 Factory Photo |
|
|
|
| 展会 Exhibition |
| |
| |
| |
| |
订购事项Business Terms
一,交货期:收到30%预付款后30-45天内交货；
Delivery Time:
Within 30-45 days after the receipt of 30% advance payment.
二,付款方式:预付定金30%开始生产设备(合同签订后 2 个工作日内乙方向甲方支付该款项)
结清尾款70%发货前付清(约定时间设备已制造完毕,且经双方初步确定验收合格)
Payment Terms:
30% advance payment before production (to be paid within 2 workings days after signing the contract)
70% balance before delivery from Ruitai Factory (Machine finished production & after the approval of Buyer)
三,发货标准:甲方设备的包装要符合规定,且适合长途运输,多次搬运和装卸,并有减振,防冲击的措
施.包装应按设备特点,按需要分别加上防潮,防霉,防锈,防腐蚀的保护措施,以保证货物安全运抵合同指定的地方.
3. Delivery Standard:
Ruitai’s delivery packaging should comply with regulations, suitable for long-distance transportation, multiple handling and loading/unloading, and have measures to reduce vibration and prevent impact. The packaging should be equipped with needed moisture-proof, anti-mold, anti-rust and anit-corrosion protection measures according to the characteristics of the equipment, to ensure the safe delivery of machine to the designated place.
四,安装调试:应根据买方的指示派遣安装调试人员(工资150美元/天, 但买方需及时提供正式的邀请函,以便安装调试人员及时申请签证. 在调试期间和保修期间,买方承担调试人员的往返机票,并且承担调试人员在当地的食宿交通等费用,并且要保证调试人员在当地的人身安全. 设备调试完成后, 买方出具设备合格证书, 卖方调试人员方可回中国.
4. Installation & Commission:
Ruitai will despatch engineers (Salary USD 150.00 per day) as per the Buyer's instructions, but the Buyer should provide Formal Invitation Letter for the Seller's engineer to apply for visa. For expenses occurring during the installation period and warranty period, the Seller should cover the round air tickets, and all the charges (such as food, hotels and transportation) during their stay, also need to make sure their safety. After completion, the Buyer will give the test report for equipment, and then engineers can be back to China.
