| Name: | High Speed Pe Pp Opp Bopp Double Channel Express Bag Making Machine | ||
|---|---|---|---|
| Highlight: | high speed plastic bag making machine,double channel express bag machine,pe pp opp bopp bag making machine |
||

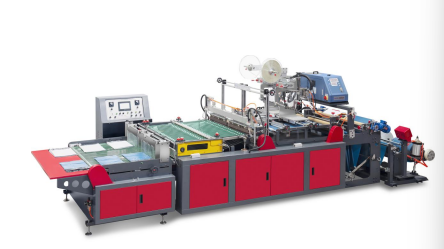

high speed pe pp opp bopp Double Channel Express Bag Making Machine
Double Channel Express Bag Making Machine
| 用途 Application |
|
本机用于印刷或非印刷的聚乙烯(PE)塑料薄膜的热切边封制袋,整机配有电脑自动定长,自动色标跟踪,自动断胶,缺料自动停机,自动张力,一出二自动理料等功能(整机3项专利).是目前尤为理想和先进的快递袋生产设备. This machine is used for hot cutting edge sealing and bag making of printed or non printed polyethylene (PE) plastic film. The whole machine is equipped with computer automatic length setting, automatic color code tracking, automatic glue breakage, automatic material shortage shutdown, automatic tension, and one out two automatic material sorting functions (3 patents for the whole machine). It is currently an ideal and advanced equipment for producing express bags. |
| 样品图片 Sample Picture |
|
|
| 报价 Quotation | ||||
| 型号Model | 单价Unit Price | 选装项 Optional Function | ||
| 1200型 | FOB NB USD25200.00USD |
1: 片膜(磁粉张力)双三角架Film (magnetic powder tension) double tripod USD6750.00 片膜(伺服张力)双三角架 Film (servo tension) double tripod USD 14000.00 2； 桶膜电机张力系统 Barrel film motor tension system USD2700.00 3: 打孔器组件 Drilling tool component USD290.00 |
||
| 1300型 | FOB NB USD26200.00USD | |||
| 1400型 | FOB NB USD28000.00USD | |||
| 技术参数 Technical Parameters | |
| 型号 | 1200 - 1300 - 1400 |
|
最大制袋成品长度(厘米cm) Max. Finished Bag Length (cm) |
45 - 50 - 55 |
|
最大制袋成品宽度(厘米cm) Max. Finished Bag Width (cm) |
45 |
|
卷膜最大放卷直径(厘米cm) Max. Roll Film Diameter (cm) |
75 |
|
离型膜最大放卷直径(厘米cm) Max. Release Film Roll Dia. (cm) |
44 |
|
生产速度(米/分钟) Production Speed (m/min) |
70米/分钟(速度快慢取决于:同时生产不同的材料,不同的袋子,不同规格) 70 m/min (depend on production requirement, bag type, specification) (20-320pcs/min)x2 |
|
机器重量(千克kg) Machine Weight (kg) |
2800 |
|
外形尺寸(毫米mm) Dimensions (mm) |
6450×2280×1980 |
|
总功率(千瓦kw) Total Power (KW) |
20 |
| 主要性能及特点 Main Performance &Features |
| 上料部分 Loading part: |
|
①气缸抬料,卷膜最大放卷直径可达750mm,无需人工抬料,确保节省用时和省力 Cylinder lifting, the maximum unwinding diameter of the film roll can reach 750mm, without the need for manual lifting, ensuring time and effort savings |
 |
|
②自动纠偏控制系统,搭配U型超声波传感器不抖动易调节精准定位.支持追线,追边,对中三种工作方式,智能检测传感参数,精度高,反应敏捷,误差更小 Automatic correction control system, coupled with U-shaped ultrasonic sensors, does not shake and is easy to adjust for precise positioning. Supports three working modes: line tracing, edge tracing, and alignment. It intelligently detects sensor parameters with high accuracy, agile response, and smaller errors |
|
|
③断料,无料自动停机A.B方式(A触碰式停机,B计算卷径式停机) Cut off material, no material automatic shutdown A.B mode (A touch shutdown, B calculation roll diameter shutdown) |
| |
|
④张力控制方式为磁粉制动器系统,采用耐热性能优质的磁粉,温升低,输出转矩稳定,响应速度快,运转平稳,振动小,噪音低,可高频率工作 The tension control method is a magnetic powder brake system, which uses high-quality heat-resistant magnetic powder with low temperature rise, stable output torque, fast response speed, smooth operation, low vibration, low noise, and can work at high frequencies 选装项2:桶膜磁粉张力改电机张力系统:主要是为了确保薄膜能以合适的速度和张力进行释放.从速度方面来讲,通过变频器可以改变电机的转速.列如,当制袋速度加快时,放料电机转速也相应提高以此来匹配制袋节奏.在张力控制上,会有张力传感器来检测薄膜张力,如果张力过大,控制系统会降低电机转速.比如,当材料出现卡顿导致张力突然增大时,控制系统收到张力传感器的信号,就会立刻调整放料电机的转速,放置薄膜被拉断,确保在多层材料放料时,每层材料的输送速度和张力都能达到协调一致 Option 2: Barrel film magnetic powder tension modification motor tension system: mainly to ensure that the film can be released at an appropriate speed and tension. In terms of speed, the motor speed can be changed through a frequency converter. For example, when the bag making speed increases, the speed of the feeding motor also increases accordingly to match the bag making rhythm. In tension control, there will be tension sensors to detect the tension of the film. If the tension is too high, the control system will reduce the motor speed. For example, when the material becomes stuck and causes a sudden increase in tension, the control system receives a signal from the tension sensor and immediately adjusts the speed of the discharge motor to break the film, ensuring that the conveying speed and tension of each layer of material can be coordinated and consistent when discharging multiple layers of material |
|
1.magnetic powder brake system
|
|
⑤选装项1:片膜(磁粉张力)三角机(用于制作片膜对折,三角折边机采用电机控制双层储料摆臂,使得薄膜有更多的储存空间,走料相对平稳) ⑤ Option 1: Film (Magnetic Powder Tension) Triangle Machine (Used for making film folding, the triangle folding machine uses a motor controlled double-layer storage swing arm to provide more storage space for the film and ensure relatively smooth feeding) 选装项1:选装项1:片膜(伺服张力)三角机(主要是为了精准的控制薄膜的释放,伺服电机根据预设的参数和指令来驱动放料轴,使薄膜能以稳定的速度和张力放出,比如,当制袋机需要以一定的速度制作袋子时,伺服控制系统会柑橘制袋速度,袋子尺寸等因素计算出放料的速度,然后驱动电机安装这个速度运转,同时,他还能对放料的张力进行实时监控和调整.如果张力过大,可能会导致薄膜拉伸变形甚至断裂.张力过小,薄膜可能会松弛,印象制袋精度和印刷色标准确度.确保在多层材料放料时,每层材料的输送速度和张力都能达到协调一致) Option 1: Option 1: Film (servo tension) Triangle Machine (mainly for precise control of film release, the servo motor drives the discharge shaft according to preset parameters and instructions, so that the film can be released at a stable speed and tension. For example, when the bag making machine needs to make bags at a certain speed, the servo control system calculates the discharge speed based on factors such as citrus bag making speed and bag size, and then drives the motor to install and operate at this speed. At the same time, it can also monitor and adjust the tension of the discharge in real time. If the tension is too high, it may cause the film to stretch, deform or even break. If the tension is too low, the film may relax, affecting the accuracy of bag making and printing color standards. Ensure the accuracy of multi-layer materials. When discharging materials, the conveying speed and tension of each layer of material can be coordinated and consistent |
|
Option 1: Film Triangle Machine
|
| 主机部分 Host part: |
|
①电脑系统采用PLC,后送料模拟量同步控制,四伺服电机系统控制,电机性能卓越,稳定易用,高速响应,使得卷膜过料无拉伸 The computer system adopts PLC, synchronous control of material delivery analog quantity, and four servo motor system control. The motor performance is excellent, stable and easy to use, and has high-speed response, making the film passing without stretching |
|
PLC:
|
|
②色标跟踪,卷膜正反面印刷均可跟踪,简易的设定方式,高识别,高反应,丢标自动停机 Color code tracking, printing on both sides of the roll film can be tracked, with a simple setting method, high recognition, high response, and automatic shutdown for label loss |
|
|
③全自动电脑同步离型膜断胶控制系统,离型膜无料自动停机系统,专利技术(高速稳定,断胶干净整洁无拉胶)离型膜最大放卷直径可达440mm Fully automatic computer synchronous release film breakage control system, automatic shutdown system for release film without material, patented technology (high-speed stability, clean and neat breakage without glue pulling), maximum unwinding diameter of release film can reach 440mm |
|
Full automatic computer-synchronized grease-proof film glue cutoff control system
|
|
④成品袋开口处采用断胶上胶式,热熔胶断胶机,配备高品质热熔胶机和反抽式喷枪头,进口电磁阀.使得喷胶断胶均匀,干净无拉丝 The opening of the finished bag is equipped with a broken adhesive type, a hot melt adhesive breaking machine, a high-quality hot melt adhesive machine, a reverse suction spray gun head, and an imported solenoid valve. Make the spray glue break evenly, clean and without any wire drawing |
|
|
⑤热切刀采用合金材质,不易变形,不易粘料等优势.智能式加热管温度控制系统使得袋口烫合牢固,平整,温度可调整范围:1-4400C The hot cutting knife is made of alloy material, which has the advantages of not being easily deformed and not easily sticking to materials. The intelligent heating tube temperature control system ensures that the bag opening is firmly and smoothly pressed, and the temperature can be adjusted within the range of 1-4400C |
|
|
⑥热切刀刀座增加双气缸,停机自动升至最高点,停机状态下不易烤化袋口 The hot cutting knife holder is equipped with dual cylinders, which automatically raise to the highest point when stopped, making it less likely for the bag opening to overheat during shutdown |
|
⑦胶辊均有耐高温,耐磨等特点 Rubber rollers have characteristics such as high temperature resistance and wear resistance |
| |
|
⑧选装项3:打孔器采用进口钢料,高速耐用,新型叉齿模具针头,最高可达250次/分钟 Option 3:The punch is made of imported steel material,which is high-speed and durable.The new fork tooth mold needle can reach up to 250 times per minute. Rubber rollers have characteristics such as high temperature resistance and wear resistance |
|
| 出料部分 Discharge section: |
|
①设备出料采用自动传送台一出二方式,电脑自动计数,任意定长及可设定任意数报警 The equipment adopts an automatic conveyor with one output and two outputs, and the computer automatically counts. The alarm can be set for any length and any number |
|
|
②静电消除,采用大功率静电消除器,性能稳定,输出可靠,功率恒定,可长时间工作输出,工作时无火花.使得成品袋子能整齐,平稳的送出 Static elimination, using high-power static eliminators, stable performance, reliable output, constant power, can work for a long time without sparks during operation. Enable finished bags to be neatly and smoothly sent out |
|
|
③送料皮带,采用光滑PU工业皮带,耐高温,不拉长,防静电,不易沾料 The feeding belt is made of smooth PU industrial belt, which is resistant to high temperature, does not stretch, anti-static, and not easy to stick to the material |
|
| 设备标准配置 Standard Configuration | |||
|
序号 No. |
名称 Item |
数量 Qty |
产地 Origin |
| 1. |
无料自动停机装置 Auto Stop Device |
4套4 sets |
自研 Self-developed |
| 2. |
U型超声波传感器 U-shaped Ultrasonic Sensor |
2套 2 sets |
中国·广东 Guangdong, China |
| 3. |
磁粉(5kg) Magnetic Powder |
2套 2 sets |
中国·浙江 Zhejiang, China |
| 4. |
张力控制器 Tension Controller |
2套 2 sets |
自研 Self-developed |
| 5. |
伺服电机(3.0kw) Servo Motor |
4台 4 sets |
中国·江苏 Jiangsu, Zhejiang |
| 6. |
驱动器(3.0kw) Drive |
4台 4 sets |
中国·江苏 Jiangsu, Zhejiang |
| 7. |
电脑PLC控制器 PLC Controller |
1套 1 set |
中国·江苏 Jiangsu, Zhejiang |
| 8. |
液晶显示屏 LCD |
1套 1 set |
中国·台湾 Taiwan, China |
| 9. |
三相电机 3 Phase Motor |
1台 1 set |
中国·浙江 Zhejiang, China |
| 10. |
热熔胶机 Hot Melt Glue Machine |
1台 1 set |
中国·广东 Guangdong, China |
| 11. |
变频器 Frequency Converter |
5台 5 sets |
中国·山东 Shandong, China |
| 12. |
减速箱电机 Gearbox Motor |
4台 4 sets |
中国·浙江 Zhejiang, China |
| 13. |
同步电机 Synchronous Motor |
2台 2 sets |
中国·浙江 Zhejiang, China |
| 14. |
交流电机 AC motor(0.75kw) |
1个 1 set |
中国·安徽 Anhui, China |
| 15. |
全自动电脑同步张力离型膜涂胶控制系统.专利技术(高速,稳定,涂胶平整) Fully-auto Computer-synchronized Tension grease-proof film gluing control system (Patented Technology) (High Speed, Stable, smooth glue coating) |
2套 2 sets |
自研 Self-developed |
| 16. |
喷胶枪头+电磁阀 Glue Nozzle + Solenoid Valve |
2套 2 sets |
中国·广东 Guangdong, China |
| 17. |
自动双上料纠偏机 Automatic Feeding Correction System |
1台 1 set |
自研 Self-developed |
| 18. |
光电跟踪器 Photoelectric tracker |
2支 2 pcs |
中国·浙江 Zhejiang, China |
| 19. |
气涨轴,铁块轴 Air Shaft, Iron Block Shaft |
4根 4 pcs |
自研 Self-developed |
| 20. |
输送皮带 Conveyor Belt |
1付 1 set |
中国·上海 Shanghai, China |
| 21. |
合金刀(不易粘,不变形) Alloy Knife (not easy to stick or deform) |
2把 2 pcs |
自研 Self-developed |
| 22. |
断胶装置(离型膜自动停机) Glue Cutoff Device (grease-proof film auto stop device) |
2套 2 sets |
自研 Self-developed |
| 23. |
固态温度控制(1-440C°) Solid State Temperature Control (1-440C°) |
2套 2 sets |
中国·浙江 Zhejiang, China |
| 24. |
静电消除总成 Static Eliminator Assembly |
1套 1 set |
中国·广东 Guangdong, China |
| 25. |
胶辊 Rubber Roller |
18根 18 pcs |
自研 Self-developed |
| 26. |
理料输送机(一出二) Material handling conveyor (one out two) |
1套 1 set |
自研 Self-developed |
| 27. |
机身结构12mm钢板(激光切割) Body structure 12mm steel plate (laser cutting) |
1套 1 set |
自研 Self-developed |
| 工厂实拍图 Factory Photo |
|
|
|
| 展会 Exhibition |
| |
| |
| |
| |
订购事项Business Terms
一,交货期:收到30%预付款后30-45天内交货；
Delivery Time:
Within 30-45 days after the receipt of 30% advance payment.
二,付款方式:预付定金30%开始生产设备(合同签订后 2 个工作日内乙方向甲方支付该款项)
结清尾款70%发货前付清(约定时间设备已制造完毕,且经双方初步确定验收合格)
Payment Terms:
30% advance payment before production (to be paid within 2 workings days after signing the contract)
70% balance before delivery from Ruitai Factory (Machine finished production & after the approval of Buyer)
三,发货标准:甲方设备的包装要符合规定,且适合长途运输,多次搬运和装卸,并有减振,防冲击的措
施.包装应按设备特点,按需要分别加上防潮,防霉,防锈,防腐蚀的保护措施,以保证货物安全运抵合同指定的地方.
3. Delivery Standard:
Ruitai’s delivery packaging should comply with regulations, suitable for long-distance transportation, multiple handling and loading/unloading, and have measures to reduce vibration and prevent impact. The packaging should be equipped with needed moisture-proof, anti-mold, anti-rust and anit-corrosion protection measures according to the characteristics of the equipment, to ensure the safe delivery of machine to the designated place.
四,安装调试:应根据买方的指示派遣安装调试人员(工资150美元/天, 但买方需及时提供正式的邀请函,以便安装调试人员及时申请签证. 在调试期间和保修期间,买方承担调试人员的往返机票,并且承担调试人员在当地的食宿交通等费用,并且要保证调试人员在当地的人身安全. 设备调试完成后, 买方出具设备合格证书, 卖方调试人员方可回中国.
4. Installation & Commission:
Ruitai will despatch engineers (Salary USD 150.00 per day) as per the Buyer's instructions, but the Buyer should provide Formal Invitation Letter for the Seller's engineer to apply for visa. For expenses occurring during the installation period and warranty period, the Seller should cover the round air tickets, and all the charges (such as food, hotels and transportation) during their stay, also need to make sure their safety. After completion, the Buyer will give the test report for equipment, and then engineers can be back to China.
