Product Details:
|
| Name: | Hot Pp Opp Bopp Courier Packing Plastic Cutting Bag Making Machine | ||
|---|---|---|---|
| Highlight: | Hot pp opp bopp plastic bag machine,Courier packing bag making machine,Plastic cutting bag machine |
||

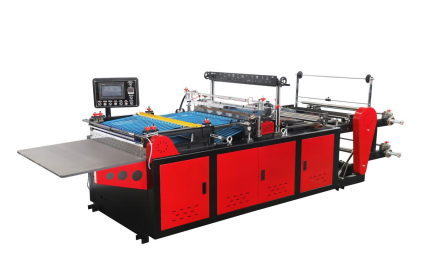

Hot pp opp bopp courier packing plastic Cutting Bag Making Machine
|
本机用于BOPP,OPP,POF,PE 等印刷及非印刷的塑料薄膜的热切制袋,整机配有电脑自动定长,自动色标跟踪,自动打圆孔.是制作袜子袋,毛巾袋,面包袋,快递袋,服装袋,饰品袋等的理想设备. This machine is used for hot cutting and bag making of printed and non printed plastic films such as BOPP, OPP, POF, PE, etc. The whole machine is equipped with computer automatic length setting, automatic color code tracking, and automatic round hole punching. It is an ideal equipment for making sock bags, towel bags, bread bags, courier bags, clothing bags, accessory bags, and more. |
| 样品图片 Sample Picture |
|
|
| 报价quotation | ||
| 型号Model | 单价Unit Price | 选装项 Optional Function |
| 500型 | FOB NB USD5500.00 |
纠偏机Correction machine Extra USD1000.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1000.00 |
| 600型 | FOB NB USD5700.00 |
纠偏机Correction machine Extra USD1000.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1000.00 |
| 700型 | FOB NB USD5900.00 |
纠偏机Correction machine Extra USD1200.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1200.00 |
| 800型 | FOB NB USD6000.00 |
纠偏机Correction machine Extra USD1300.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1300.00 |
| 900型 | FOB NB USD6900.00 |
纠偏机Correction machine Extra USD1400.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1400.00 |
| 1000型 | FOB NB USD7500.00 |
纠偏机Correction machine Extra USD1500.00; 高架Elevated Extra USD270.00; 输送台conveyor platform Extra USD1500.00 |
| 1100型 | FOB NB USD8400.00 |
纠偏机Correction machine Extra USD1600.00; 高架Elevated Extra USD270.00; 输送台conveyor platform Extra USD1600.00 |
| 1200型 | FOB NB USD8900.00 |
纠偏机Correction machine Extra USD1800.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD1800.00 |
| 1300型 | FOB NB USD9800.00 |
纠偏机Correction machine Extra USD2000.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD2000.00 |
| 1400型 | FOB NB USD11300.00 |
纠偏机Correction machine Extra USD2100.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD2100.00 |
| 1500型 | FOB NB USD13000.00 |
纠偏机Correction machine Extra USD2300.00; 高架Elevated Extra USD180.00; 输送台conveyor platform Extra USD2300.00 |
| 技术参数 Technical Specifications | |
| 型号 Model | 600 - 700 - 800 - 900 - 1000 - 1100 - 1200 - 1300 - 1400 - 1500 |
|
制袋成品长度(范围cm) Finished bag length (range in cm) |
55 - 65 - 75 - 85 - 95 - 105 - 115 - 125 - 135 - 145 |
|
制袋成品宽度 (范围cm) Finished bag width (range in cm) |
60—80 |
|
生产速度(范围pcs/minute) Production speed (range pcs/minute) |
20—320 |
|
机器重量(kg) Machine weight (kg) |
1000-1600 |
|
外形尺寸(mm) Dimensions (mm) |
3000×(900-1900)×1800 |
|
总功率(kw) Total power (kw) |
3.4—6.7 |
| 主要性能及特点 Main performance and characteristics |
| 上料部分 Feeding section:: |
|
①放料方式:采用上下双层放料,带弹簧松紧刹车功能. Material feeding method: Adopting double-layer feeding with spring elastic brake function. |
|
| 主机部分 Main section: |
|
①整机独立研发采用PLC,触摸屏电脑,伺服电机系统控制. The whole machine is independently developed using PLC, touch screen computer, and servo motor system control. |
|
|
②色标跟踪,卷膜正反面印刷均可跟踪,简易的设定方式,精准识别定位薄膜上的图形,实时检测,丢标自动停机 Color code tracking, printing on both sides of the roll film can be tracked, with a simple setting method to accurately identify and locate the graphics on the film, real-time detection, and automatic shutdown for label loss |
|
|
③可上自粘胶,与卷材贴合同步传送带动 Can be self-adhesive and synchronously transported with the roll material for driving |
|
⑤热切刀采用合金材质,具有良好的耐磨性和腐蚀性,硬化处理不易变形,特殊配方不易粘料等优势.加热管温度控制系统使得袋口烫合牢固,平整,温度可调整范围:1-4400C The hot cutting knife is made of alloy material, which has good wear resistance and corrosiveness, is not easily deformed by hardening treatment, and has the advantages of special formula that is not easy to stick to materials. The temperature control system of the heating tube ensures that the bag opening is firmly and smoothly pressed, and the temperature can be adjusted within the range of 1-4400C |
|
|
⑥胶辊均有良好的弹性,能在一定程度上缓冲制袋过程中的冲击和震动.耐磨耐用,可长时间承受频繁摩擦和压力,不易磨损和变形.具有良好的防滑性能和外圆平整度 The rubber rollers have good elasticity and can buffer the impact and vibration during the bag making process to a certain extent. Durable and wear-resistant, able to withstand frequent friction and pressure for a long time, not easily worn or deformed. Has good anti slip performance and outer circle flatness |
|
|
⑦打孔器采用进口钢料,高速耐用,最高可达220次/分钟 The puncher is made of imported steel material, which is high-speed and durable, with a maximum of 220 times per minute |
|
| 出料部分Discharge section: |
|
①设备出料采用一出一方式,平板式工作台面,电脑自动计个数,自动计批数,任意定长及可设定任意数报警自动停机停留,停留时间可电脑屏幕设置 The equipment adopts a one out one method for material discharge, with a flat worktable and automatic counting of quantities and batches by the computer. It can be set to any length or any number of alarms and automatically shut down for a certain duration. The dwell time can be set on the computer screen |
|
②静电消除,采用大功率静电消除器,性能稳定,输出可靠,功率恒定,可长时间工作输出.消除袋子外层静电,使得成品袋子出料整齐,平稳的送出.客户在使用袋子过程中不易吸附 Static elimination, using high-power static eliminators, with stable performance, reliable output, constant power, and the ability to work for a long time. Eliminate static electricity on the outer layer of the bag, so that the finished bag can be discharged neatly and smoothly. The customer is not easily adsorbed during the use of the bag |
|
|
③送料皮带采用光滑PU工业皮带,耐高温,不易拉长,防静电.结合制袋速度与袋子大小,自行调整皮带的速度快慢,能够平稳的将袋子从切刀工序输送到出料工作台 The feeding belt adopts smooth PU industrial belt, which is heat-resistant, not easy to stretch, and anti-static. By combining the bag making speed and bag size, the speed of the belt can be adjusted to smoothly transport the bags from the cutting process to the discharge workbench |
|
| 设备标准配置 Equipment standard configuration | |||
| 序号 NUM |
名称 Name |
数量 Quantity |
产地 Original |
| 1. |
伺服电机 servo motor |
1 台 1 unit |
中国·江苏 China · Jiangsu |
| 2. |
交流电机 AC motor |
1 台 1 unit |
中国·上海 China·Shanghai |
| 3. |
送料电机 feeding motor |
2 台 2 units |
中国·浙江(光达) Zhejiang, China (Guangda) |
| 4. |
静电消除 static elimination |
1 台 1 unit |
中国·浙江 Zhejiang, China |
| 5. |
打孔器 punch |
1 台 1 unit |
自研 self-developed |
| 6. |
温控表 Temperature Controller |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 7. |
光电跟踪器 Photoelectric tracker |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 8. |
电器 electrical appliance |
1 台 1 unit |
中国·浙江 Zhejiang, China |
| 9. |
电脑控制器(SCH-11) Computer Controller (SCH-11) |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 10. |
液晶显示屏 LCD (Liquid Crystal Display) |
1个 1 piece |
中国·北京 Beijing, China |
| 11. |
传送皮带 Conveyor belt |
1 台 1 unit |
中国·上海 China·Shanghai |
| 12. |
变频器(F1000-G) Inverter (F1000-G) |
1 台 1 unit |
中国·(华兰) China · (Hualan) |
| 13. |
电磁阀 solenoid valve |
1个 1 piece |
中国·台湾 Taiwan, China |
| 14. |
调速板 speed control board |
2个 2 pieces |
中国·浙江 Zhejiang, China |
| 15. |
传感器 sensor |
2个 2 pieces |
中国·浙江(辉煌) Zhejiang, China (Glorious) |
| 16. |
霍尔开关(HH12D10) Hall switch (HH12D10) |
2个 2 pieces |
中国·浙江(辉煌) Zhejiang, China (Glorious) |
| 17. |
二连体 filter |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 18. |
铁块放料轴 Iron block feeding shaft |
2根 2 pieces |
自研 self-developed |
| 19. |
槽钢(10号) Channel steel (No. 10) |
1 台 1 unit |
自研 self-developed |
| 20. |
驱动器 drive |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 21. |
位移开关 Displacement switch |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 22. |
固态温度控制(1-400C°) Solid state temperature control (1-400C ° C) |
1 台 1 unit |
中国·浙江 Zhejiang, China |
| 23. |
固态 solid state |
1个 1 piece |
中国·浙江 Zhejiang, China |
| 24. |
胶辊 rubber roller |
5根 5 pieces |
自研 self-developed |
| 25. |
工作平台板 Work Platform Board |
1块 1 piece |
自研 self-developed |
| 工厂实拍图 Factory Photo |
|
|
|
| 展会 Exhibition |
| |
| |
| |
| |
订购事项Business Terms
一,交货期:收到30%预付款后30-45天内交货；
1. Delivery Time:
Within 30-45 days after the receipt of 30% advance payment.
二,付款方式:预付定金30%开始生产设备(合同签订后 2 个工作日内乙方向甲方支付该款项)
结清尾款70%发货前付清(约定时间设备已制造完毕,且经双方初步确定验收合格)
2. Payment Terms:
30% advance payment before production (to be paid within 2 workings days after signing the contract)
70% balance before delivery from Ruitai Factory (Machine finished production & after the approval of Buyer)
三,发货标准:甲方设备的包装要符合规定,且适合长途运输,多次搬运和装卸,并有减振,防冲击的措
施.包装应按设备特点,按需要分别加上防潮,防霉,防锈,防腐蚀的保护措施,以保证货物安全运抵合同指定的地方.
3. Delivery Standard:
Ruitai’s delivery packaging should comply with regulations, suitable for long-distance transportation, multiple handling and loading/unloading, and have measures to reduce vibration and prevent impact. The packaging should be equipped with needed moisture-proof, anti-mold, anti-rust and anit-corrosion protection measures according to the characteristics of the equipment, to ensure the safe delivery of machine to the designated place.
四,安装调试:应根据买方的指示派遣安装调试人员(工资150美元/天, 但买方需及时提供正式的邀请函,以便安装调试人员及时申请签证. 在调试期间和保修期间,买方承担调试人员的往返机票,并且承担调试人员在当地的食宿交通等费用,并且要保证调试人员在当地的人身安全. 设备调试完成后, 买方出具设备合格证书, 卖方调试人员方可回中国.
4. Installation & Commission:
Ruitai will despatch engineers (Salary USD 150.00 per day) as per the Buyer's instructions, but the Buyer should provide Formal Invitation Letter for the Seller's engineer to apply for visa. For expenses occurring during the installation period and warranty period, the Seller should cover the round air tickets, and all the charges (such as food, hotels and transportation) during their stay, also need to make sure their safety. After completion, the Buyer will give the test report for equipment, and then engineers can be back to China.
